Left Sidepipe
Vehicle Body
Screw Pegs
Rear of Vehicle
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle’s unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children
should not handle parts, including the
battery, or help in assembly of the vehicle.
WARNING

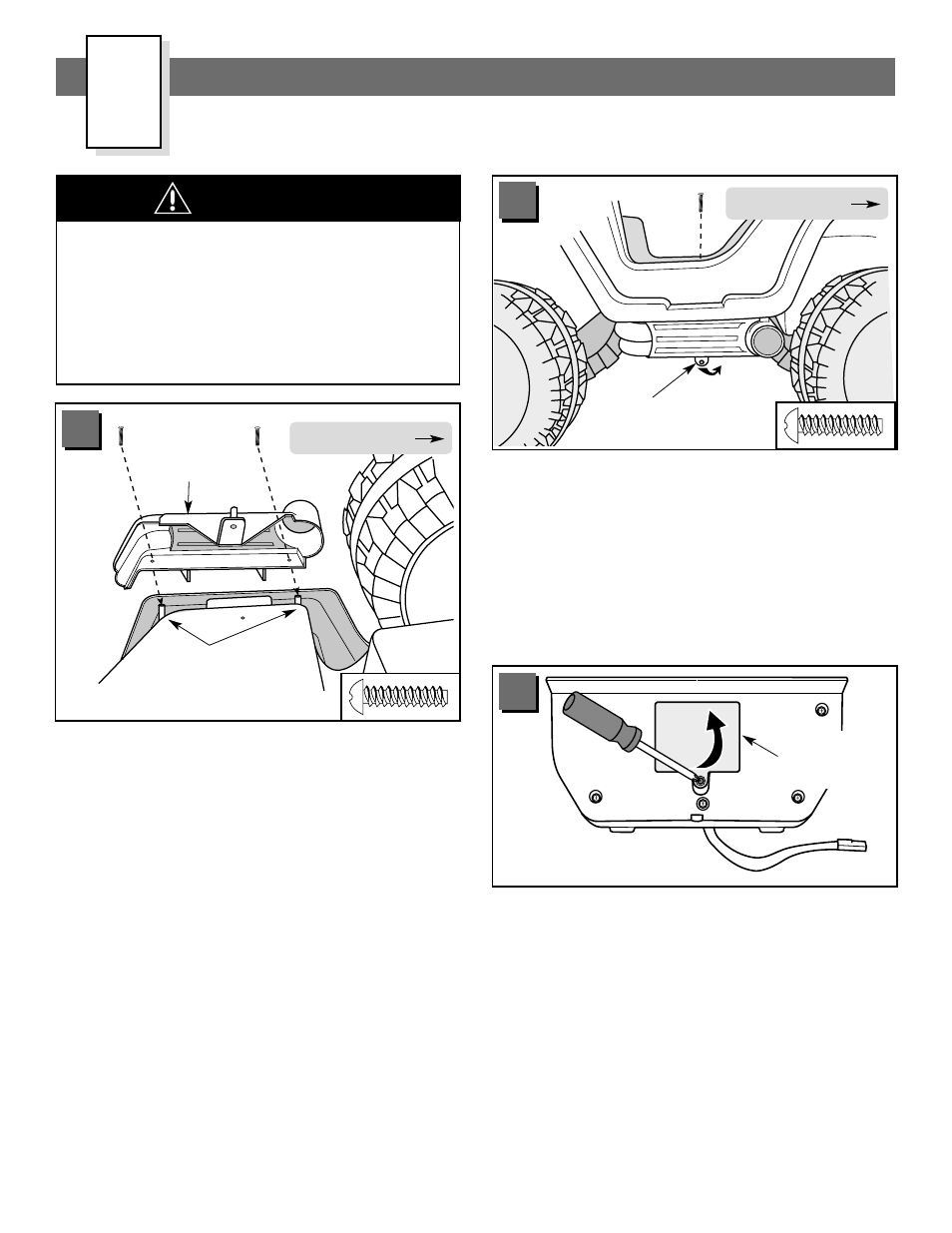

Assembly
F
1
• Turn the vehicle body upside down.
• Fit the left sidepipe under the left (driver) side of the
vehicle body.
• Insert two #8 x 3 / 4 " screws through the top of the left
sidepipe and into the screw pegs on the underside of
the vehicle body.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to assemble the right sidepipe to
the right side of the vehicle body.
Tab
Rear of Vehicle
• Remove the sound and light unit from the dash.
• Locate the battery compartment door on the back of
the unit.
• Loosen the screw in the battery compartment door using
a Phillips screwdriver and lift to open.
Battery
Compartment
Door
3
2
• Turn the vehicle body upright.
• Gently bend the tab on one of the sidepipes under the
vehicle body.
• Insert a #8 x 3 / 4 " screw through the hole in the vehicle
body floor and into the tab.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to fasten the other sidepipe on the
other side of the vehicle body.
