16

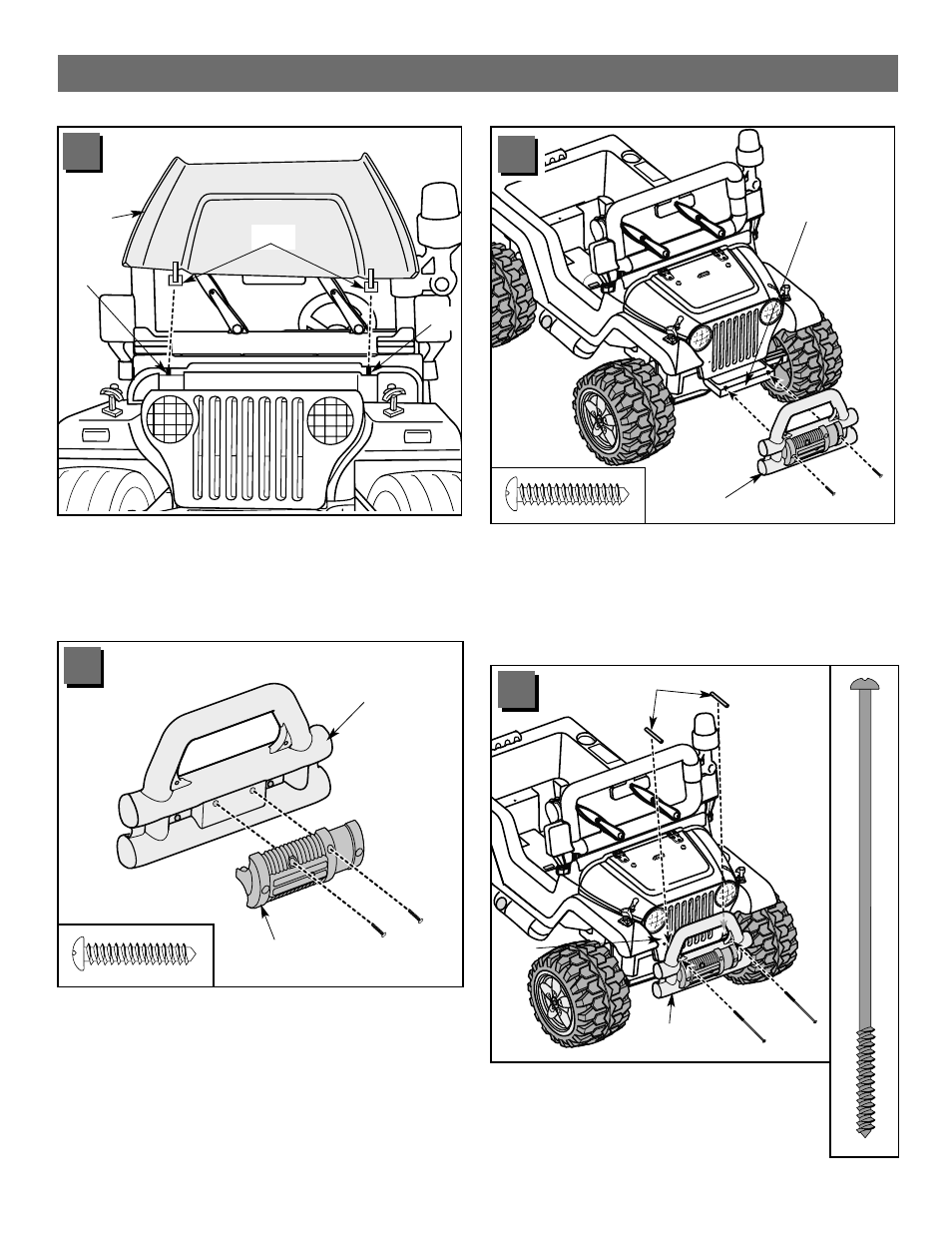

Assembly
Hood
Tabs
• Position the hood over the front of the vehicle body
as shown.
• Insert the tabs on the hood into the slots in the
vehicle body.
• Close the hood.
Slot
Slot
24
Brush Guard
Winch
25
• Fit the winch against the brush guard.
• Insert two #10 x 1" screws through the winch and into
the brush guard.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Brush Guard Assembly
Front Bumper
26
• Fit and hold the brush guard assembly against the
front bumper.
• Insert two #10 x 1" screws through the front of the brush
guard assembly and into the front bumper.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Spacers
Brush Guard
Assembly
Grille
27
• Fit two spacers between the grille and the
back of the brush guard assembly, as shown.
• Insert two #8 x 4" screws through the brush
guard assembly, the spacers and into the
holes in the grille.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
