To Clean the Filter Plate

·

Ensure the DishDrawer is cool before you start

cleaning.

·

Remove the drain filter and spray arm (see

previous instructions for their removal).

·

In the center of the filter plate, there are two rings.

Hold the center ring still and turn the outer ring

counter clockwise, about a

1

/

8

turn. This will

release the filter plate.

·

When cleaning the underside of the filter plate,
care must be taken on the sharp outer edge to

avoid the risk of cut type injuries.

·

Remove any soil, wash in hot soapy water and

rinse thoroughly in clean water. The heater plate

can be wiped with a damp cloth.

·

Replace the filter plate so that it lies flat with the

base of the DishDrawer ensuring the filter plate is

fully locked into position with the outer ring. To

lock the filter plate into position, ensure the

triangles ( ) align with each other (see

Figure 22 for the correct position). The filter plate

must not be able to move about freely.

To Clean the Motor Assembly

This area only needs to be cleaned under certain fault

conditions. The fault code will appear on the

secondary control panel and when you refer to the

section on Fault Code Displays, it will explain under

which conditions to clean the motor assembly.

·

Follow the above instructions for the removal of

the drain filter, spray arm and filter plate.

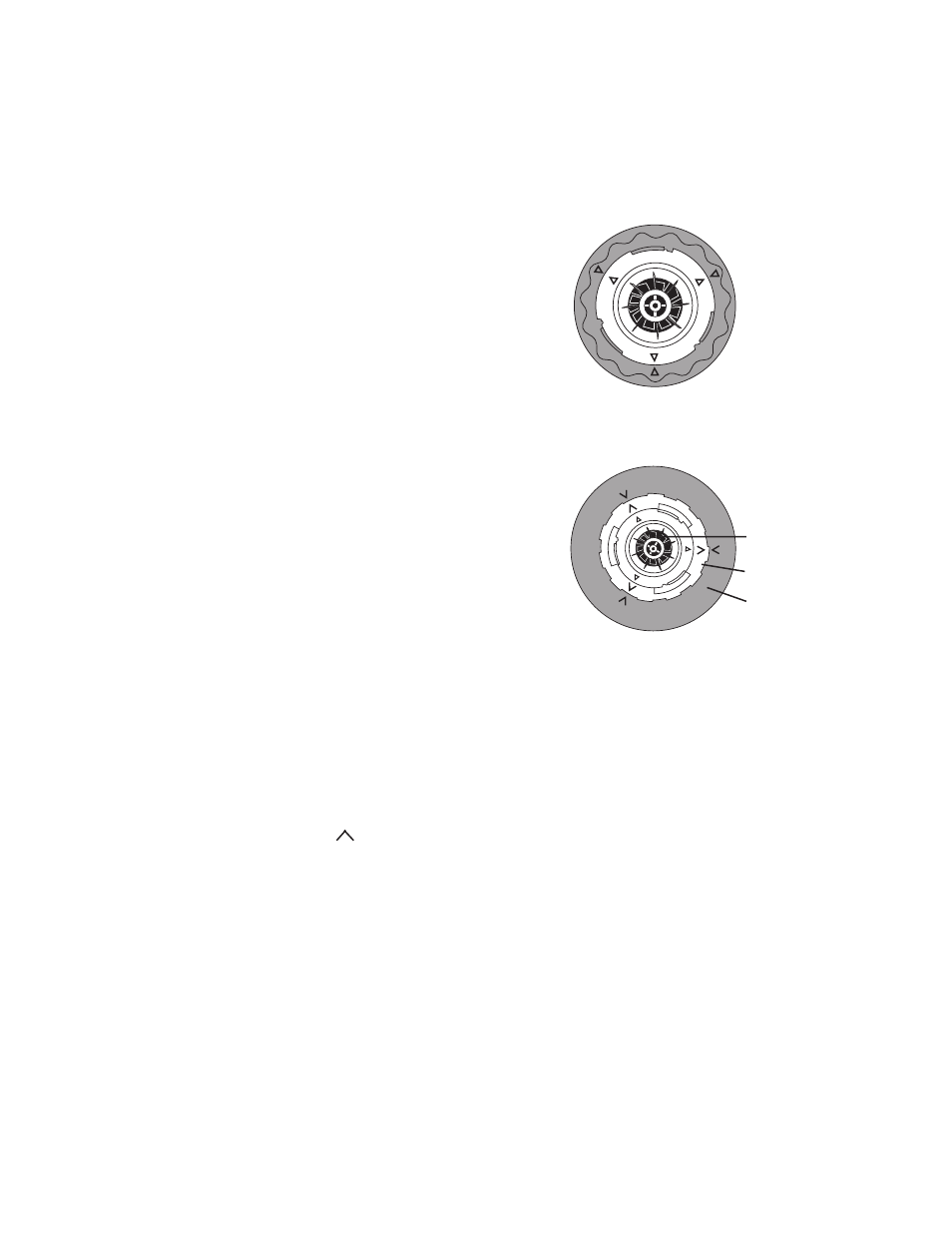

Figure 23 -

Motor Assembly

Key

1. Impeller

2. Rotor Locking Ring

3. Heater Plate

Figure 22 - Correct

Locking Position of Filter

Plate with Motor

Assembly

1.

2.

3.

s

·

Turn the rotor-locking ring counter clockwise and lift out. Once the motor

assembly is lifted up, check the cavity for any foreign matter like bones or seeds

and remove.

·

Replace the motor assembly back into the small cavity in the DishDrawer.

Turn the motor assembly clockwise about

1

/

8

of a turn to lock into position.

The arrows ( ) on the rotor locking ring and the motor housing must align

with each other (see Figure 23). The motor assembly should not be able to be

lifted up freely. Carefully replace all the other parts back into the DishDrawer.

Note: The DishDrawer must be used with the motor assembly, filter plate,

drain filter and spray arm correctly in place.

Vacation Time

If the DishDrawer is not going to be used for some time, we recommend you:

·

Ensure the baskets are empty.

·

Leave the inside of the DishDrawer clean.

·

Leave the drawers ajar to allow air to circulate.

·

Turn off both the electricity and water supply to the DishDrawer.
