Chapter 6
Setting Up the Fibre Channel Switches
Perform the settings required to connect the ETERNUS DX Disk storage systems and server via the Fibre Chan-
nel switch, according to "ETERNUS DX Disk storage systems User's Guide -Server Connection- (Fibre Channel)
Fibre Channel Switch Settings".
If the access path is set with ETERNUS SF Storage Cruiser, the Host Response settings are set to the default
values.
If the Host Response settings are changed from the default values, set the Host Response again.
The following examples show configurations in which a server is connected to a Fibre Channel switch with
zoning.

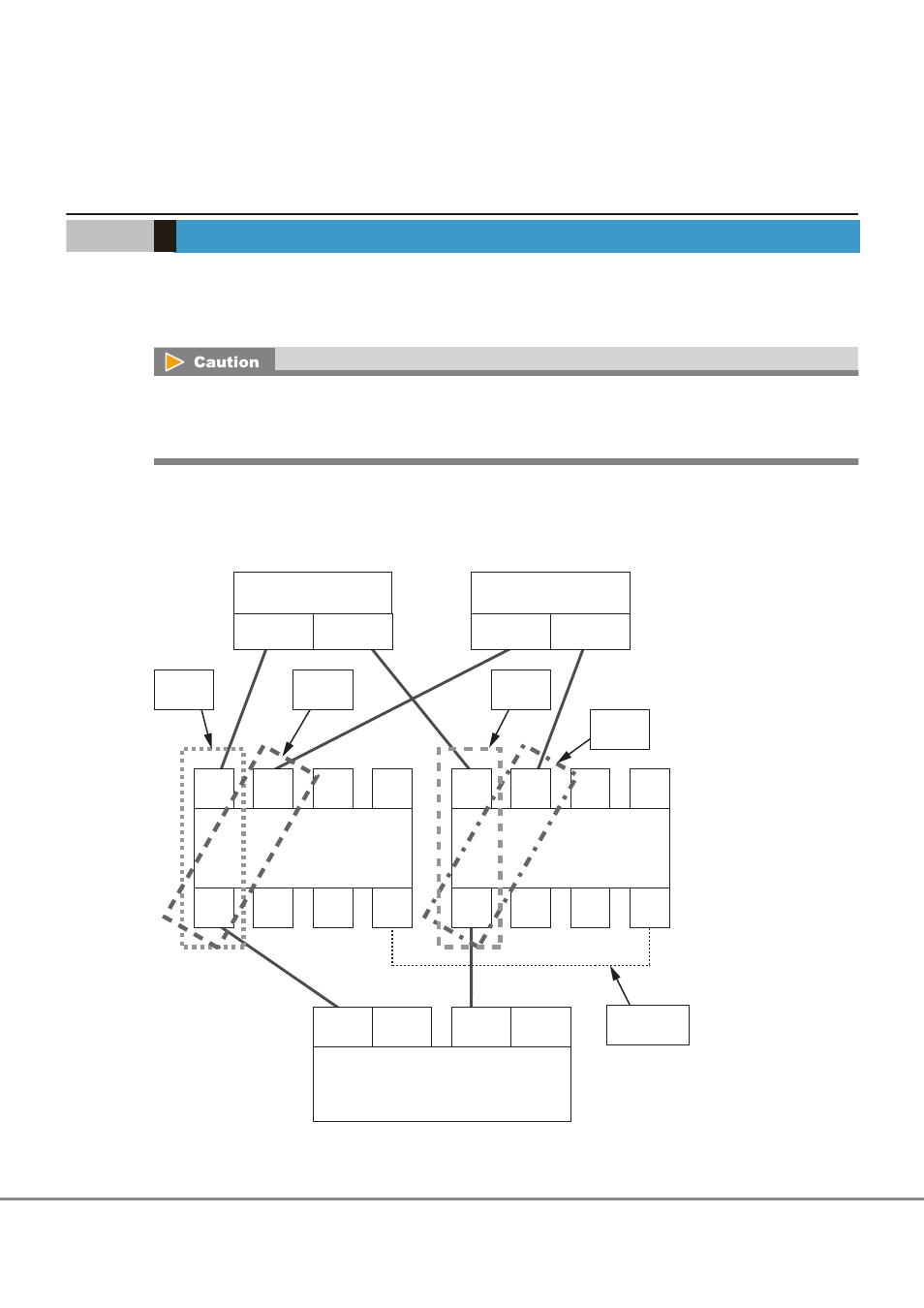

The following example shows a configuration in which multiple servers are connected to multiple CAs.
Port2 Port0 Port6 Port4
Port3 Port1 Port7 Port5
Port2 Port0 Port6 Port4
Port3 Port1 Port7 Port5
CA00 CA01 CA10 CA11
CM0 CM1
Name : RAID#1
ZONE1 ZONE2 ZONE3
ZONE4
ETERNUS DX Disk storage system
Name : Server#1
Slot 1 Slot 0
Name : Server#2
Slot 1 Slot 0
Cascading
line
FC switch FC switch
22
