HP PHOTOSMART PLUS B209 User Manual
Page 19

1
Lid
2
Color graphics display (also referred to as the display)
3
Photo tray
4
Memory Card slots LED
5
Memory Card slot for Secure Digital and XD cards
6
Memory Card slot for Memory Stick cards
7
Front USB port for your PictBridge-compatible digital camera, other storage devices, and
external Bluetooth adapter.
8
Output tray
9
Paper tray extender (also referred to as the tray extender)
10 Paper-width guide for the photo tray
11 Cartridge door access handle
12 Lid backing
13 Glass
14 On button: Turns the product on or off. When the product is off, a minimal amount of
power is still used. To completely remove power, turn off the product, and then unplug
the power cord.
15 Wireless LED
16 Paper-width guide for the main tray
17 Main tray (also referred to as the input tray)
18 Cartridge door
•

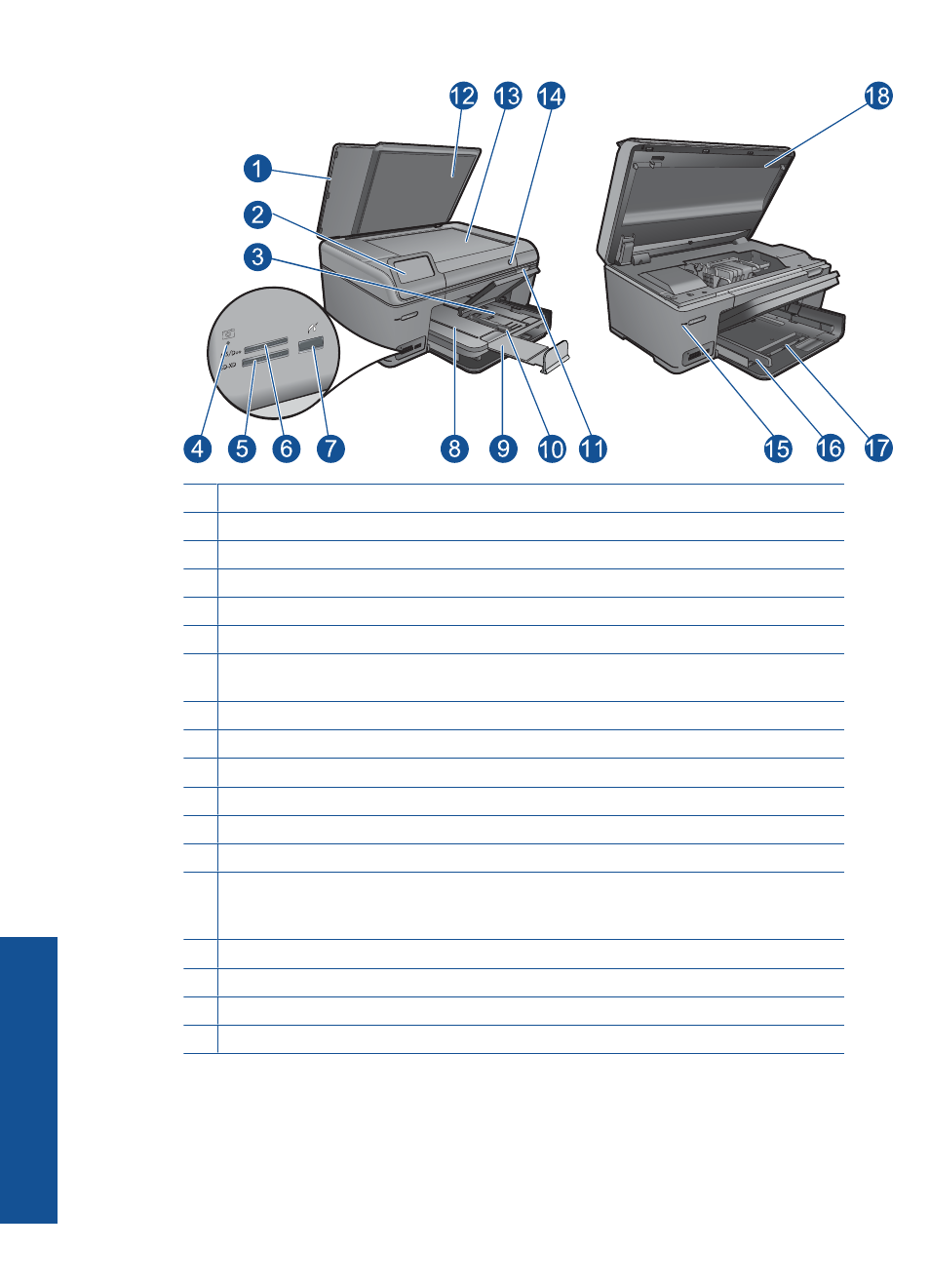

Top and rear views of the HP Photosmart
Chapter 3
16
Get to know the HP Photosmart
