-- 598-1313-00
F
T
R
10. Connect wire “F” to screw terminal marked “FRONT”. Connect
wire “T” to screw terminal marked “TRANS”. Connect wire
“R” to screw terminal marked “REAR” (See Figure 3).
Note:
Some installations may not include rear door push button.
11. Connect diode to front push button (see page 5).
12. Press the “TEST” button to verify the transformer is connected
properly and to listen to the selected front door tune.
13. Hang cover on cover pin.
Note: Never use cleaners or polishes. Never use any fluids on the
electronic chime mechanism. Use dry cloth to clean chime cover
and base.
tunE sElECtion (FRont DooR)
to select a tune to play Each time the push
Button is pressed:
1. Turn or slide the tune selection switch (depending upon model)
to select a tune.
2. Press the “TEST” button to hear the selected tune.
3. Adjust the “VOLUME” knob to the desired volume level.

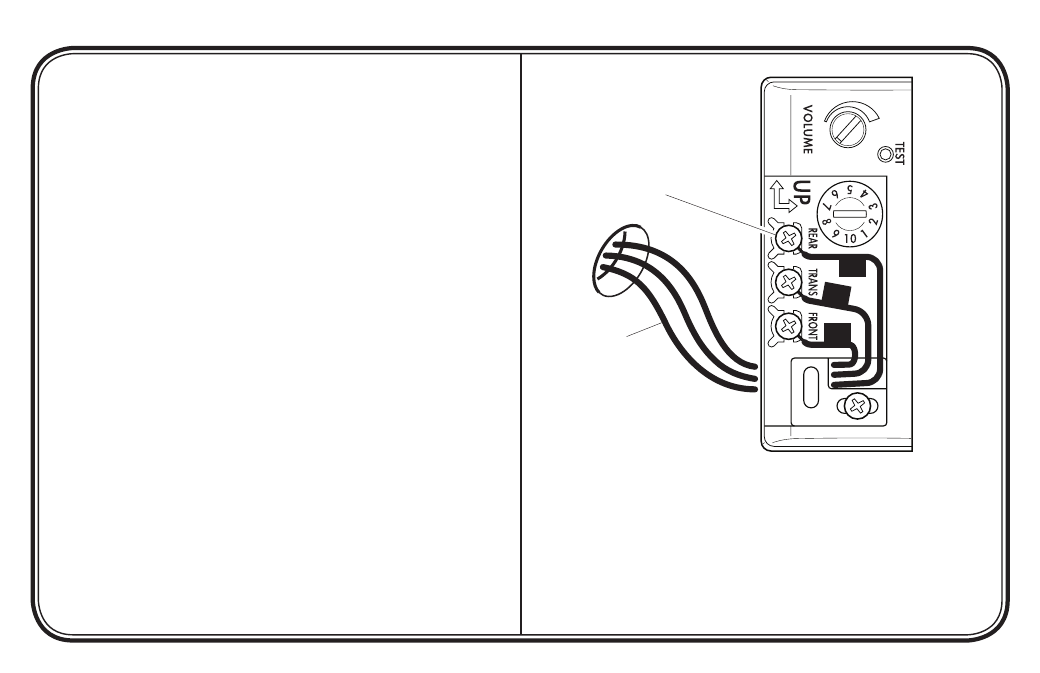

Figure 3 - Electronic Chime Wiring
(2300 Base Shown)
Existing Chime
Wires from Wall
Replacement
Chime Base
Rear Door Push Button
(if Applicable)
