Heath Zenith Hardwired Electronic Chime 598-1313-00 User Manual
Page 3
-3-
598-1313-00
8. Determine mounting location.
Note: The back of the chime
base is recessed to allow the base to cover the wire hole in the
wall when mounting the base to the wall.
9. Mount chime base to wall using screws and anchors provided (see
Figure 2). (Drill 7/32" diameter pilot hole for wall anchors.)
• Mount keyhole screw to wall leaving about 1/8" (3 mm) of
the screw threads exposed.
Note: Keyhole slot is located
about 3/4" (19 mm) from top of chime.
• Route wires through wire entrance hole in new chime base.
• Using keyhole on back of chime base, hang base on screw.
• Level chime base.
• Using the slots located in the bottom of the wire entrance
hole, insert second screw through whichever slot is horizontal
and attach to wall and tighten.
Continued
Existing Chime
Wires from Wall
Wire
Entrance
Hole
Cover Pin
Installed
Correctly
Keyhole Slot
Back of
Chime Base
Keyhole
Screw

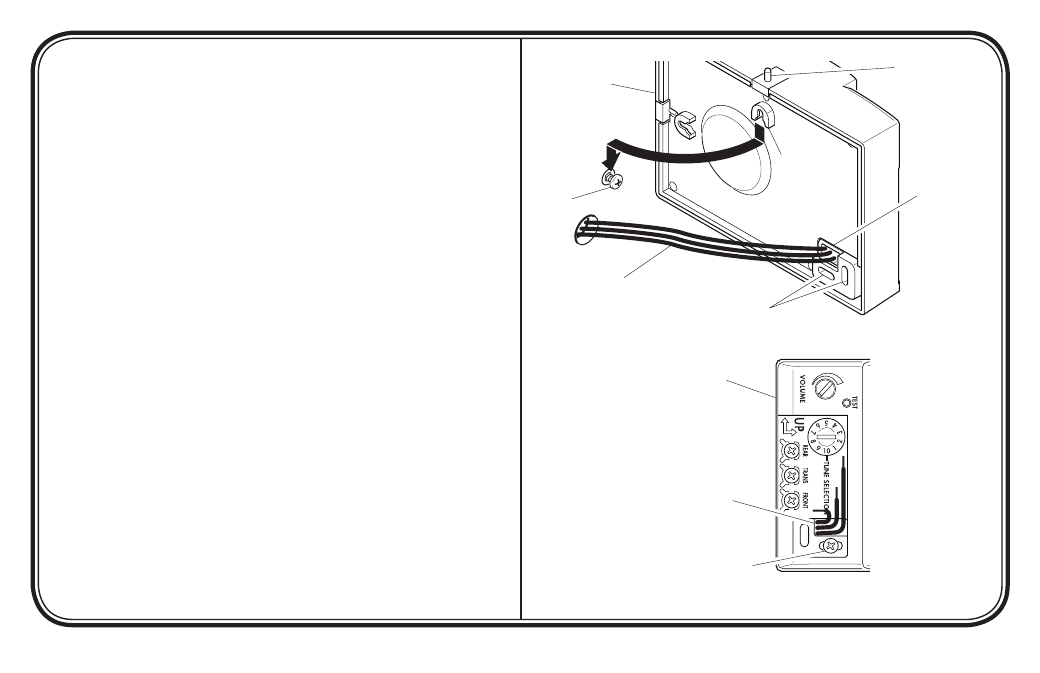

Figure 2 - Mounting Chime Base to Wall
Wire Entrance Hole
Mounting Screw
Front of Chime
Base
Mounting
Screw Slots
