INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE YOU
BEGIN
TREADMILL OPERA
TION
CONDITIONING GUIDELINES
TROUBLESHOOTING &
MAINTENANCE
LIMITED WARRANTY

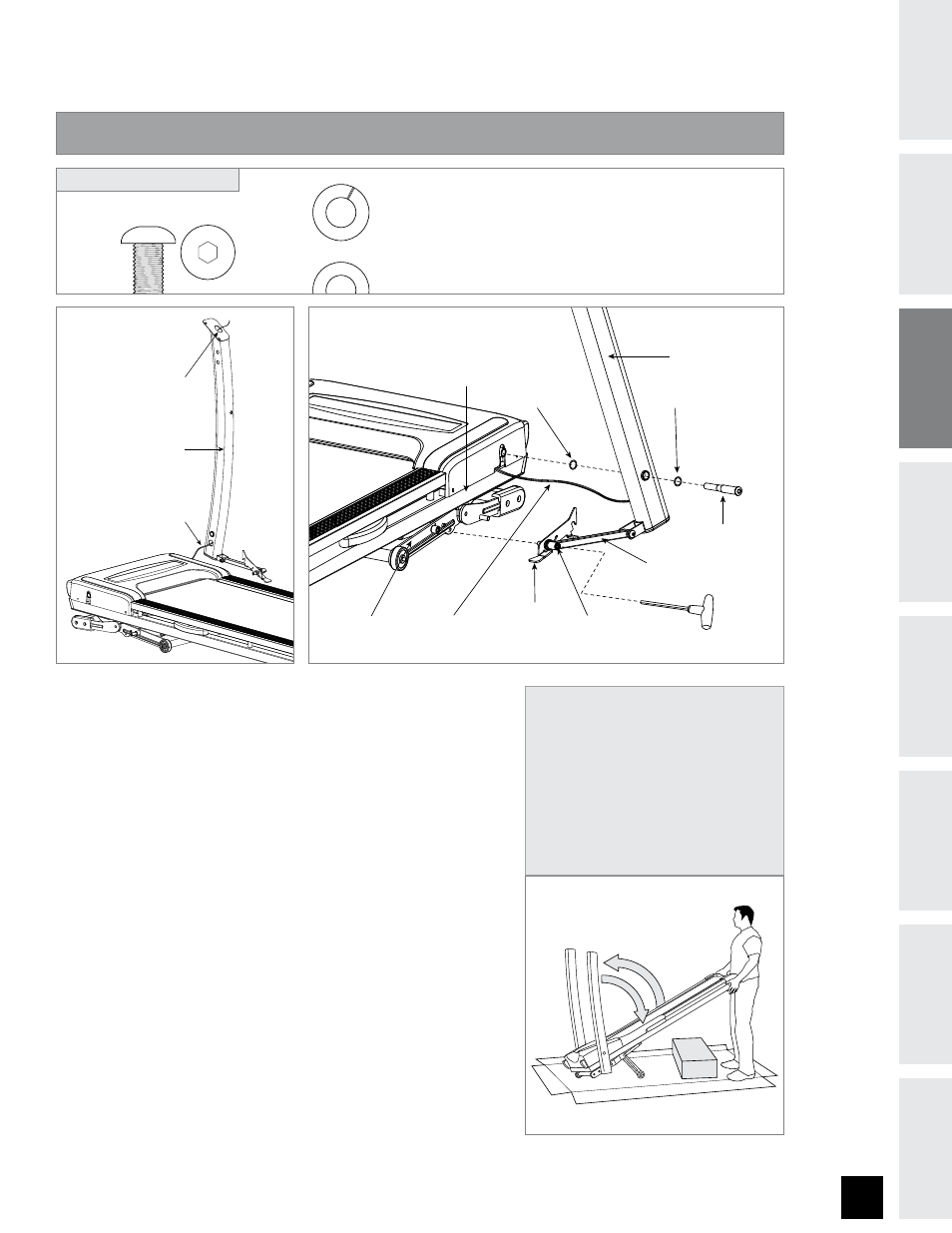

ASSEMBLY STEP 2
ELEVATION FRAME
BOLT (D)
RIGHT LINKAGE ARM
FLAT WASHER (E)
MAIN FRAME
RIGHT CONSOLE MAST
CONSOLE CABLES PRE-ATTACHED BOLT
WAVY WASHER (F)
FOOT LOCK LATCH
#0-5 #
NN
2UZ
UPQWJFX
BOHMFWJFX
-0$,8"4)&3 $
2UZ
"3$8"4)&3 %
2UZ
HARDWARE BAG 2 CONTENTS :
RIGHT CONSOLE MAST
LEAD WIRE
CONSOLE CABLES
Pull LEAD WIRE through RIGHT CONSOLE MAST. After
pulling the LEAD WIRE through the mast, the top of the
CONSOLE CABLES should be located at the top of the
mast. Detach and discard LEAD WIRE.
Open HARDWARE BAG 2.
Move RIGHT LINKAGE ARM into position and attach to
ELEVATION FRAME.
NOTE: While holding RIGHT CONSOLE MAST in the
upright position, tighten PRE-ATTACHED BOLT using
T-wrench to attach RIGHT LINKAGE ARM.
Attach RIGHT CONSOLE MAST to MAIN FRAME using 1
BOLT (D), 1 FLAT WASHER (E) and 1 WAVY WASHER (F).
Lift the RUNNING DECK until lock latch on side of
treadmill is fully engaged.
Remove CONSOLE from box and place out of the way.
Lower the treadmill RUNNING DECK from the folded
position by stepping on LOCK LATCH on lower right side.
A.
B.
C.
D.
E.
F.
G.
1
3
2
NOTE: If you have attempted to
move the treadmill from the box
and the machine has sprung
open and cannot be assembled,
refer to the troubleshooting
section in order to restore the
treadmill to its proper position. *
