8
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE
YOU
BEGIN
TREADMILL OPERA
TION
LIMITED
W
ARRANTY
TROUBLESHOOTING
&
MAINTENANCE
CONDITIONING
GUIDELINES
PRE-ASSEMBLY

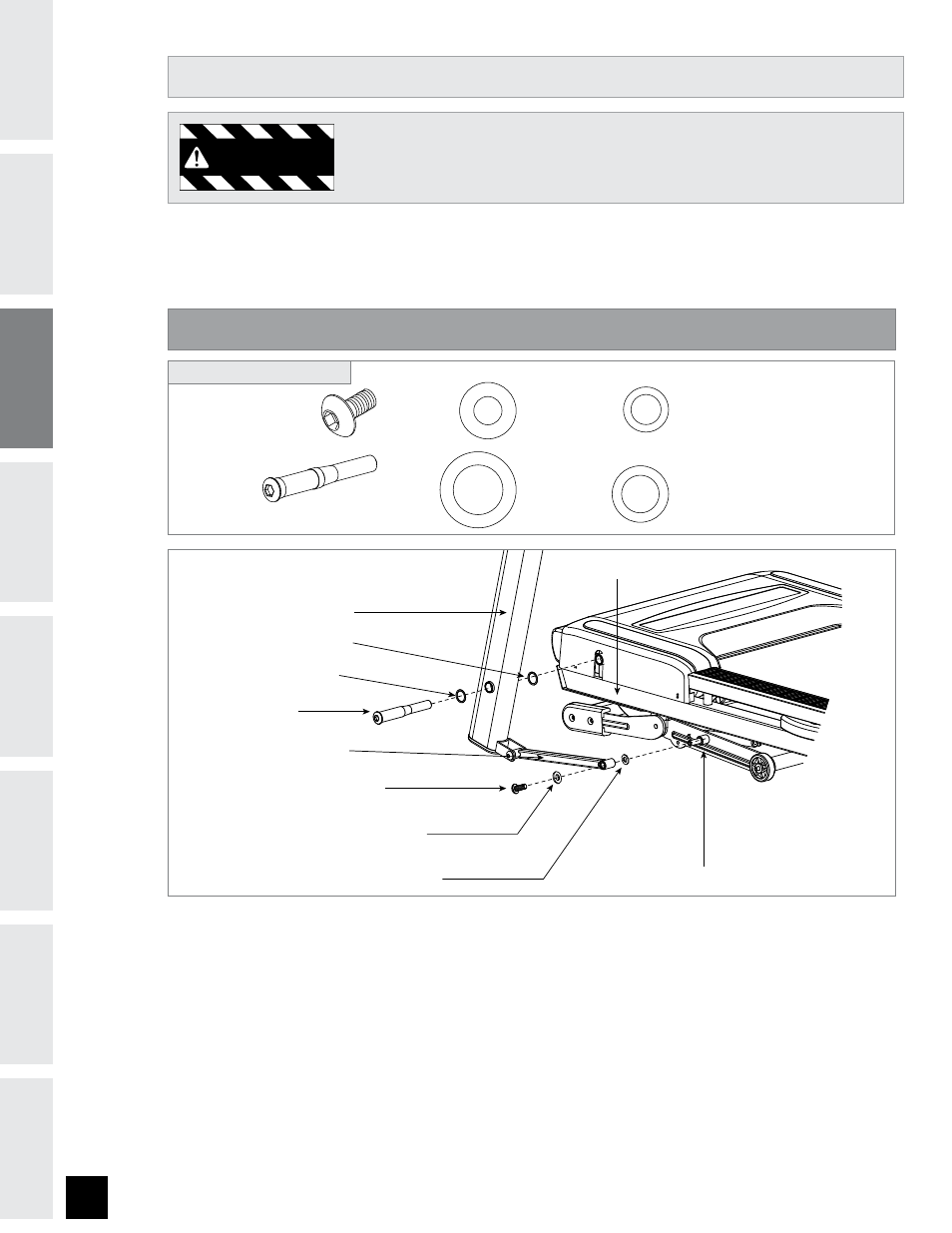

ASSEMBLY STEP 1
FLAT WASHER (B)
20 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
BOLT (D)
Qty: 1
BOLT (A)
15 mm
Qty: 1
TEFLON WASHER (C)
18 mm
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
HARDWARE BAG 1 CONTENTS :
TEFLON WASHER (C) ELEVATION FRAME
FLAT WASHER (B)
BOLT (A)
WAVY WASHER (F)
FLAT WASHER (E)
LEFT CONSOLE MAST
BOLT (D)
MAIN FRAME
LEFT LINKAGE ARM
A Open HARDWARE BAG 1.
B Cut banding straps. Do not move or lift treadmill from packaging.
C Move LEFT LINKAGE ARM into position. Insert BOLT (A) and FLAT WASHER (B) into LEFT
LINKAGE ARM followed by a TEFLON WASHER (C) and attach to ELEVATION FRAME.
D Lift LEFT CONSOLE MAST into upright position. Be sure to hold the console mast firmly, as
it will not stay in the upright position on its own.
E Insert BOLT (D) and 1 FLAT WASHER (E) through LEFT CONSOLE MAST followed by a
WAVY WASHER (F) and attach to MAIN FRAME.
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. Failure to do
so may result in injury! Remove plastic wrap from console masts.
NOTE:
During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
WARNING
