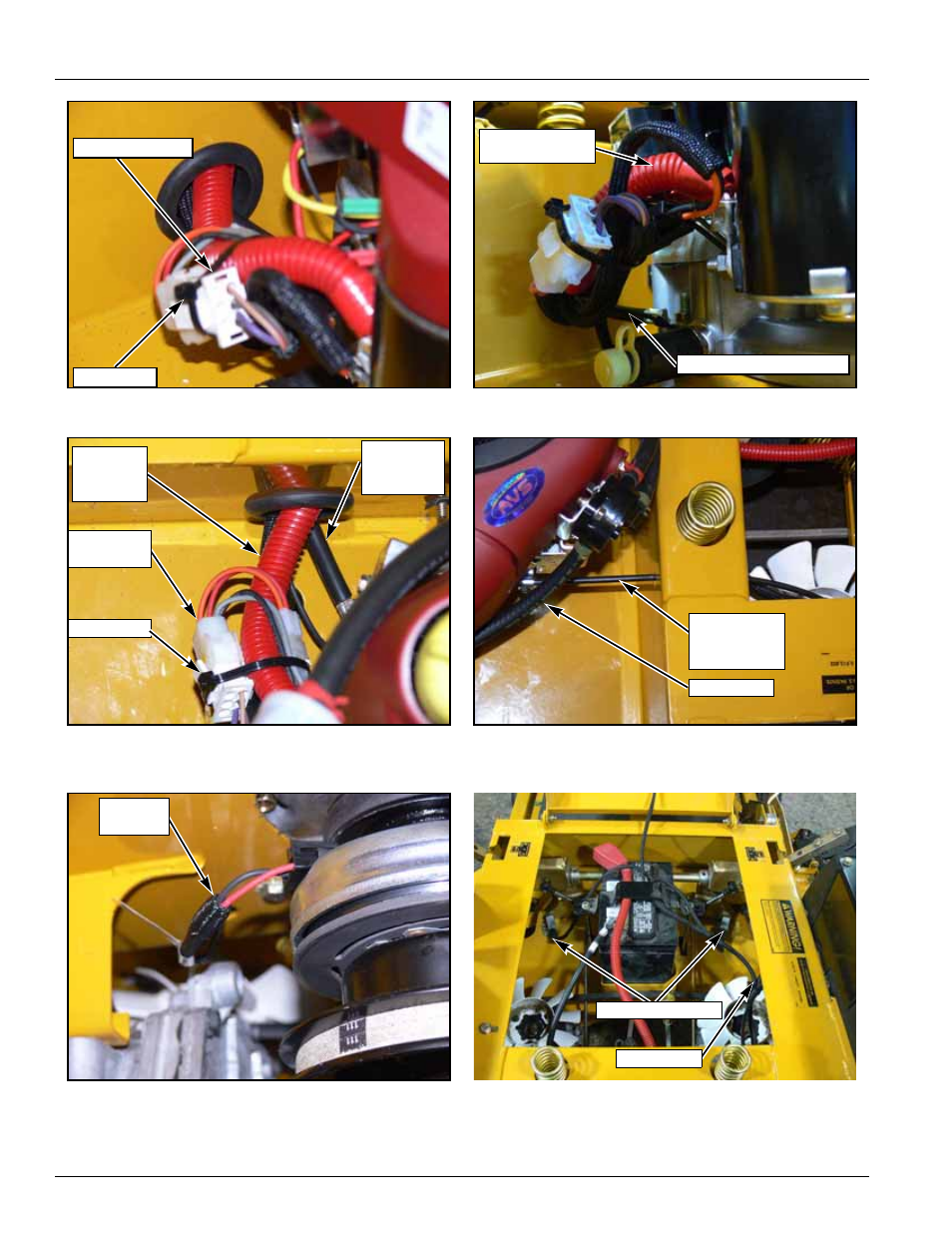

Route battery cables and wireharness (from seat and safety switches) through hole in the left side of frame (FIG. 5).
Wire harness, battery cable, and throttle/choke cable, routing and tie straps (FIG. 7 & FIG. 8) .
Clutch pigtail to clutch anchor tie strap (FIG. 9).
Safety switches and tie straps (FIG. 10)
FIG. 5 FIG. 6
FIG. 7 FIG. 8
FIG. 9 FIG. 10
WIREHARNESS
TIE STRAP
NEG. BATTERY CABLE
POS. BATTERY
CABLE
POSITIVE
BATTERY
TIE STRAP
NEGATIVE
BATTERY
CABLE
CABLE
WIRE
HARNESS
THROTTLE/
CHOKE
FUEL LINE
CABLE
CLUTCH
PIGTAIL
TIE STRAP
SAFETY SWITCH
