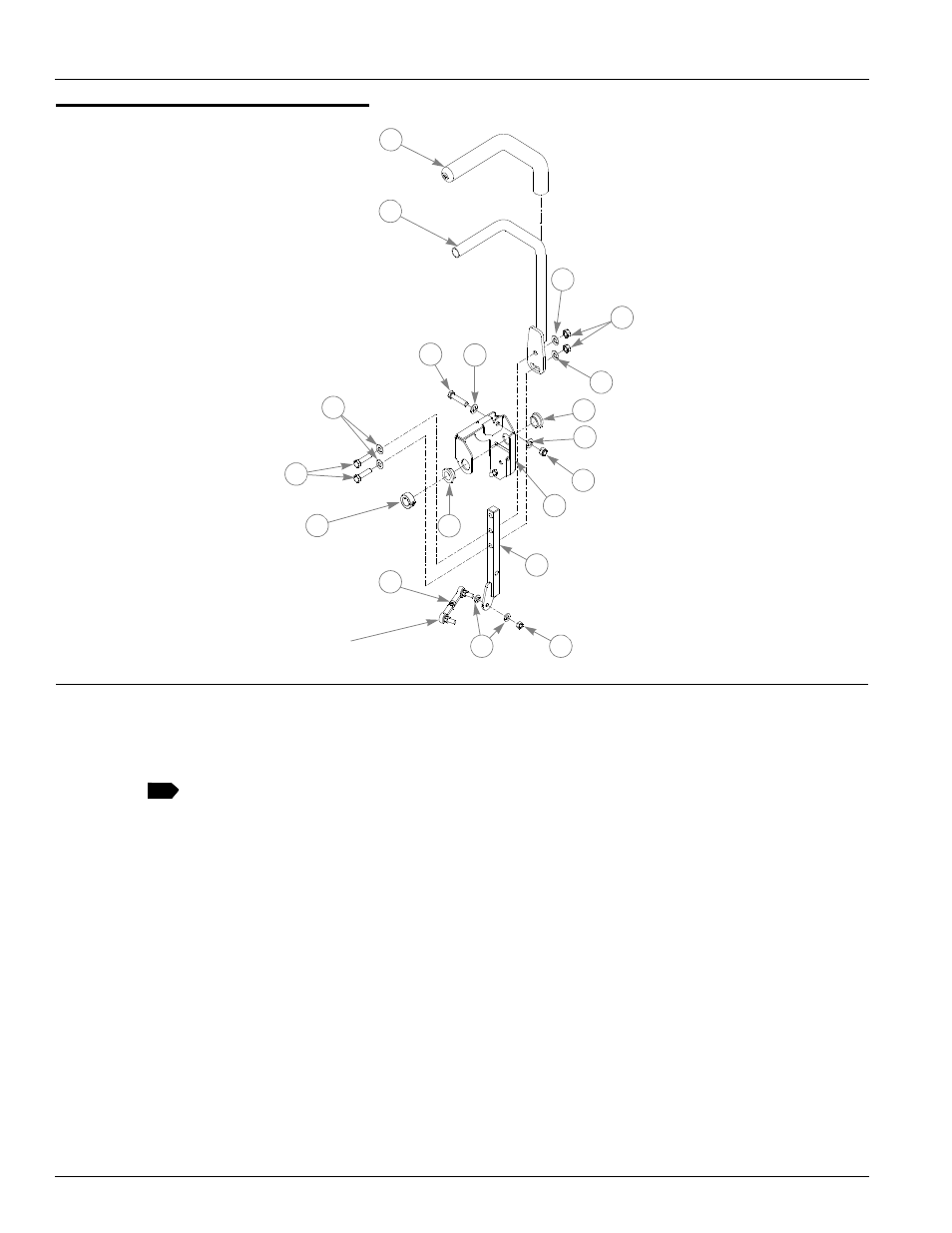

Steering Sub-Assembly
NOTES:
1. Includes Item 1 (781260 Steering Bar Grip).
ITEM NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 781260 781260 2 GRIP, STEERING BAR
2 110370 110370 2 STEERING BAR W/A
3 705178 705178 2 CS .375-16X1.750 HX G5
4 767954 767954 2 FW .406X .812 X.060 SAE
5 054502 054502 4 NT .375-16 HX GRD 5 ZNY
6 770867 770867 4 BUSHING, PLAS .750X1(FS)
7 086660 086660 2 NT .375-16 HXZY NL
8 080655 080655 4 CS .375-16X1.500 HX G5
9 784439 784439 2 LOCK COLLAR,0.757 ID(FS)
10 110008 110008 1 STEERING BOX LH (PLATED)
110007 110007 1 STEERING BOX RH (PLATED)
11 796615 796615 2 BALL JOINT LINK MINI FS
12 023655 023655 2 NT .312-24 HXZY NL
13 110089 110089 2 CONTROL LEVER W/A
14 768523 768523 4 FW .343X.687X.051/.080H
2
4
9
4
11
5
12
8
6
1
4
CONNECTS TO
PARK BRAKE
LINKAGE
10
3
6
7
4
14
13
4
1
