Harmar Mobility AL010 - Manual (Page 18)

AL050 Micro Power Chair Lift
+
KEYSWITCH
ACTUATOR
12V
POLE REVERSING
SWITCH
BATTERY
TRAILER PLUG MOTOR COVER
LIGHT
CIRCUIT
BREAKER
VEHICLE HARNESS
1 TOGGLE SWITCH ALA12010
2 KEY SWITCH ALA12015
3 MOTOR COVER ALA12050
4 ACTUATOR ALA10010
5 OUTER TUBE ALA0303
6 INNER TUBE ALA0300
7 HITCH POST ALA129
8 CLASS 2 HITCH ADAPTER AL126
9 CLASS 3 HITCH ADAPTER ALA123
10 PLATFORM - AL050 ALA0312
11 STRAP ASSY ALA69073
12 PLATFORM ANGLE TUBE H05010

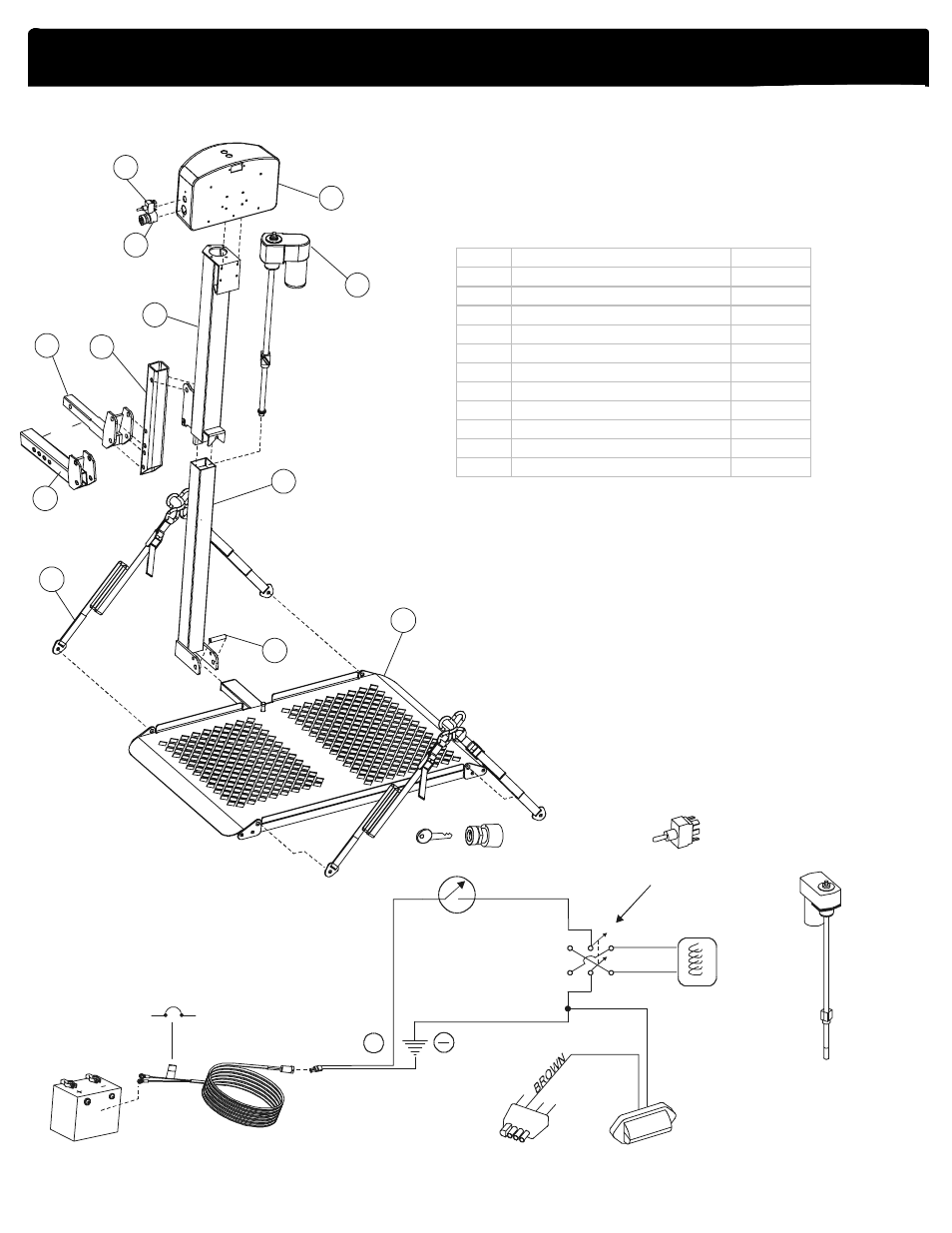

AL050 - MICRO POWER CHAIR LIFT
1
2
5
7 8
6
3
4
9
11
10
12
OR
