Harmar Mobility AL010 - Manual (Page 17)

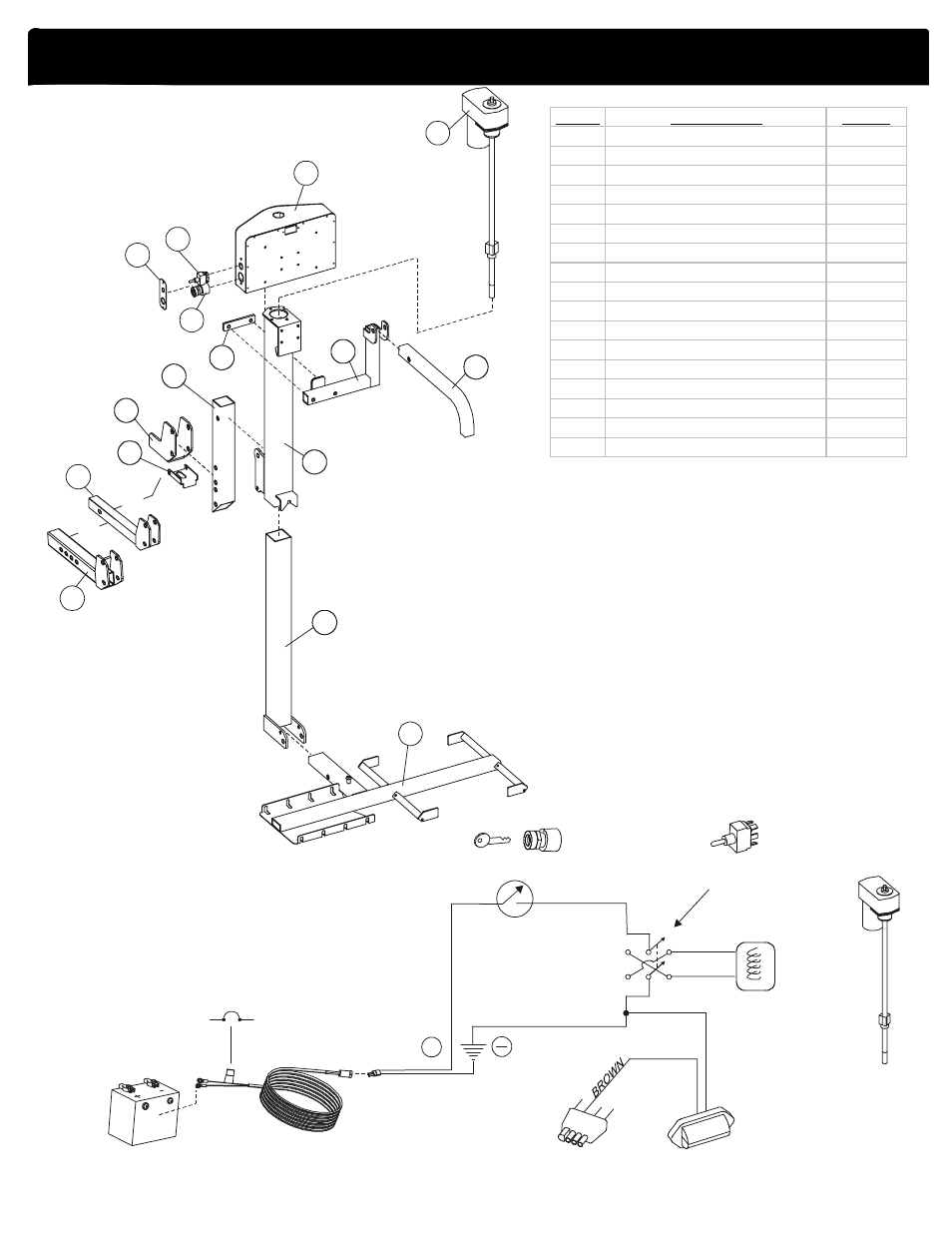

AL030 Power Tote
16
15
14
+
KEYSWITCH
ACTUATOR
12V
POLE REVERSING
SWITCH
BATTERY
TRAILER PLUG MOTOR COVER
LIGHT
CIRCUIT
BREAKER
VEHICLE HARNESS
ITEM # DESCRIPTION PART #
1 SWITCH PLATE ALA12055
2 TOGGLE SWITCH ALA12010
3 KEY SWITCH ALA12015
4 MOTOR COVER ALA12050
5 ACTUATOR ALA10010
6 OUTER TUBE - AL030 ALA0303
7 HOLD DOWN ARM - AL030 ALA0305
8 HOLD DOWN ARM MOUNT ALA0307
9 HOLD DOWN ARM BACK PLATE ALA03020
10 INNER TUBE AL010 / AL030 ALA0300
11 HITCH POST ALA129
12 CLASS 1 HITCH ADAPTER ALA01090
13 CLASS 1 STABILIZER ALA01097
14 CLASS 2 HITCH ADAPTER AL126
15 CLASS 3 HITCH ADAPTER ALA123
16 PLATFORM - AL030 ALA0312
OR
OR
1
2
3
4
5
6
7
8
9
10
11
12
13
