Heat & Glo LifeStyle Collection • Twilight-II • 2087-900 Rev. G • 12/05 7

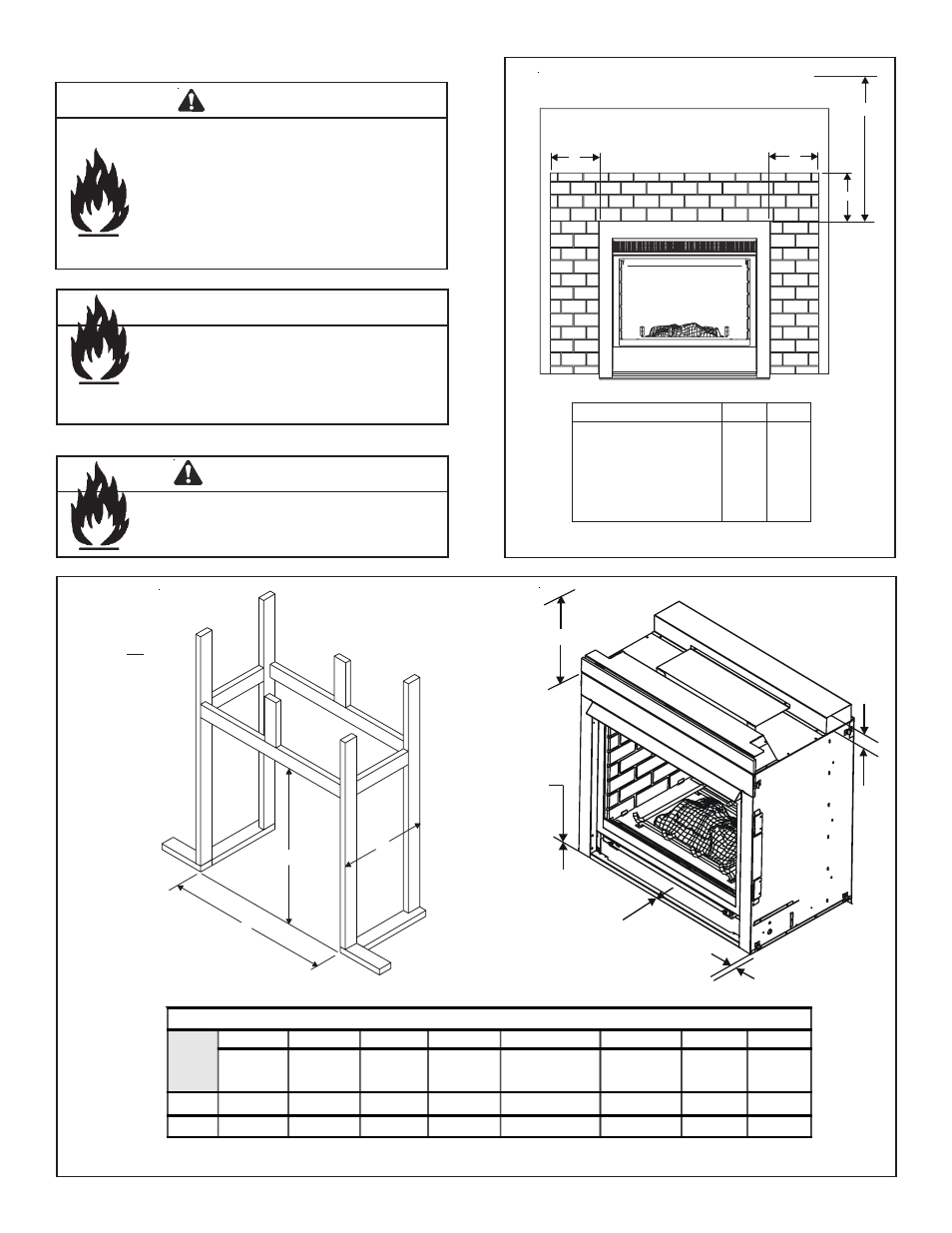

B. Clearances
Figure 3.3 Clearances to Combustibles
Fire Risk.
•
Locate and install appliance to all
clearance specifications in manual
WARNING
Fire Risk.
Odor Risk.
•
Install appliance on hard metal or wood
surfaces extending full width and depth of
appliance.
• Do NOT install appliance directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
Fire Risk.
Do not install appliance against vapor
barriers or exposed insulation.
• Prevent contact with sagging or loose
insulation.
WARNING
C
A
B
Note: Framing dimensions as-
sume use of 1/2 inch thick
wall covering materials
on exterior of framing
only, and NO sheet-
rock on interior of
framing.
F
H
G
E
D
From top of appliance
to ceiling (interior) or
overhang (exterior).
Figure 3.2 Exterior View - Minimum Clearances
A B
Vinyl Siding 36 in. -
Non-vinyl Siding 12 in. -
Vinyl Overhang - 60 in.
Non-vinyl Overhang - 31 in.
A
B
A
A
OVERHANG
CLEARANCES TO COMBUSTIBLES :
A B C D E F G H
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Non-Combustible
Floor
Combustible
Flooring
Standoff
Height
Sides of
Appliance
Inches 41-1/4 23 44 31 0 0 3-3/8 0.5
mm 1048 584 1118 787 0 0 86 13
