Heat & Glo LifeStyle Collection • Twilight-II • 2087-900 Rev. G • 12/05 35
14

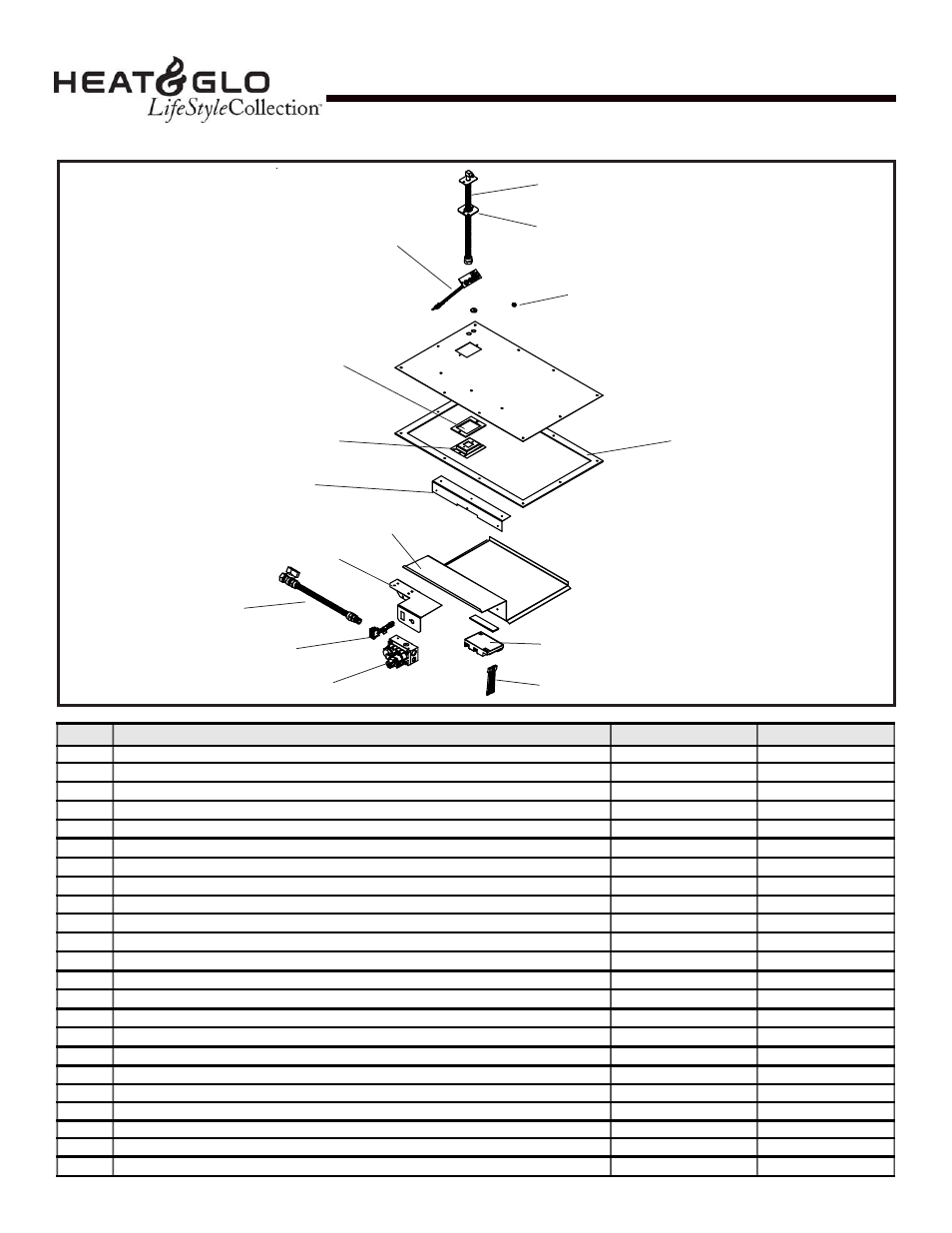

(NG, LP) Exploded Parts Diagram
Service Parts
TWILIGHT-II
Beginning Manufacturing Date: 6-05
Ending Manufacturing Date: ______
ITEM DESCRIPTION SERIAL # PART NUMBER
1 Burner Neck Gasket 438-407
2 Valve NG 593-500
2 Valve LP 593-501
3 Flexible Gas Connector 383-302A
4 Wire Assembly 593-590A
5 Pilot Assembly NG 2090-012
5 Pilot Assembly LP 2090-013
6 Valve L Bracket 674-168
7 Burner Orifice (NG) (#32C) 582-832
7 Burner Orifice (LP) (#50C) 582-850
8 Valve Bracket 2087-117
9 Flex Ball Valve Assembly 302-320A
10 ON/OFF Rocker Switch 060-521A
11 Control Module 593-592
12 Orifice Bracket 2087-109
13 Valve Bracket 2087-116
14 Orifice Bracket Gasket 2087-110
15 Valve Plate Gasket 2087-112
Battery Pack 593-594A
3V Adaptor 593-593A
Spud LP 593-527
Spud NG 593-528
Pilot Tube 446-301
5
2
9
3
7
4
8
12
11
1
10
13
15
6
