Outside Facing Material
Fire Risk.
Finish all edges and fronts to clearances and
specifications listed in manual.
WARNING
• Black metal columns may be covered with non-
combustible material only.
• Do NOT overlap combustible materials onto
appliance front.
• Install combustible materials up to specified clear-
ances on top front and side edges.
• Seal joints between the finished wall and appliance
top and sides using only a 300
o F minimum sealant.

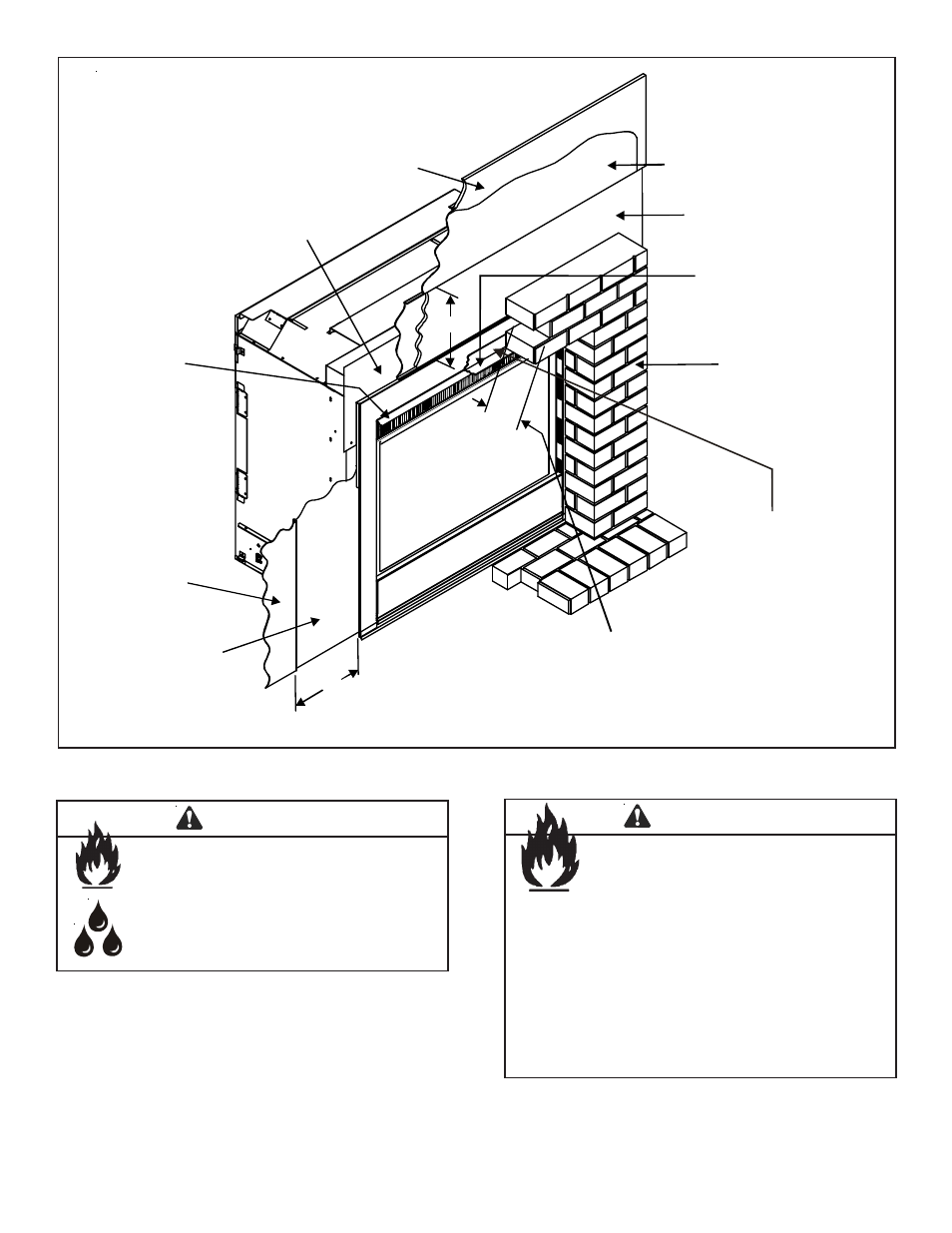

Figure 8.3 Exterior View
COMBUSTIBLE
SHEATHING
HOUSEWRAP
NON-COMBUSTIBLE
SHEATHING
NON-
COMBUSTIBLE
FACING
6 INCH MAXIMUM
PROJECTION FROM
FACE OF APPLIANCE
6 IN.
MAX.
REQUIRED
HOOD
(SUPPLIED WITH
TL-TRIM KIT)
BRICK
LEDGE
12 IN.
REQUIRED
FLASHING
(SUPPLIED WITH
TL-TRIM KIT)
NON-COMBUSTIBLE
SHEATHING
12 IN.
HOUSE
WRAP
THERE MUST BE NO GAP
BETWEEN BRICK LEDGE,
FACING MATERIAL AND
APPLIANCE FRONT.
Î
• May install non-combustible materials to cover gap be-
tween facing material and appliance (see Figure 8.3).
