Discharge defl ector

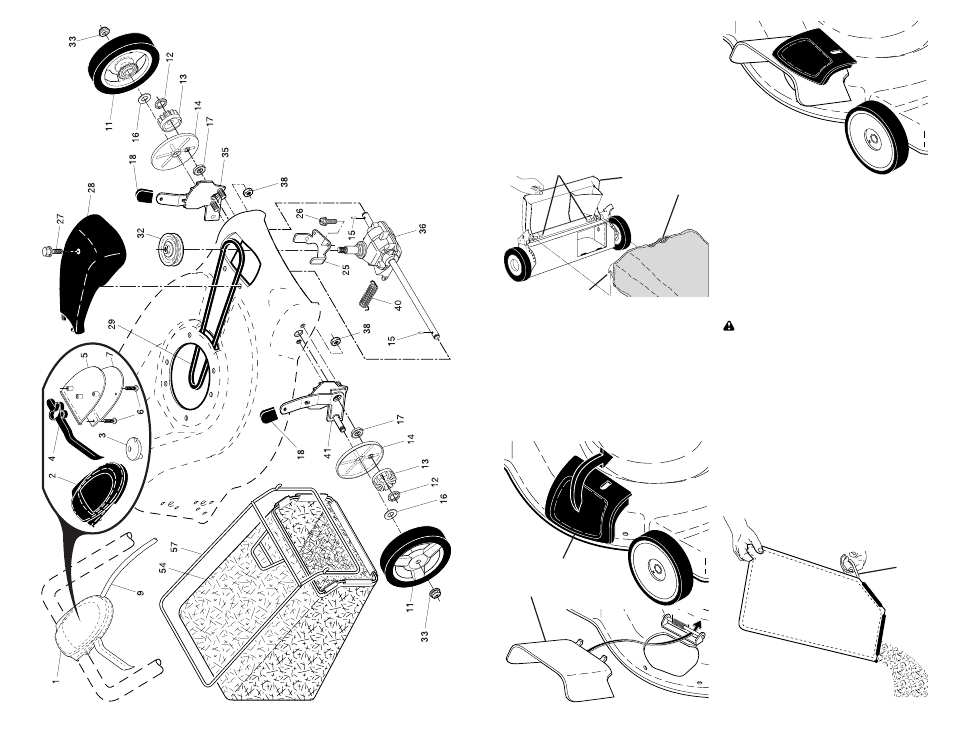

TO CONVERT MOWER
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging
or discharging:
REAR BAGGING
• Lift rear door of the lawn mower and
place the grass catcher frame hooks
onto the door pivot pins.
• To convert to mulching or dis charg ing
operation, remove grass catch er and
close rear door.
Open mulcher door
SIDE DISCHARGING
• Rear door must be closed.
• Open mulcher door and install dis-
charge defl ector under door as shown.
• Mower is now ready for discharging
operation.
• To convert to mulching or bagging
operation, dis charge defl ector must be
removed and mulcher door must be
closed.
SIMPLE STEPS TO REMEMBER WHEN
CONVERTING YOUR LAWN MOWER
FOR MULCHING -
1. Rear door closed.
2. Mulcher door closed.
FOR REAR BAGGING -
1. Grass catcher installed.
2. Mulcher door closed.
FOR SIDE DISCHARGING -
1. Rear door closed.
2. Discharge defl ector installed.
CAUTION: Do not run your lawn
mower with out rear door closed, clipping
defl ector or ap proved grass catcher in
place. Never at tempt to op er ate the lawn
mow er with the rear door re moved or
propped open.
TO EMPTY GRASS CATCHER
1. Lift up on grass catcher using the
frame han dle.
2. Remove grass catcher with clippings
from under lawn mower han dle.
3. Empty clippings from bag.
NOTE: Do not drag the bag when empty-
ing; it will cause unnecessary wear.
Grass
catcher
frame
handle
MOWER IS
NOW READY FOR
DISCHARGING OPERATION
Pivot pins
Grass
catcher
handle
Catcher frame hook
Rear
door
