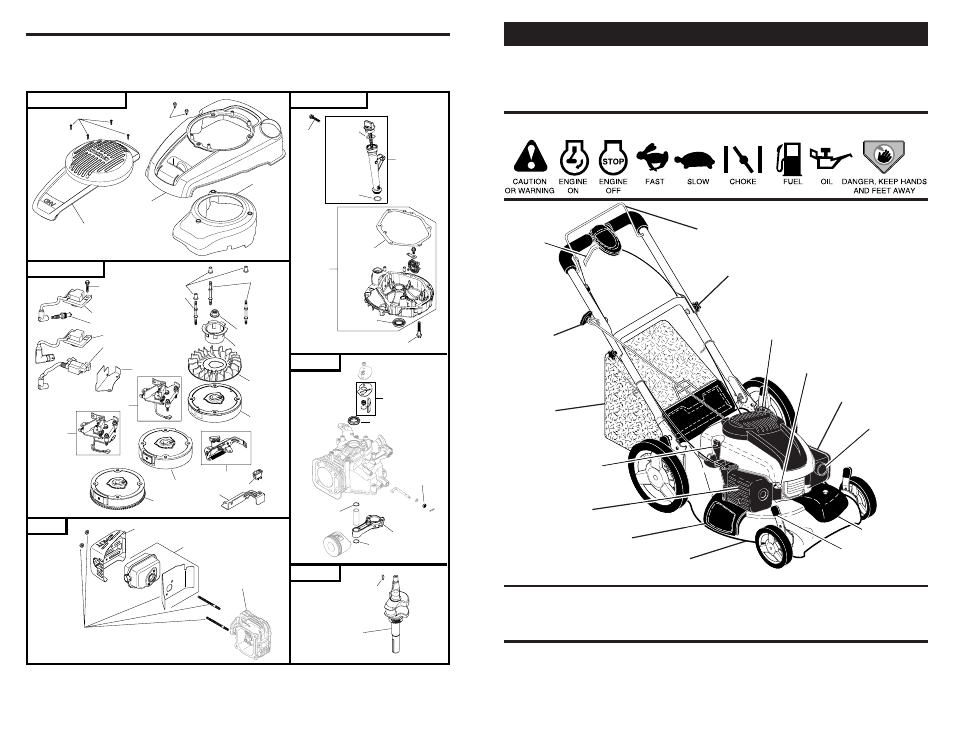

MODEL NUMBER XT173-3089-EA

KOHLER 4-CYCLE ENGINE

14 014 04-S
14 014 08-S
14 014 10-S
14 014 12-S
14 014 14-S
14 014 24-S
14 014 26-S
14 014 33-S
14 014 37-S

CRANKSHAFT

14 340 01-S

14 018 03-S

14 032 04-S

14 050 01-S

14 067 01-S

CRANKCASE

14 032 02-S

14 041 06-S

14 199 01-S

25 086 161-S

14 032 05-S

OIL PAN/LUBRICATION

14 153 03-S

14 153 01-S

25 086
145-S

14 123 04-S

14 132 03-S

14 584 05-S

14 100 02-S
14 100 10-S

14 112 07-S

14 072 12-S

14 025 02-S

14 157 01-S

14 072 13-S

25 086 145-S

14 584 04-S

14 025 01-S

14 219 01-S

14 584 01-S

14 314 01-S

14 219 03-S

14 126 37-S

14 099 07-S

14 219 07-S

14 025 05-S

IGNITION/ELECTRICAL

14 109 02-S

14 314 04-S

14 068 01-S
14 068 05-S
14 068 08-S

14 072 06-S

EXHAUST

HEAD/VALVE/
BREATHER

14 096 04-S
14 096 10-S
14 096 11-S
14 096 12-S
14 096 13-S
14 096 14-S
14 096 24-S
14 096 31-S
14 096 26-S
14 096 27-S
14 096 28-S

25 086 169-S
25 086 288-S

14 332 05-S
14 332 04-S
14 332 09-S
14 332 10-S

14 027 01-S
14 027 03-S

25 086 167-S

BLOWER HOUSING & BAFFLES

Wheel adjuster
(on each wheel)

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OP ER AT ING
YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize
yourself with the location of various controls and adjustments. Save this manual for
future reference.

These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.

Operator presence control bar

Starter
handle

Handle knob

Air fi lter

MEETS CPSC SAFETY REQUIREMENTS
Our rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Com-
mis sion. The blade turns when the engine is running.

Operator presence control bar – must
be held down to the handle to start the
engine. Release to stop the engine.
Primer– pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.

Starter handle – used for starting engine.
Mulcher door – allows con ver sion to
discharging or bagging operation.
Drive control lever – used to engage
power-pro pelled forward mo tion of mower.

Gasoline fi ller cap

Muffl er

Grass
catcher

Housing

Drive
control
lever

Mulcher door

OPERATION

Spark plug

Drive cover

Engine oil cap
with dipstick

Primer
