The operation of any
lawn mower can result
in foreign objects thrown
into the eyes, which can
result in severe eye dam-
age. Always wear safety glasses or eye
shields while operating your lawn mower
or performing any ad just ments or repairs.
We recommend a standard safety glasses
or wide vision safety mask worn over
spectacles.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
Engine speed was set at the factory for
optimum performance. It is not adjustable.
ENGINE ZONE CONTROL
CAUTION: Federal regulations re quire
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not un der
any circumstances attempt to de feat the
func tion of the operator con trol. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator pres ence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.

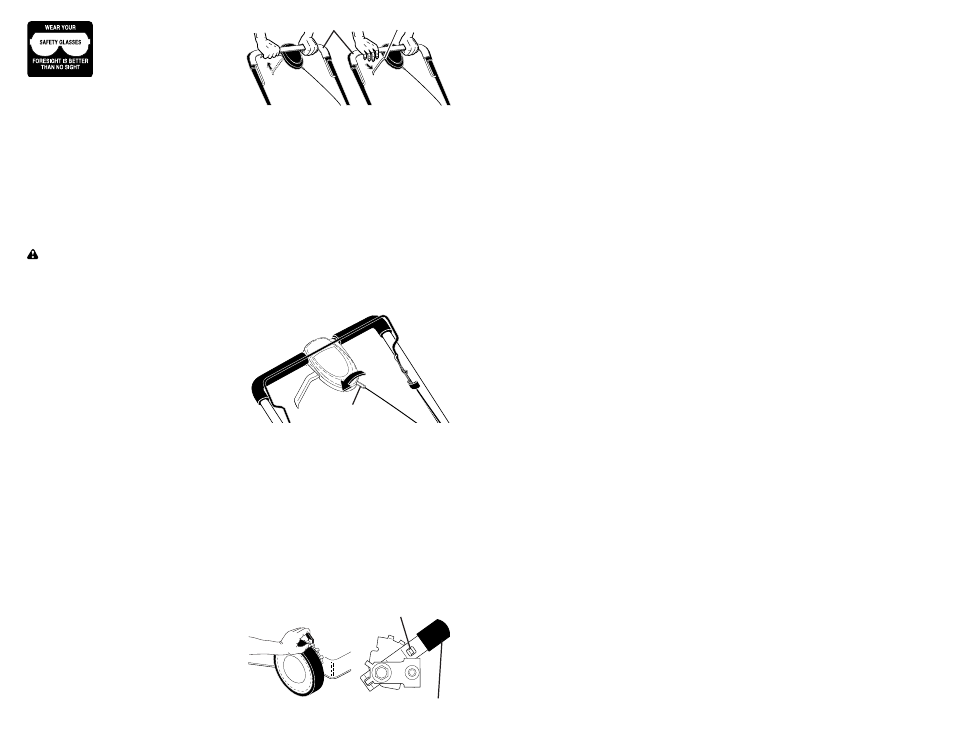

DRIVE CONTROL
• Self-propelling is controlled by hold-
ing the operator presence control bar
down to the handle and pulling the drive
control lever rearward to the handle.
The farther toward the handle the lever
is pulled, the faster the unit will travel.
• Forward motion will stop when either
the operator presence control bar or
drive control lever are released. To stop
forward motion without stop ping engine,
re lease the drive control lever only. Hold
op er a tor presence control bar down
against handle to con tin ue mowing
without self-propelling.
NOTE: If after releasing the drive control
the mower will not roll backwards, push
the mower forward slightly to disengage
drive wheels.
• To keep drive control engaged when
turning corners, push down on the
handle to lift the front wheels off the
ground while turning lawn mower.
LEVER BACKWARD
TO LOWER MOWER
LEVER FORWARD TO RAISE MOWER
Plate tab
Lever
DRIVE CONTROL ADJUSTMENT
Over time, the drive control system may
become “loose”, resulting in decreased
speed. There is a turnbuckle on the
un der side of the drive control housing to
increase tension on the drive cable. Pro-
ceed as follows:
1. Turn unit off and disconnect spark plug
wire from spark plug.
2. Turn nut on underside of drive control
to increase drive speed.
3. Operate mower to test drive speed.
Readjust as required.
4. If condition fails to improve after the
above steps (forward speed remains
the same), your drive belt is worn and
should be re placed.
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower wheels
for high cut, adjust cutting height to suit
your requirements. Me di um position is
best for most lawns.
• To change cutting height, squeeze ad-
juster lever to ward wheel. Move wheel
up or down to suit your re quire ments. Be
sure all wheels are in the same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
Adjustment
turnbuckle
TO
ENGAGE
DRIVE
CONTROL
Drive control
lever
DRIVE
CONTROL
DISENGAGED
Operator presence control bar
41
HUSQV
ARNA
ROT
AR
Y
LA
WN MOWER - - MODEL
NUMBER
917.374080
(PRODUCT NUMBER
7021
)
NOTE:
All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORT
ANT
: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mo
wer and void your warranty
.
KEY
P
ART
NO. NO.
DESCRIPTION
KEY
P
ART
NO. NO.
DESCRIPTION
1
425580
Drive Control
Assembly (Includes Cable)
2
406260X460
Cover
, T
o
p
3
406262
Pulley
4
425538
Lever
, Drive Control
5
406261X460
Cover
, Bottom
6
181698
Screw
7
400235X479
Mounting Bracket
9
406259
Cable
Assembly
, Drive Control
1
1
401274X460
Wheel & Tire
Assembly
12
12000058
E-Ring
13
403849
Gear
, Pinion
14
189403
Dust Cover
15
404845
Pawl, Drive
16
67725
W
a
sher 1/2 x 1-1/2 x .134
17
191039
Bearing, Wheel
Adjuster
18
701037
Selector Knob
25
404843X004
Belt Keeper
26
163409
Screw
, Hi-Lo Thread #12 x 5/8
27
175262
Pan Head T
apping Screw #10-24 x 2-3/4
28
194406X418
Drive Cover
29
194149
V
-Belt
32
194018
Pulley
, Drive
33
409148
Locknut, Hex
35
408862
Kit, Wheel
Adjuster
, LH
(Includes Knob and Bearing)
36
404833
Gear Case
Assembly
, Complete
38
73800400
Locknut, Hex 1/4-20
40
406558
Spring
41
408861
Kit, Wheel
Adjuster
, RH
(Includes Knob and Bearing)
54
425732
Grassbag
57
41
1950
Frame, Grassbag
