Assembly
Boiler Kit Materials: (Refer to page 3)
List of items contained within the boiler kit shipped
with the unit.
1 - Control board cover
1 - Access cover (Hopper Swing Plate Knob)
5 - Spring Handles
1 - 3/4” Boiler Drain
1 - 3/4” Safety Relief Valve
1 - 1/2” Aquastat Well
1 - 1/2” Dual Temperature/Pressure Gauge
1 - 100ft. Sensor Cable (Outdoor Air Sensor)
1 - Outdoor Air Sensor
1 - Flue Tunnel Weldment
1 - Combustion Blower Assembly
1 - Heat Shield (Comb. Blower)
2 - UY Connectors
2 - Terminals 1/4 Female
1 - #8 X 1/2” TEK
3 - 1/4-20 X 5/8” Wing Screw
4 - 1/4” Lock Washer
4 - 1/4-20 Nuts

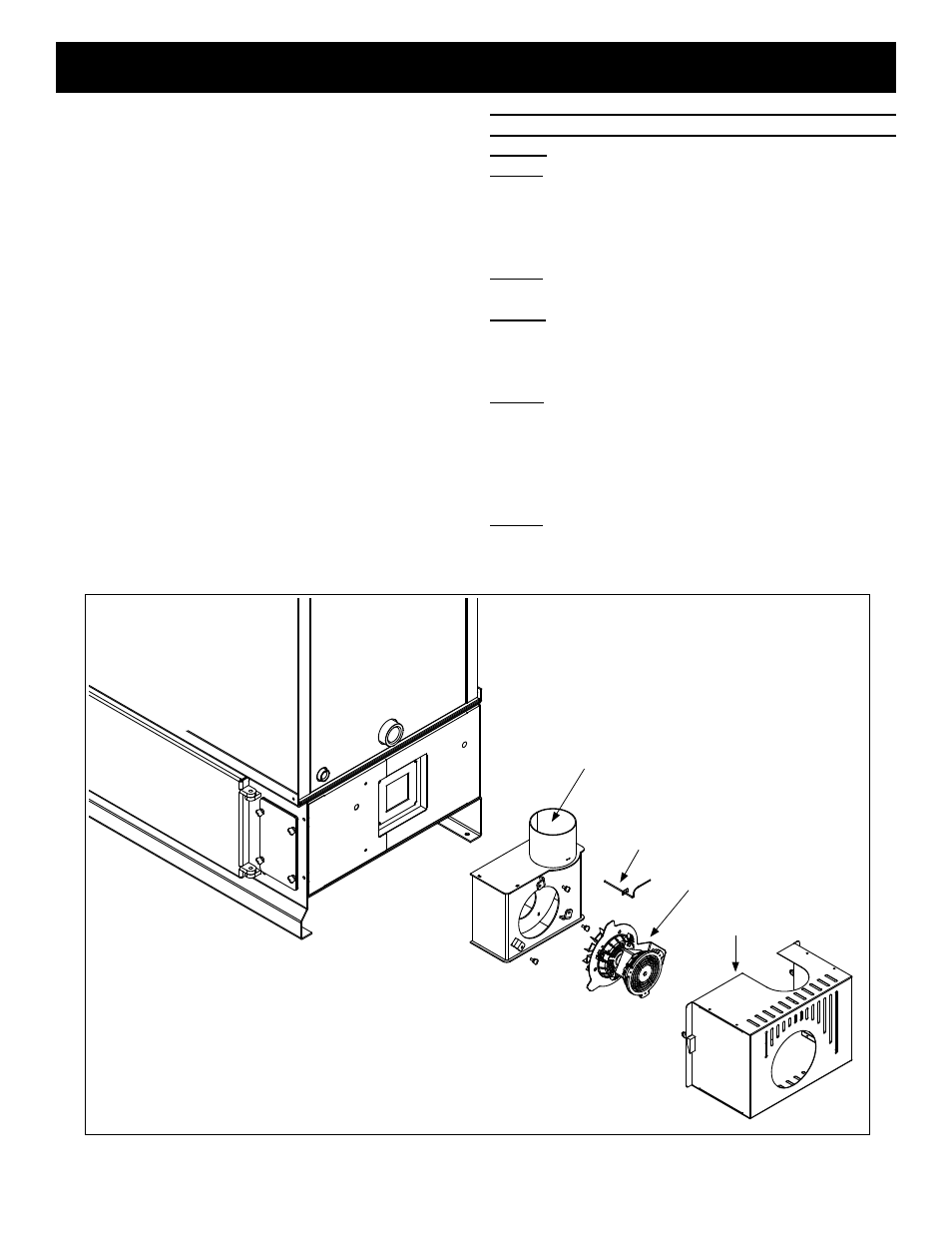

Installation of the Flue Tunnel Weldment,
Combustion Blower and Wiring, eSP and Heat
Shield:
Step 1: First install the flue tunnel weldment by aligning
the (4) studs with the (4) holes in the ash chamber base.
Fasten the (4) nuts and lock washers provided, to the
studs by removing the access cover on the secondary
ash chamber.
Step 2: Place the combustion motor onto the flue tunnel
weldment and tighten the (3) wing screws provided.
Step 3: Insert the Exhaust Sensing Probe (ESP) into
the 1/8” hole provided on the flue pipe stub. Fasten with
the (1) #8x1/2” TEK screw also provided. ESP will be
taped to the sheet metal jacket for shipping purposes.
Step 4: Connect the flex conduit 90 degree elbow(Not
Shown) to the heat shield in the hole provided. Then
connect the (3) wires from the combustion blower with
the (3) wires in the flex conduit by using the push-on
connectors and matching the wire colors as follows: Red
to Black, White to White and Green to Green.
Step 5: Place Heat Shield over combustion blower and
align the swell latches with the holes in the sheet metal
and tighten.
Heat Shield
NOTE: Refer to Fig’s 22, 23, and 24 located on page 33 of this manual.
Flue Tunnel Weldment
ESP
Combustion Blower
