Service Parts
PB105
Beginning Manufacturing date: N/A
ending Manufacturing date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
Stocked
at depot
ITeM deSCRIPTION COMMeNTS PART NUMBeR
8.1 Ash Base Gasket 20 Ft 1-00-88250 Y
8.2 Ash Chamber Insul Left Side 3-44-72182
8.3 Ash Chamber Jacket Left with Relief Hole 2-00-72125B
8.4
Relief Door/w Pressure Relief Pre 008340000 1-10-72209 Y
Relief Door Assembly Post 008340000 1-10-72204
ReliefDamper Gasket 3-44-72206
8.5 Sheet Metal Bracket Qty 2 req 2-00-72203B
8.6 Ash Pan Assembly 1-10-72129 Y
8.7 Ash Door Assembly 1-10-72137A Y
8.8 Access Plate w/Gasket 2-00-72132
Screw, 1/4-20 x 3/4 Pkg of 100 3-30-1112-100 Y
Wing Nut. 1/4 -20 Pkg of 25 3-30-8011-25 Y
8.9 Access Plate Gasket only 3-44-72207 Y
8.10 Base Weldment 1-10-00250W
8.11 Ash Chamber Jacket Right, Left of Comb Hole 2-00-72126B
8.12 Flue Tunnel Weldment 1-10-72145W Y
8.13 Combustion Blower 3-21-08639 Y
Blower Mounting Plate 1-10-73416
Blower Mounting Studs Pkg of 100 1-00-53483208
5" Double Blade 3-20-502221 Y
8.14 105 Blower Heat Shield 2-00-72140A
8.15 ESP Probe 3-20-00844 Y
ESP Wiring Extension 3-20-72225 Y
8.16 Ash Chamber Jacket Right, Right of Comb Hole 2-00-72127B
8.17 Combustion Housing Gasket 5 Sets 1-00-07385 Y
8.18 Ash Chamber Insul Right Side 3-44-72183
8.19 Ash Chamber Insul Back Side 3-44-72184
8.20 Ash Chamber Jacket Back 2-00-72124B
Additional service part numbers appear on following page.

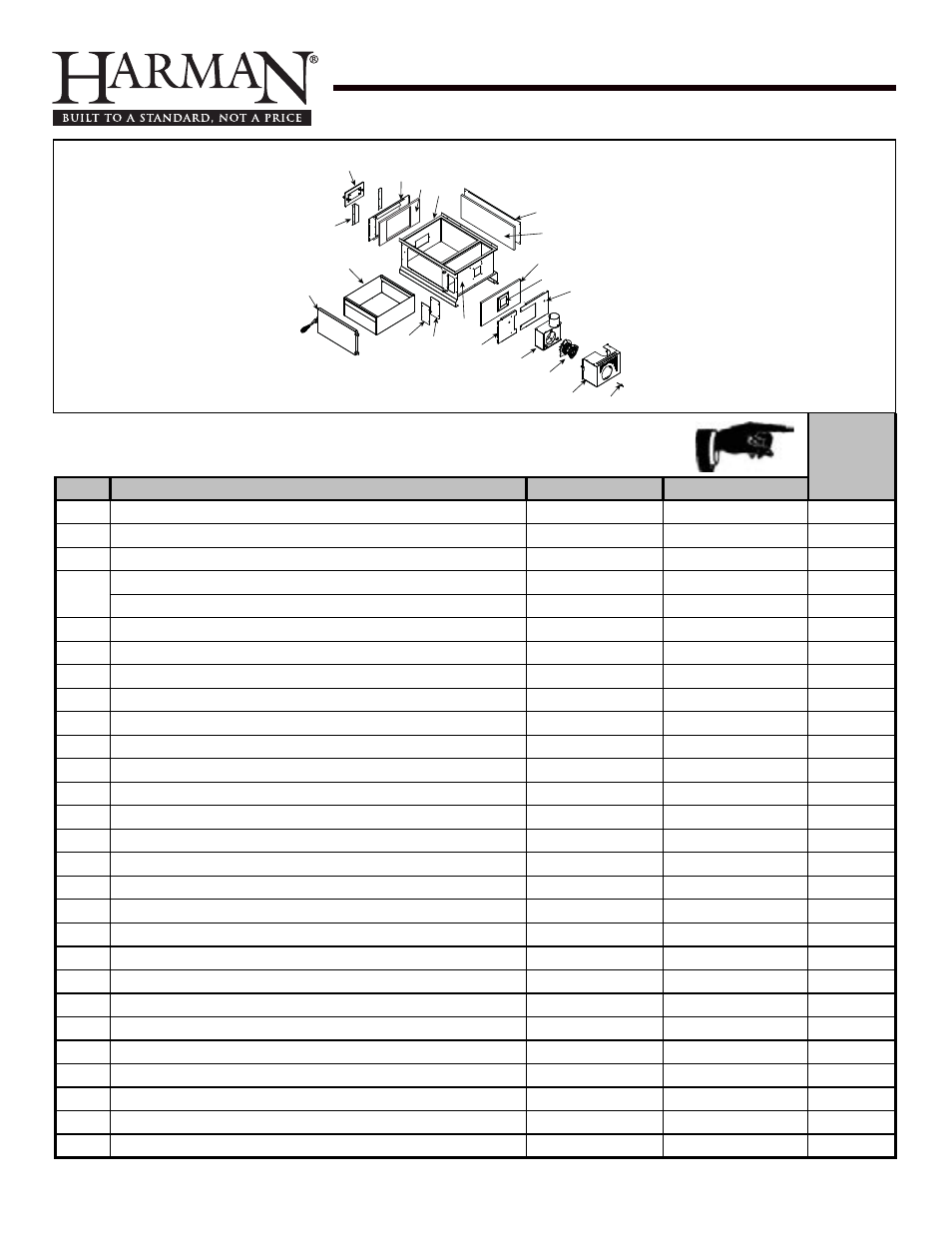

#8 Ash Base Assembly
