Service Parts
PB105
Beginning Manufacturing date: N/A
ending Manufacturing date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at depot
ITeM description COMMeNTS PART NUMBeR
28.1
6RPM Gear Motor Pre 008341121 3-20-09302 Y
Pellet Feeder Gear Motor, 10RPM Post 008341121 3-20-02524 Y
Feed Motor Fan Blade Pkg of 3 3-20-09302-3 Y
28.2 UL Feeder Cam 3-31-3014 Y
Grommet Pkg of 12 3-31-2761-12
28.3 Feeder Crossover Kit 1-00-67900 Y
9MM Silicone Tube 5 Ft 1-00-511427 Y
28.4 Pellet Air Intake Assembly 1-10-06810A
28.5 Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Y
28.6 UL Feeder Air Intake 1-10-72222
28.7 Gasket Ultra Air Intake Pkg of 10 3-44-677160-10 Y
28.8 Ultra Feeder Weldment 1-10-72226S Y
28.9 UL Feeder Pusher Arm 1-10-677187W Y
28.10 Fines Defl ector No longer available 2-00-677138-10
28.11 Gasket, UL Feeder Cover Set of 2 1-00-677122 Y
28.12 Slide Plate Assembly 1-10-677121A Y
28.13 UL Feeder Auger Assembly 3-50-00565 Y
28.14 Bearing Flange w/Hardware 1-00-04035 Y
28.15 UL Feeder Gear Motor Bracket w/Grommet 1-00-247406 Y
28.16 UL Feeder Cam Block 3-00-677154 Y
Pillow Block Pkg of 4 3-31-3614087-4 Y
Additional service part numbers appear on following page.
28.7
28.6
28.5
28.4
28.3
28.2
28.1
28.16
28.15
28.8
28.9
28.10
28.11
28.12
28.13
28.14

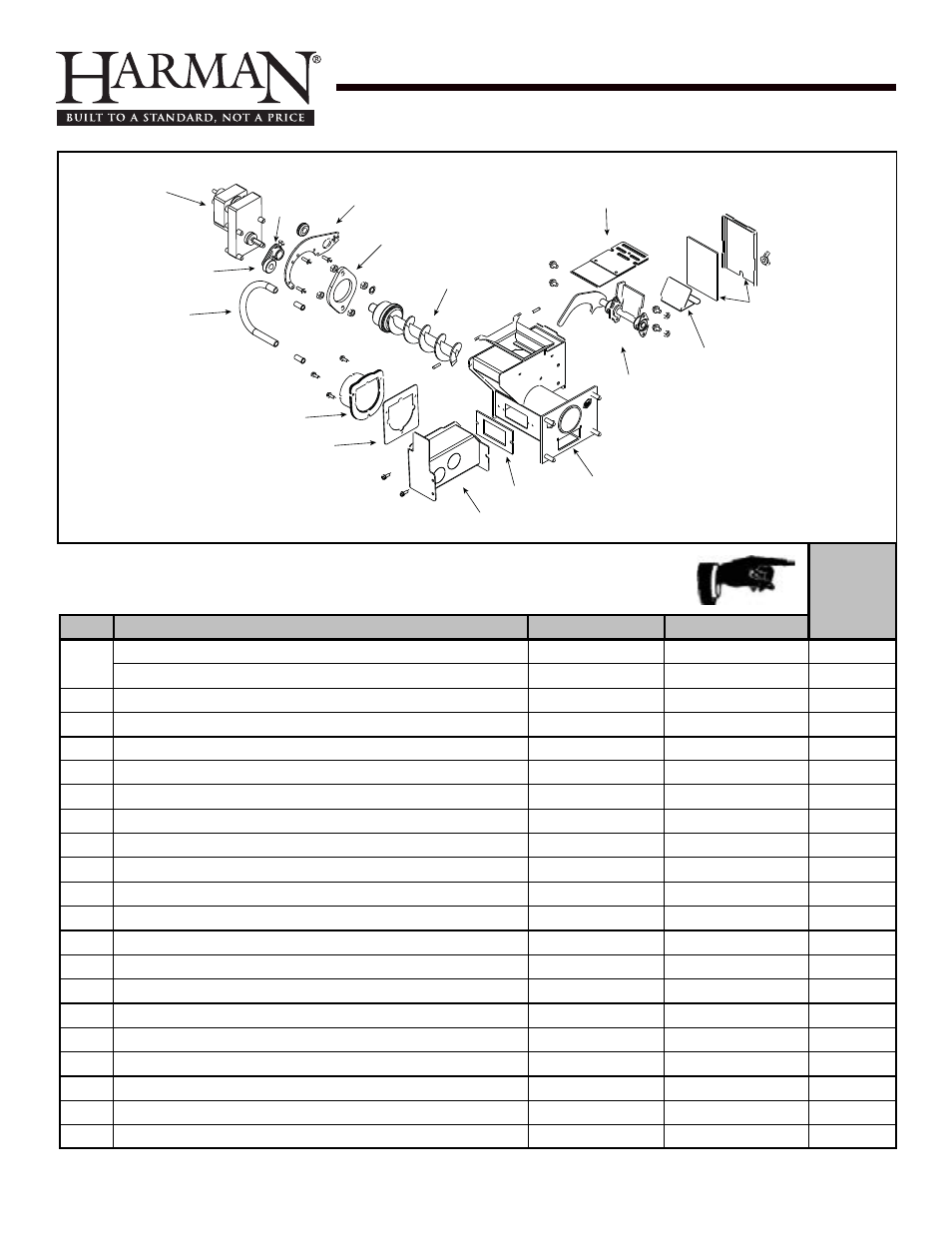

#28 Feeder Assembly
