stand fan

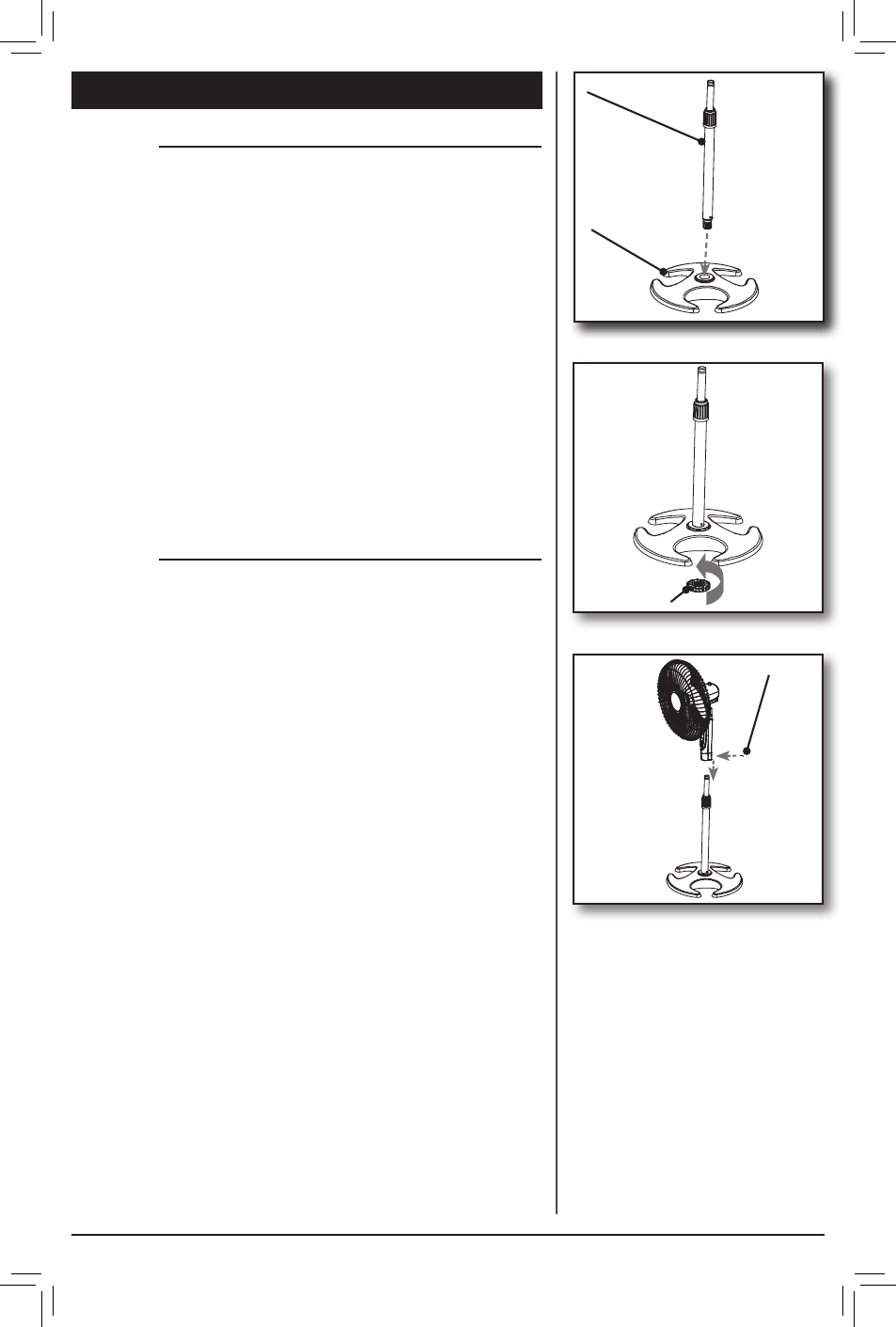

figure 9.
base assembly
1. Slide the Telescope Rod (7) into the top of the Stand
Base (8) of the stand fan. The pole is notched so it will
only fit into the base 1 way. Figure 7.
2. Secure the Telescope Rod (7) by screwing the Base
nut (9) onto it from underneath the base. Figure 8.
3. Slide the Fan Assembly onto the telescope pole of the
base until it rests on the top of the pole. Figure 9.
4. tighten the screw on the back of the fan Assembly
until secure.
Warning: do not force pole into the Stand Base
as damage to the Telescope Pole may occur. do not
overtighten the Base nut or screws.
figure 7.
(7) Telescope Pole
(8) Stand Base
figure 8.
(9) Base Nut
Height adjustment
1. grip the upper part of the telescope pole and loosen
the Adjustment Knob.
2. Raise or lower the pole to the desired height.
3. Turn the Adjustment Knob until it is secure.
screw
