5 ©2009 Hunter Fan Co. 44825-01 20091105

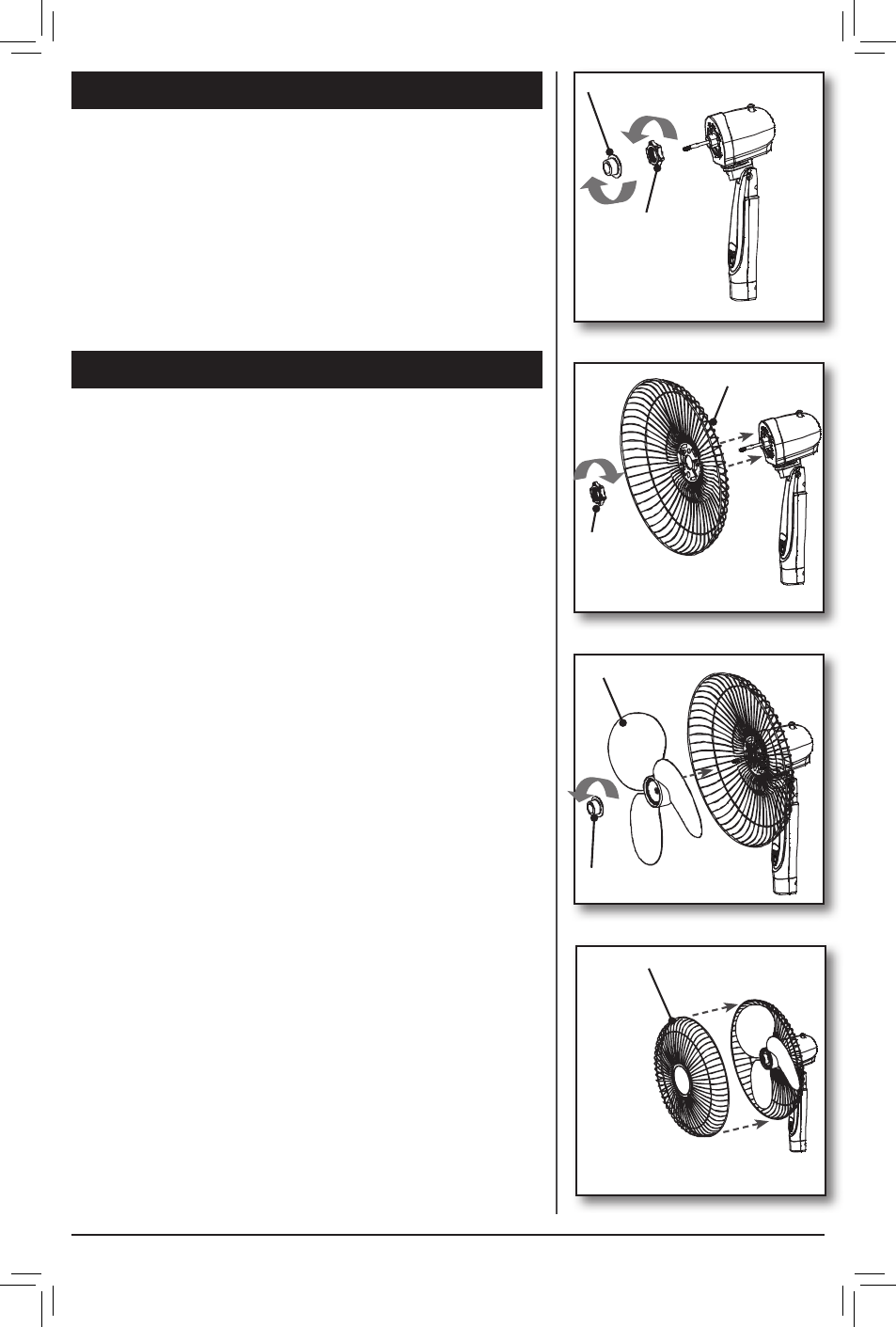

fan assembly
figure 3.
figure 4.
figure 5.
1. Remove the Plastic Spinner (1) and the Plastic nut (2)
from the fan motor housing. Figure 3.
2. Set the Rear grill (3) against the front part of the
Motor Housing with the handle facing up. The 3 pins
on the motor housing should stick through the back
of the Rear grill. Figure 4.
3. Screw the Plastic nut (2) onto the fan and tightenly
firmly. Figure 4.
4. Remove the Plastic Sleeve from the motor housing
shaft and discard.
5. Install the Fan Blade (4) by sliding it over the motor
housing shaft, lining up the cut-outs on the back of
the Blade with the Retaining Pins on the Motor shaft.
Figure 5.
6. Screw the Spinner (1) onto the shaft counterclockwise
until secure. Figure 5.
7. Open the clips on the Front grill
8. Set the Front gill (5) into the notch on the bottom
of the Rear grill (3) So the Hunter logo is facing
rightside up. Figure 6.
9. Close the clips On the Front grill to hold both grill
pieces in place. Insert the grill screw on the bottom of
the fan grill and tighten securely.
(1) Spinner
(2) Nut
(3) Rear Grill
(2) Nut
(4) Fan Blade
(1) Spinner
figure 6.
(5) Front Guard
unpaCkIng
As you unpack the fan, save the carton and packing
materials in case you want to move or ship the unit in
the future.
Carefully remove all items from the box.
nOTE: It is best to have someone hold the box while
you lift the fan and the protective packaging out of the
carton.
Make sure all shipping materials are removed from fan
before operating.
