Anti-tumble measures
Securing to a wall or pillar
Using a commercially available cord,
chain and clamp, secure the set to a firm
wall or pillar.
Securing desktop
1)Using wood screws (two), fasten the set to the
clamping screw holes on the rear of the stand
as shown.
2)Using commercially available wood screws,
secure the set firmly in position.
No stand is provided with this product. When installing the monitor,
use the optional Desk-top Stand (CMPAD05), Wall Mount Unit
(horizontal-mount CMPAK05, vertical/horizontal-mount CMPAK15),
or Ceiling Mount Unit (CMPAT05).
The Desk-top Stand has been used for the illustrations in this
manual.

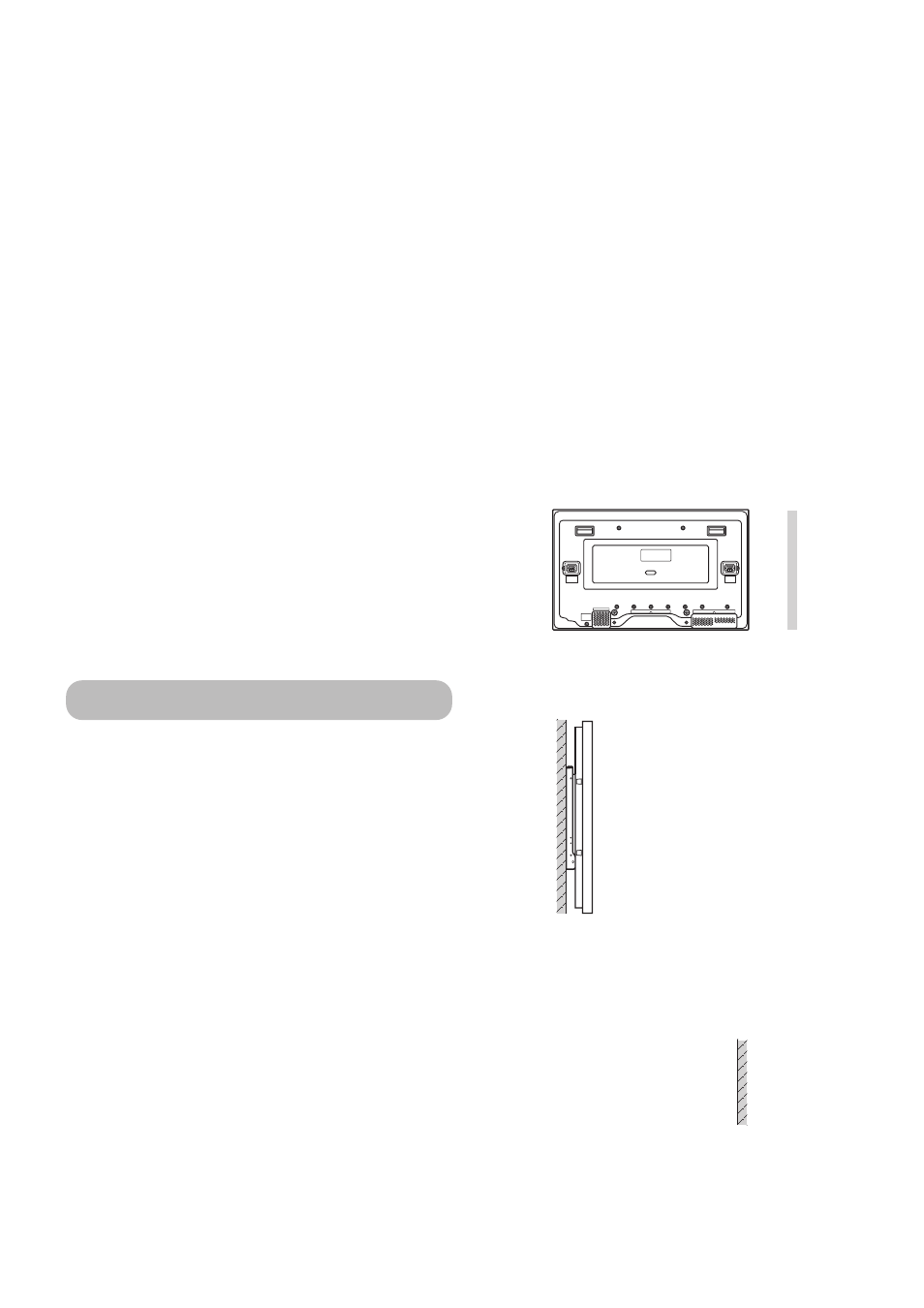

Using the optional vertical-mount unit
(CMPAK15)
Using the optional wall-mount unit (CMPAK15) allows set to mount
on wall surfaces as shown at below.
1) Make at least four sets of commercial anchor bolts and screws
available to meet various kinds of walls to mount on.
2) Read the instructions supplied with the wall-mount unit carefully to
optimally locate the plasma display on a wall surface.
3) Prepare the wall surface for anchoring and drilling as needed, as
shown in the sketches.
• Make sure that an adequate wall surface strength and a screw
holding strength are available.
