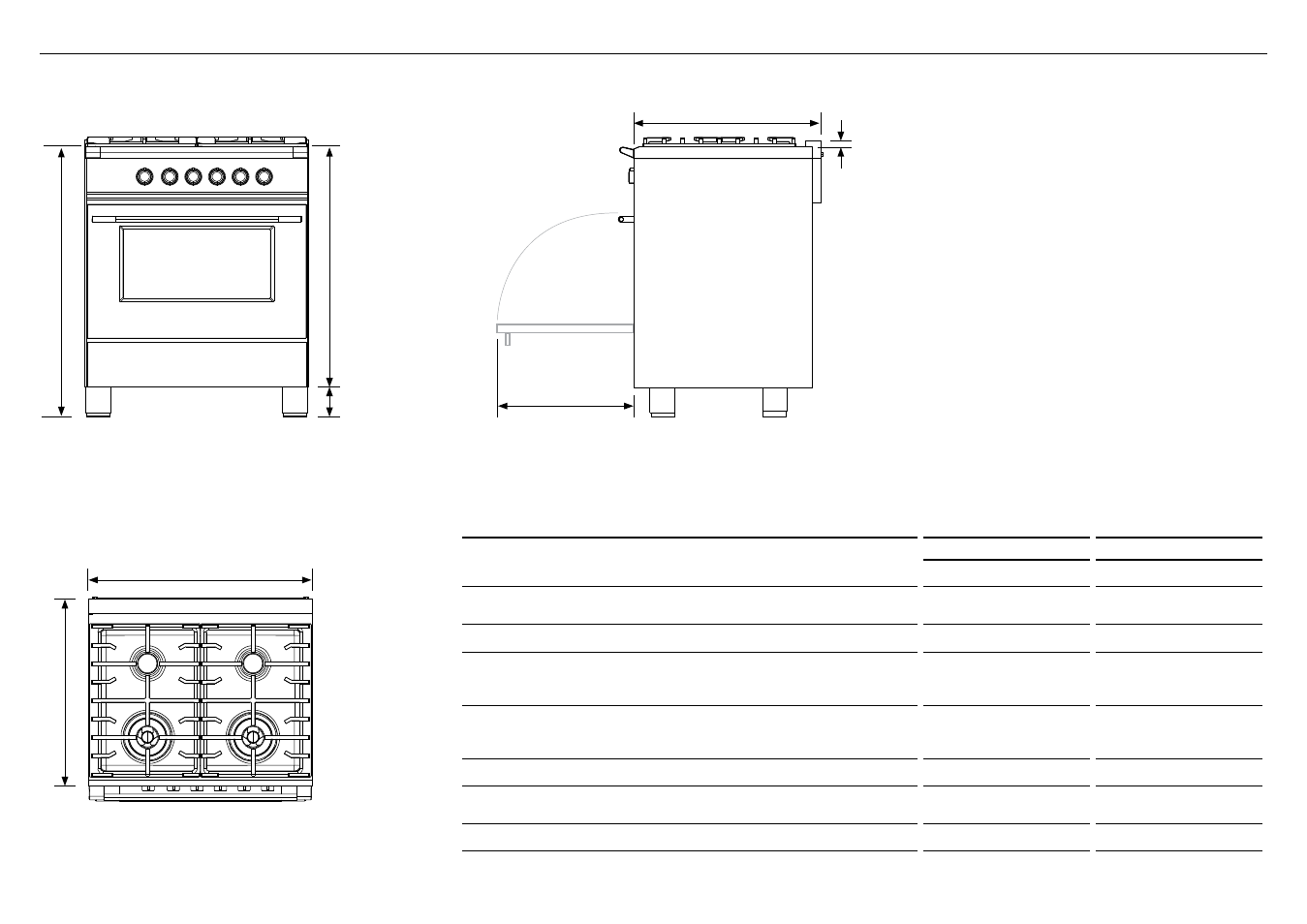

PRODUCT DIMENSIONS

FRONT

TOP

SIDE

E

B

C

C

A

D

F

G

PRODUCT DIMENSIONS

OR30S GAS GAS

OR30S DUAL FUEL

inches (mm)

inches (mm)

A

Overall height of range

(from floor to top of cooktop, excluding grates and island trim/backguard)

min. 35 3/4” (908)

max. 37 5/8” (956)

min. 35 3/4” (908)

max. 37 5/8” (956)

B

Overall width of range

29 7/8” (759)

29 7/8” (759)

C

Overall depth of range
(from front of range to rear of island trim/backguard,
excluding handles and dials)

25 1/4” (641)

25 1/4” (641)

D

Height from top of cooktop to top of
- Island trim (fitted)
- Backguard (optional)

7/8” (22)

3” (76)

level with cooktop

3” (76)

E

Height of chassis (excluding adjustable feet)

32 1/8” (816)

32 1/8” (816)

F

Adjustable feet height

min 3 3/8” (85)

max 5 1/4” (133)

min 3 3/8” (85)

max 5 1/4” (133)

G

Depth of open door to front of range

16 7/16” (417)

16 7/16” (417)

NOTE: Model features may vary

Optional kickstrip is available (purchased separately)
