25

!9

GAS CONVERSION (GAS GAS MODELS ONLY)

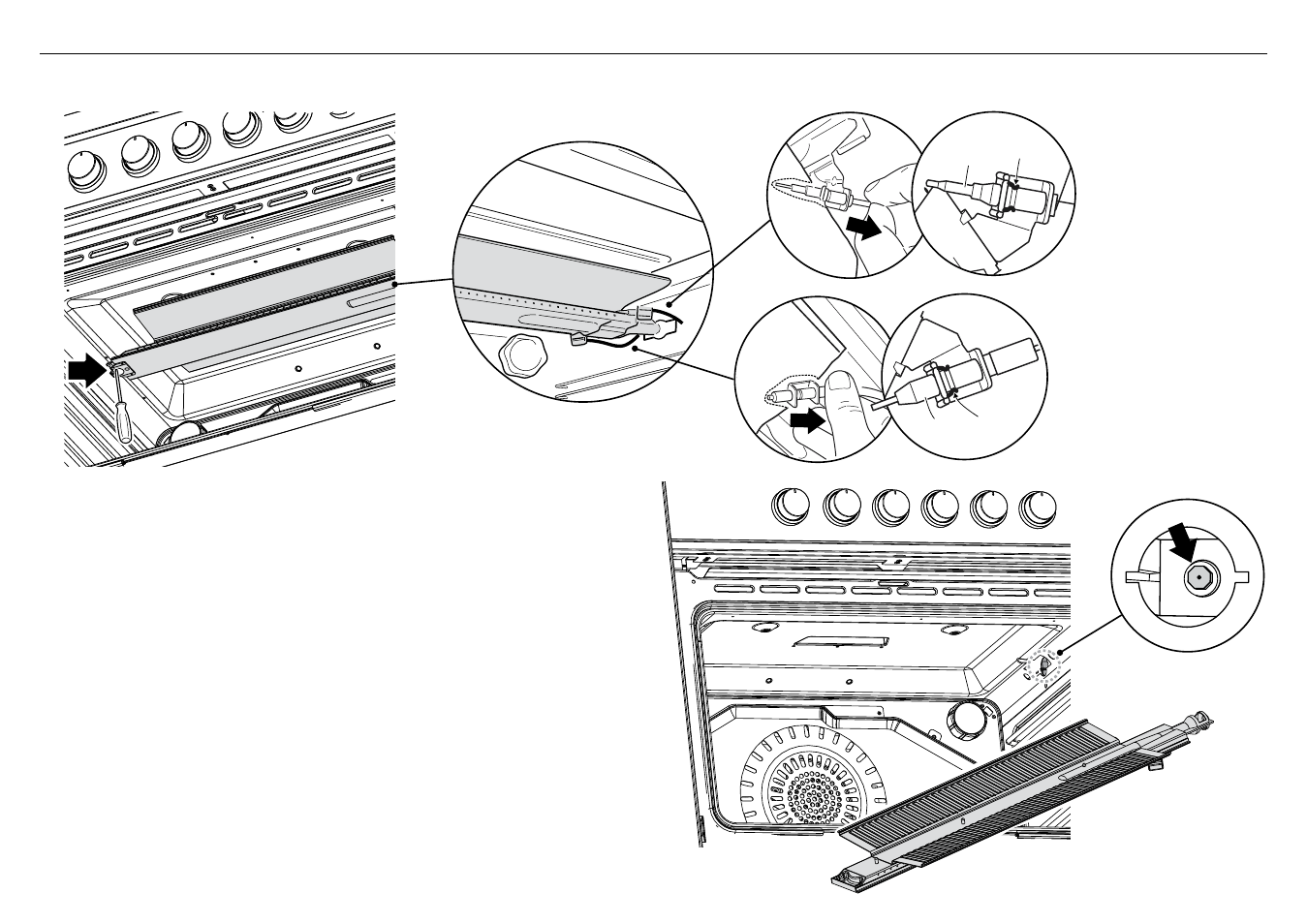

Replacing the oven broil burner injector

Injector

1

Gently unlock, the safety valve probe (

V

) and the ignition

electrode (

E

) from the burner.

Take care not to damage the probe and the ignition electrode.

2

Unscrew and remove the burner securing screw (

A

).

3

Withdraw the burner as shown beside.

4

Using a 9/32” (7mm) box spanner, unscrew the injector and replace it with a

new one
selected in accordance with the ‘Injectors table’.

5

Replace the burner and other components.

IMPORTANT!

Ensure the safety valve probe (V) and the ignition electrode (E) are replaced
correctly.

Check the correct operation of the safety valve and the ignition electrode.

Anchorage

clip

E

E

Anchorage

clip

V

V

A

Ignition

electrode

Safety

valve probe
