24

!9

GAS CONVERSION (GAS GAS MODELS ONLY)

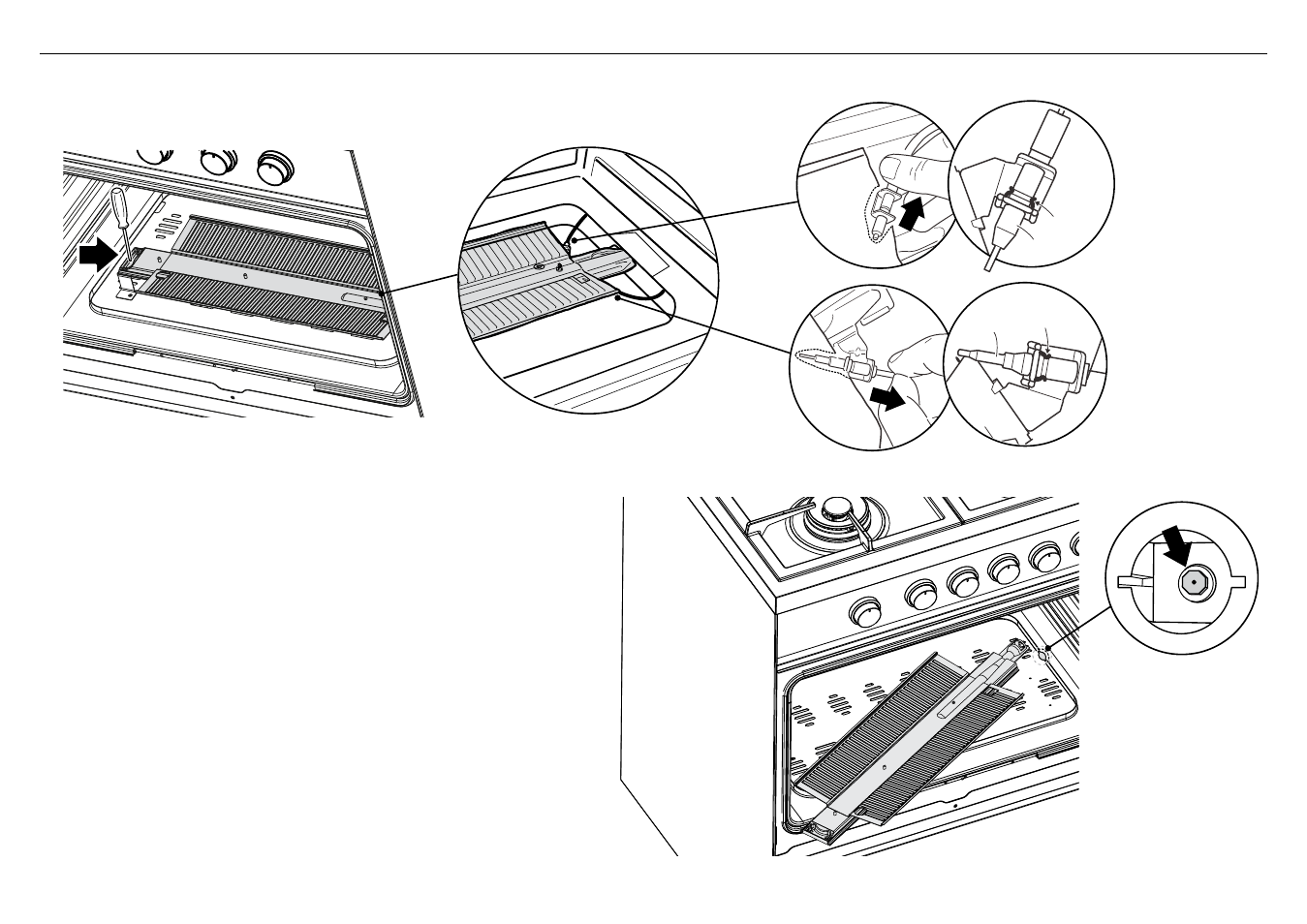

Replacing the lower oven burner injector

1

Lift and remove the lower panel inside the oven.

2

Gently unlock, the safety valve probe (

V

) and the ignition electrode (

E

)

from the burner. Take care not to damage the probe and the ignition
electrode.

3

Unscrew and remove the burner securing screws (

A

).

4

Withdraw the burner as shown.

5

Using a 9/32” (7mm) box spanner, unscrew the injector and replace it

with a new one selected in accordance with the ‘Injectors table’.

6

Replace the burner and other components.

IMPORTANT!

Ensure the safety valve probe (V) and the ignition electrode (E) are
replaced correctly.

Check the correct operation of the safety valve and the ignition
electrode.

E

E

Anchorage

clip

V

Anchorage

clip

V

Injector

A

Ignition

electrode

Safety

valve probe
