GAS CONVERSION

Injectors table

BURNERS

NOMINAL

POWER

REDUCED

POWER

LP/PROPANE

11” (279.4mm)

W.C.P.

NATURAL GAS

4” (101.6mm)

W.C.P.

BTU/HR

BTU/HR

Ø INJECTOR

[1/100 MM]

Ø INJECTOR

[1/100 MM]

Semirapid (SR)

7600

(LP/Propane Gas)

1800

78

8000

(Natural Gas)

1800

136

Dual (D)

Inner crown

2800

1

1100

1

47

3

80

3

Full burner

18000

2

6500

2

79 (x2)

4

135 (x2)

4

OR30 GAS GAS MODELS ONLY

Oven burner

14000

2400

109

190

Broil burner

11000

100

170

1

Power calculated only with inner crown operating

2

Power calculated with inner and outer crown operating

3

Inner crown injector

4

Outer crown injector

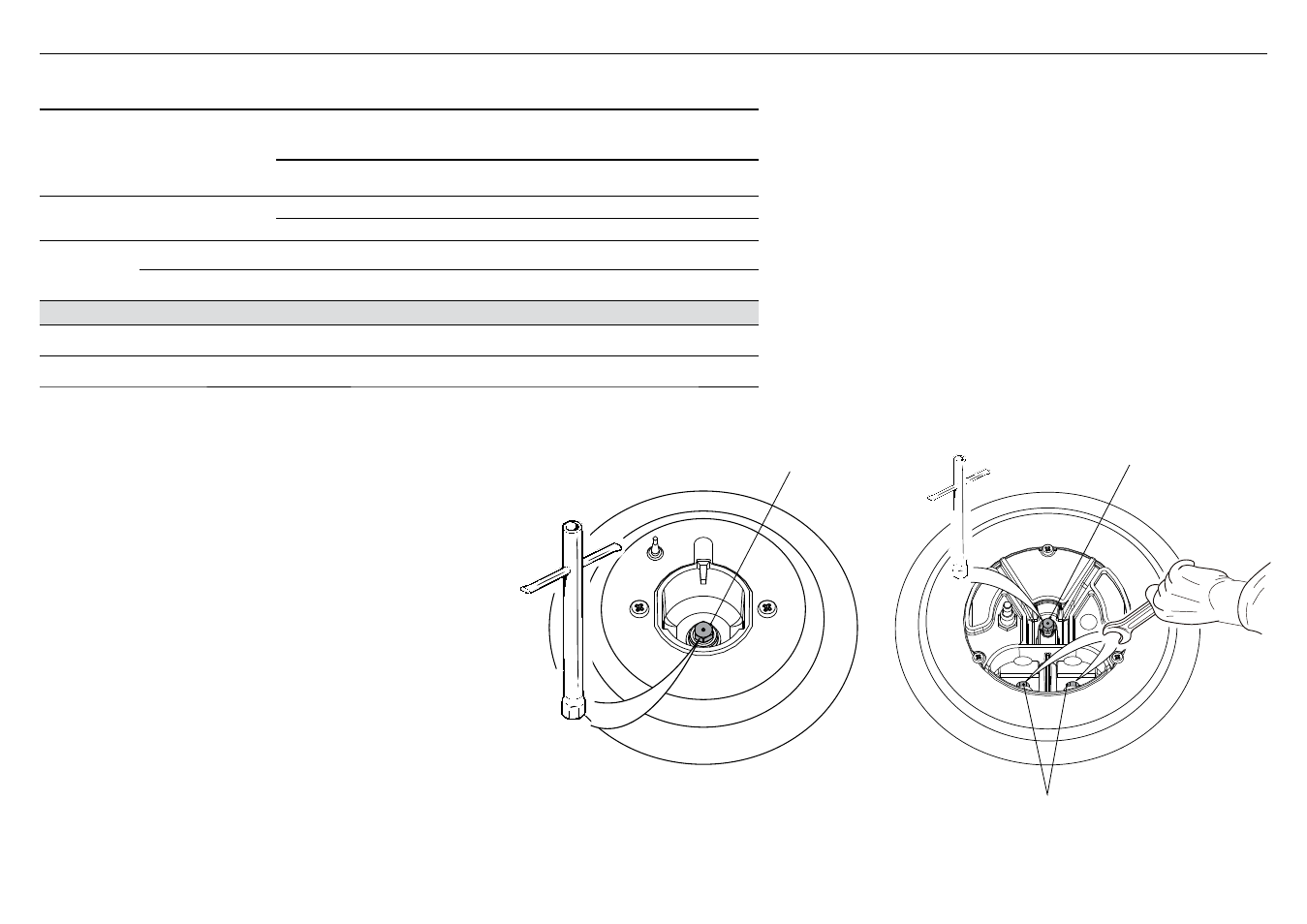

Replacing the cooktop burner injectors

Remove the pan supports, the burner caps and the flame spreaders.

Using a wrench substitute the nozzle injectors with those most
suitable for the kind of gas for which it is to be used.

Refit the flame spreaders, the burner caps and the pan supports.

The burners are designed so that no regulation of the primary air is
required.

Semi-rapid burner

Dual burner

Inner crown injector

Inner crown injector

Outer crown injector
