Godox AD300pro Outdoor Flash - Manual (Page 6)

1 1 1 2 2 2
3 3 3
1 1 1
2 2 2
3 3 3
Firstly, lock tightly spring 1 3
and press down the spring 2
and 3 simultaneously. Then,
install the glass protection
cover.

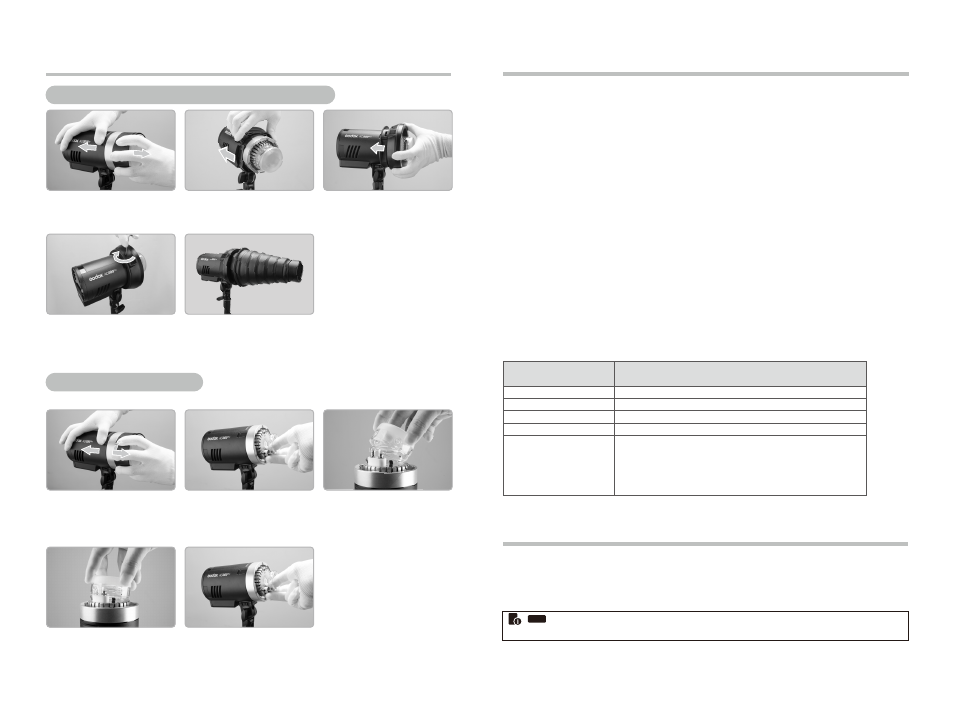

Name of Parts
Replacing Adapter Rings and Accessories
Remove the reflector or other 1
accessories from the flash
head.
Install the first half of adapter 2
holder into the fixing slot. Then,
install another half to form a
circle.
Match the Bowens mount or 3
other adapter ring to the adapter
holder.
Install the accessories of different mounts. If 5
needed to use new Godox-mount accessories
after installing the adapter ring of other brand ,
just install them directly.
Tighten the four screws. 4
Attaching Flash Tube
Remove the reflector or 1
other accessories from the
flash head.
Match the flash tube in the 2
Tube Socket. Push the flash
tube in until it is securely
seated into the socket.
Detach Flash Tube
Install Flash Tube
Pull out the glass protection 1
cover from the spring 2 and 3
before 1.
Battery Level Indication
on the VA Panel
3 grids
2 grids
1 grid
Blank grid
Blinking Meaning
Full battery
Medium battery
Low battery
Lower battery, please recharge it.
The battery level is going to be used out immediately.
And the flash will auto power off in 1 minute.
Note: Please recharge the battery as soon as possible
(within 10 days). Then, the battery can be used or be
placed for long period.
Lithium Battery
Features
1. This flash unit uses Li-ion polymer battery which has long runtime. The Available
charge-and-discharge times are 500.
2. It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent,
and short circuit.
3. Take only 2.5 hours to fully charge the battery by using the standard battery charger.
Cautions:
● Do not short circuit.
● Do not expose to rain or immerse into water. This battery is not water proof.
● Keep out of reach of children.
● No over 24 hours' continuous charging.
● Store in dry, cool, ventilated places.
● Do not put aside or into fire.
● Dead batteries should be diaposed according to local reglations.
● Long time not to use, please charge it to 60% and then placed.
● It is recommended to fully recharge the battery every three months.
Battery Level Indication
Make sure the battery pack is securely loaded in the flash. Check the battery level
indication on the VA panel to see the remaining battery level.
Power Management
ON/OFF Power Switch controls the on/off of the flash unit, turn off the power pack if the
flash unit will not be used for an extended period. The product design of power supply
with automatic hibernation feature, When unattended operation for a long time (approx.
30/60/90 minutes ), the flash will automatically standby.
Disabling Auto Power standby function is recommended when the flash is
used off camera. (C.Fn-F3, Page 39) C.Fn
- 29 - - 30 -
Pinch the flash tube holder with 2
your thumb and forefinger and
pull out the tube upwards.
