ATL Telecom AM100 User Manual
Page 10
15
ATL User Guide
AM100 M
Modem
6.
SPECIFICATION
6.2
AM100 DIMENSIONS
The overall dimensions of the unit are:
Height = 170mm
Width = 220mm
Depth = 50mm
6.2
TRANSMISSION PERFORMANCE
The transmission performance figures for 0.4mm, 0.5mm & 0.6mm wire gauges are shown below.
The 0.4mm figures are actual typical values. The 0.5mm & 0.6mm are calculated values.
0.4mm WIRE GAUGE
NOISE FREE RANGE
Km
0.5mm WIRE GAUGE
NOISE FREE RANGE
Km
LINE SPEED
64kbps
640kbps
512kbps
384kbps
256kbps
128kbps
7.4km
4.9km
3.7km
5.3km
4.2km
4.6km
6.1km
7.6km
5.6km
7.8km
9.8km
5.8km
0.6mm WIRE GAUGE
NOISE FREE RANGE
Km
6.2km
7.1km
7.8km
9.5km
9.9km
12.5km
10
ATL User Guide
AM100 M
Modem
4.
CONSTRUCTION

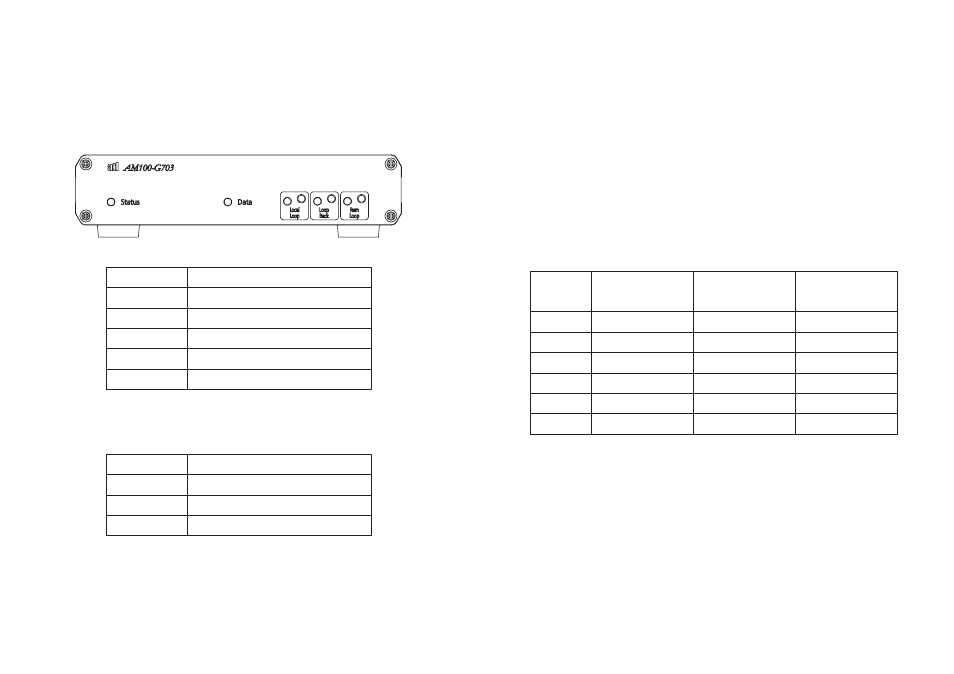

4.1
FRONT PANEL
4.1.1
AM100 G.703 VARIANT
4.1.1.1
LEDS
4.1.1.2
BUTTONS
Button
Function
Local Loop
Turns Local Loop on and off
Loop Back
Turns Loop Back on and off
Rem Loop
Turns Remote Loop on and off
LED
Function
Status
Red when not in sync, green when in sync
Data
Red when RXD data is 1, green when RXD
data is 0
Local Loop
Green when local loop is on
Loop Back
Green when loop back is on
Rem Loop
Green when remote loop is on
