TRANS-SCALER XT™ Chapter 4 : STARTING
PAGE 9
4-3. S.VIDEO INPUTS (S.V1 & S.V2)
The S.VIDEO (Super Video) signal, also called Y/C, HI-8 ™ , or S.VHS ™ , is available on most DVD players and high
quality VCR (S.VHS). The S.VIDEO signal in which the Luminance (Y) and Chrominance (C) information are separately
transmitted (2 wires) gives a higher quality picture than the Composite video signal. The S.VIDEO connector is usually a
4-pin Mini-DIN connector also called Oshiden
™ connector.

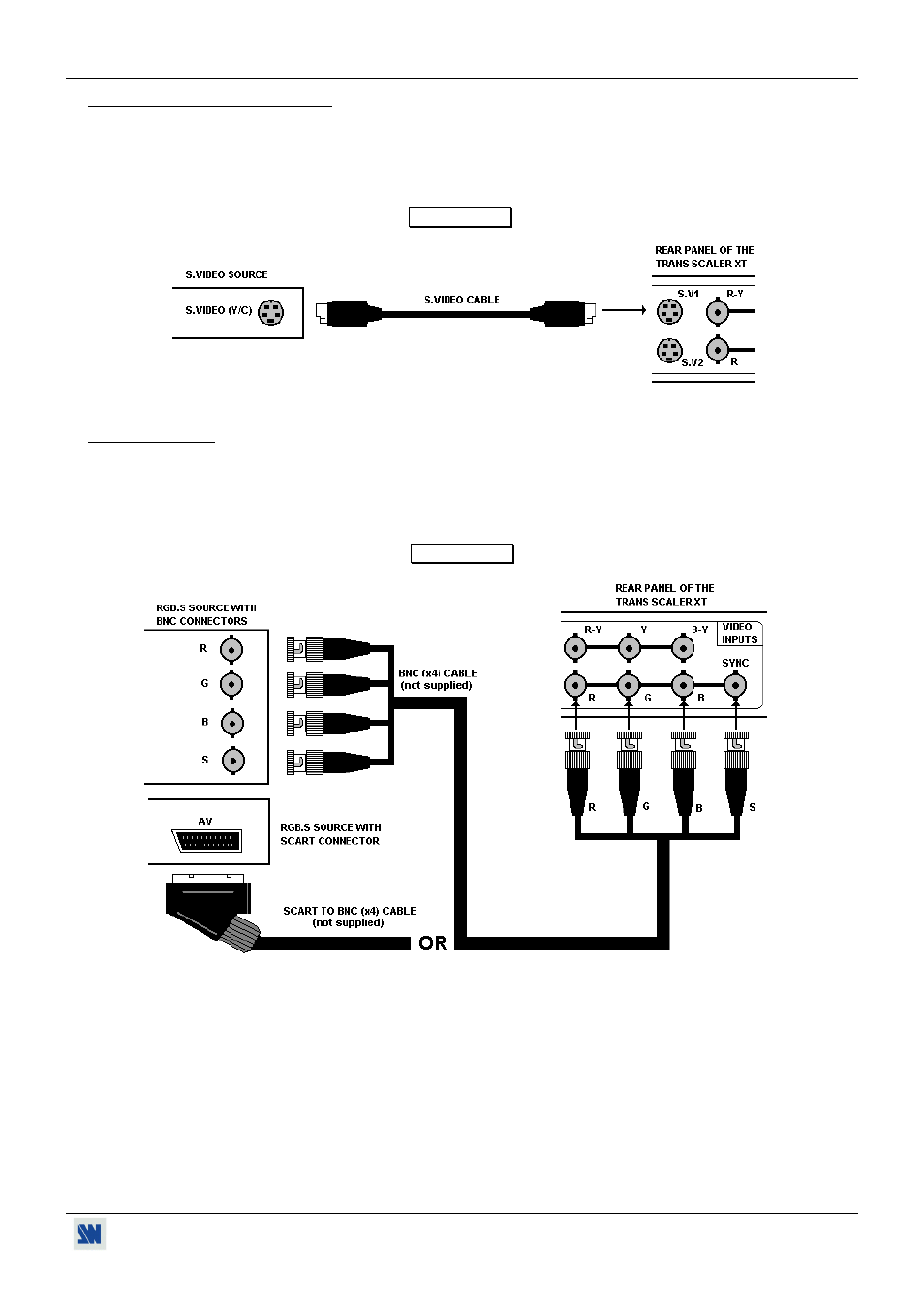

CONNECTION
4-4. RGB/S INPUT
The RGB/S signal, also called RGB Sync. is an RGB signal with COMPOSITE Sync. This signal is widely used in
broadcasting and is available on European DVD players and Satellite receivers. The RGB/S signal is transmitted with 4
coaxial cables, and also have a better picture quality than COMPOSITE or S.VIDEO signals. The RGB/S connectors are
usually BNC connectors for Broadcasting equipment, and SCART connector for DVD players and Satellite Receivers.
CONNECTION
