Page 12.
40. Install the bottom screw first and pull tight
as previously explained while a helper tightens
the screw. Start all screws but do not tighten
them yet.
41. While pushing tight against the frame, drill
a 1/8” hole through the top supplied hole into
the sheet metal. Install the shortest screw and
tighten.
WARNING: DO NOT PUSH DRILL BIT
THROUGH ANY MORE THAN NECESSARY. FUEL
SYSTEM COMPONENTS ARE ON THE OTHER
SIDE.
42. Tighten all other screws and install the
two bolts into the modified bracket.

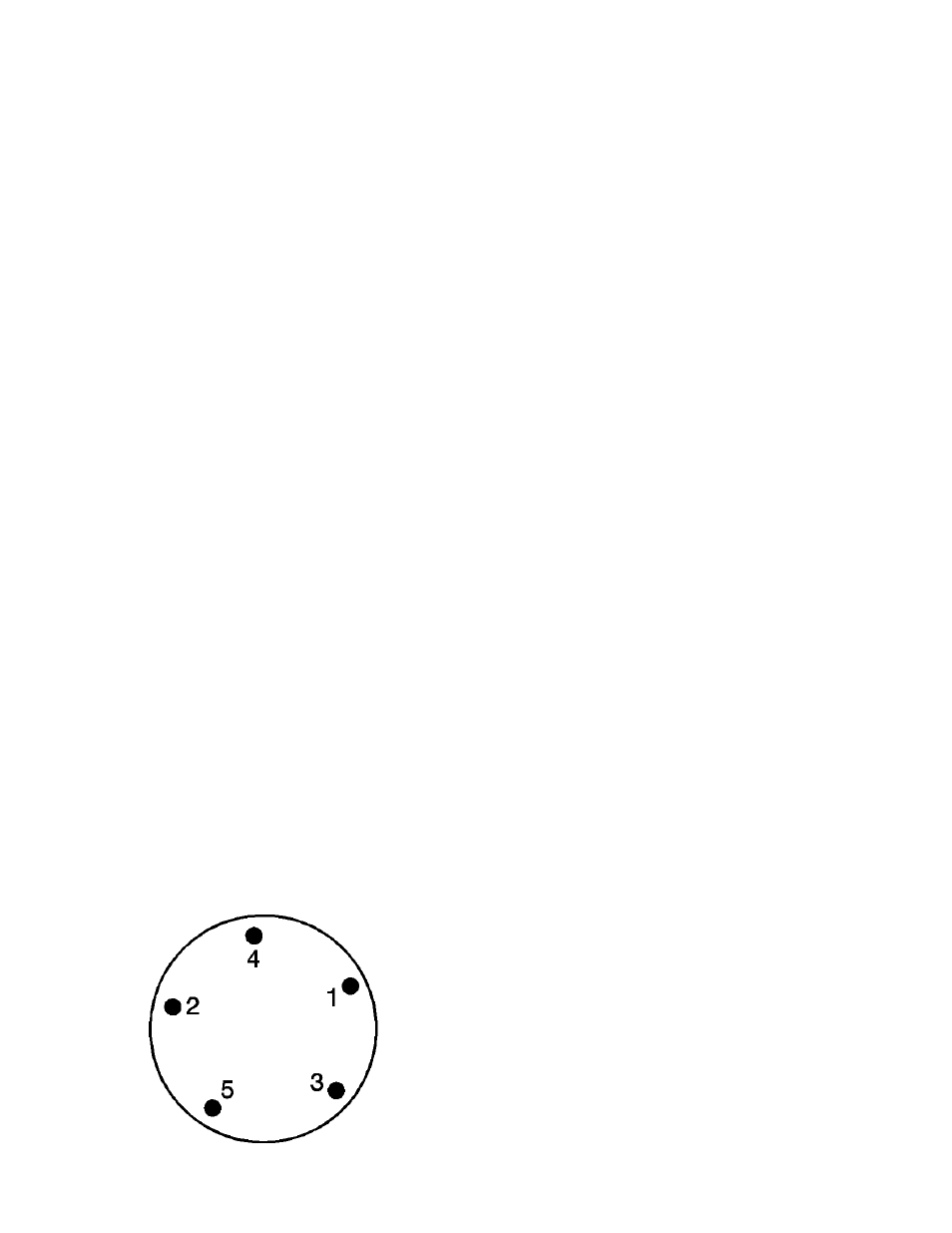

43. Torque the wheel lug nuts to 100 lb-ft
(140 Nm). Be sure to use the proper torque
sequence for a 5 bolt wheel. Remove and trim
the bottom section on the gas tank shield as
necessary to clear the new tire.
NOTE: Be sure the suspension is at full drop
and the modifications have been made to the
shocks.
