Bryant 542E User Manual
Page 6
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

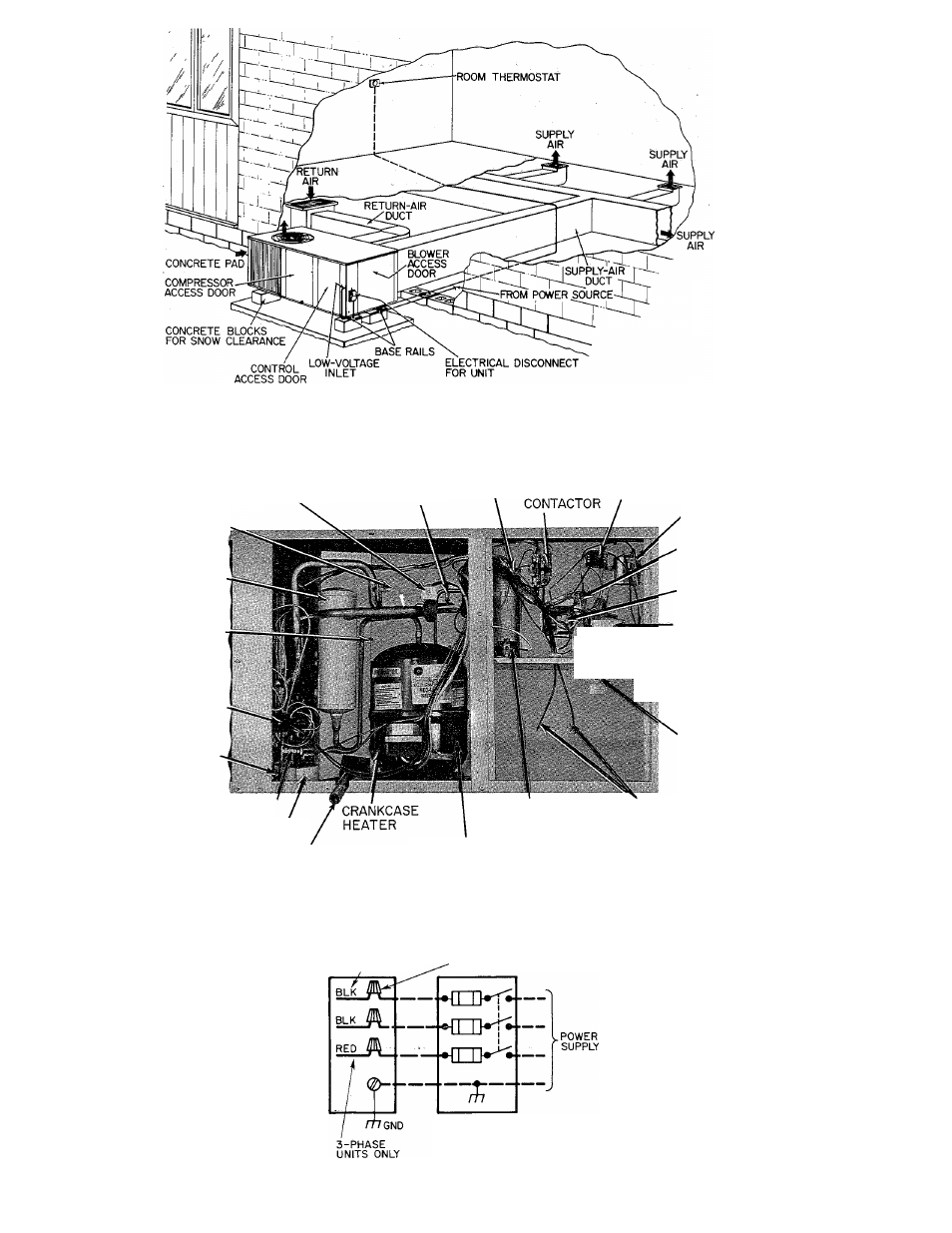

Figure 11—542E Typical Ground Level Installation
Into Crawl Space
A79242
REVERSING VALVE
ASSEMBLY .
HIGH-PRESSURE
SERVICE FITTING
DUAL CAPACITOR
(COMPRESSOR
a
FAN MOTOR)
LOW-PRESSURE
SERVICE FITTING
ACCUMULATOR
ACCUMULATOR
FUSIBLE
PLUG
DEFROST
THERMOSTAT
METERING
DEVICE
BLOWER MOTOR
RELAY
BLOWER MOTOR
CAPACITOR
DEFROST
RELAY
DEFROST
TIMER
TRANSFORMER
------ .S
i
LOW-VOLTAGE
-
-------- - \ TERMINAL
\ BOARD
LOW-VOLTAGE
INLET HOLE
CHASSIS
GROUND
CONNECTION
LOW-PRESSURE SWITCH
INDOOR COIL DRAIN PAN
I MPT PLASTIC DRAIN FITTING
^(SHIPPED TAPED INSIDE
QUICK-START PTC
THERMISTOR
COMPRESSOR
HIGH-
VOLTAGE
PIGTAIL
LEADS
COMPRESSOR COMPARTMENT)
Figure 12—Partial Side View With Compressor & Control
Access Panels Removed (Model 542E036, 208V-230V—1)
A79243
HIGH-VOLTAGE
PIGTAIL LEADS
FIELD SPLICE
FIELD-SUPPLIED
FUSED DISCONNECT
SWITCH
A79244
Figure 13—Field High-Voltage Connections
-
6
-
