14. Changing the bolt head

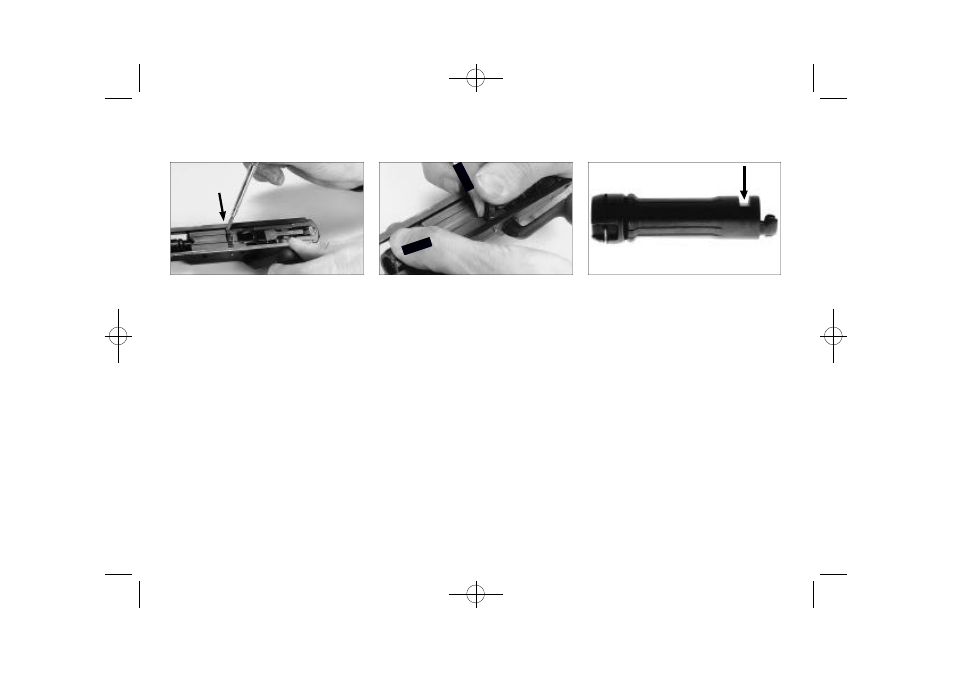

fig. 14 fig. 15 fig. 16
14.1 Changing the bolt head
N O T E :
It is advisable to have this operation
explained by your Blaser dealer.
• Unload the rifle (see chapter 10).
• Remove the bolt assembly from the
rifle (see chapter 11).
• Place bolt assembly upside down on a
flat surface.
• With a small screwdriver or similar tool
push the retaining latch to the left side
and up (fig. 14).
• Grasp the retaining latch with thumb
and forefinger and push to the left.
With your other hand pull the bolt
head out of the bolt assembly (fig. 15).
14.2 Installing the bolt head
• Grip the new bolt head to be installed
and line up the two grooves of the
expanding shell and bolt head by turn-
ing them in relation to each other (fig.
16).
