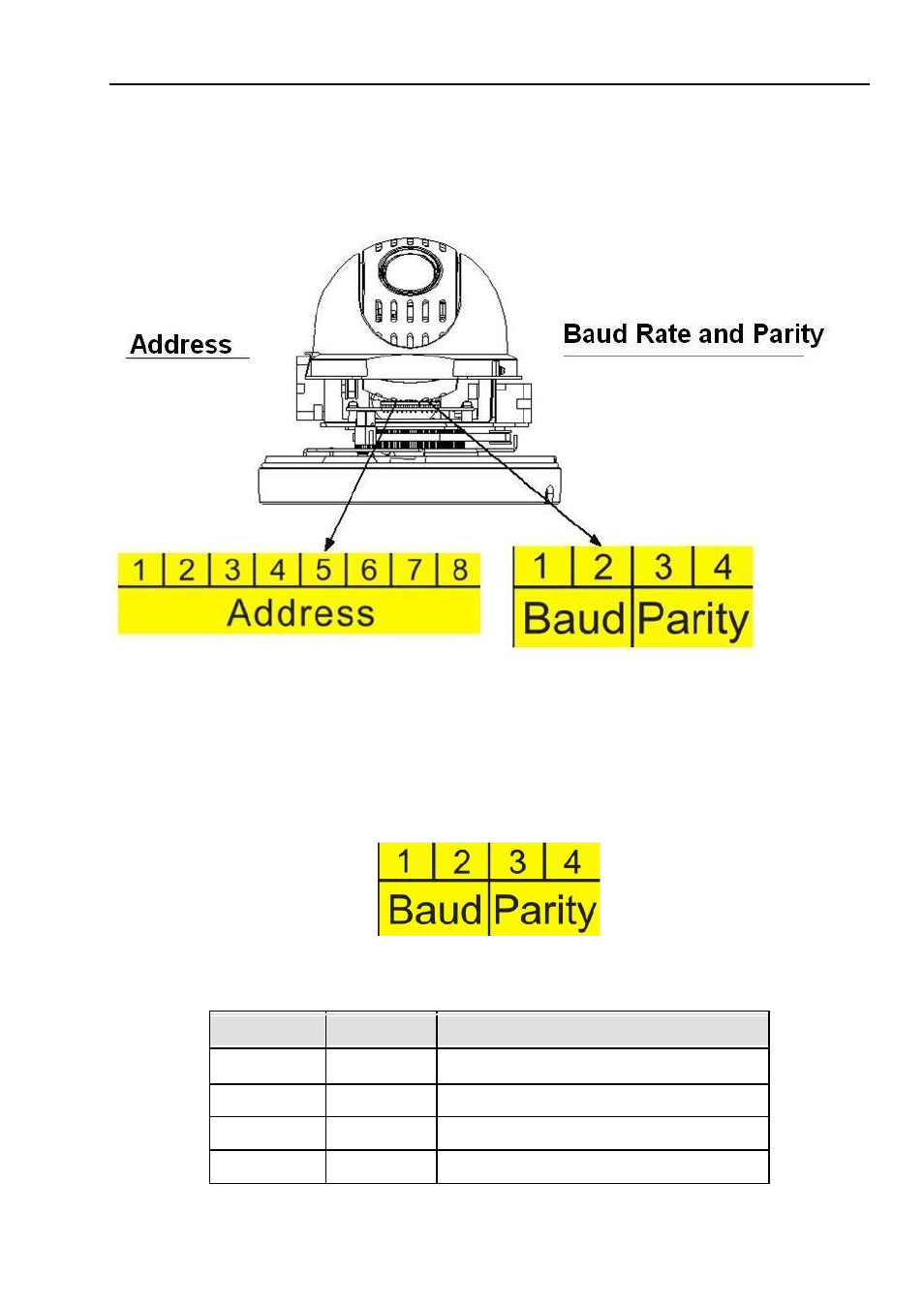

Open the transparent enclosure, there are two dial switch buttons on the PCB of one side of the
speed dome (There are labels.). You can use them to set speed dome protocol, baud rate, address
and etc. See Figure 2-2 .
After setup, you need to click on-off button or go to the OSD menu to select restart option to
reboot the device to activate new setup.
Figure 2-2
2.2.2 Baud Rate and Parity
Please note the IR speed dome can automatically recognize the industrial standard protocol,
PELCO-D. PELCO-P. Usually you do not need to set the protocol.
The interface is shown as in Figure 2-3.
Figure 2-3
Please refer to the baud rate sheet for detailed information.
1 2 Baud Rate
OFF OFF 9600bps
ON OFF 4800bps
OFF ON 2400bps
ON ON 1200bps
