Insulated Backsplash Installation
1. Follow steps 1 through 3 of the Backsplash Installation instructions.
2. Slide the top flange behind the lower rear edge of the hood. Secure the bottom flange to the wall
using stainless steel sheet metal screws. See Figure 20.
3. If there are multiple insulated backsplash sections, install the others now.
4. Caulk the seams between the wall and the insulated backsplash panel after the hood(s) and hood
accessories have been installed.

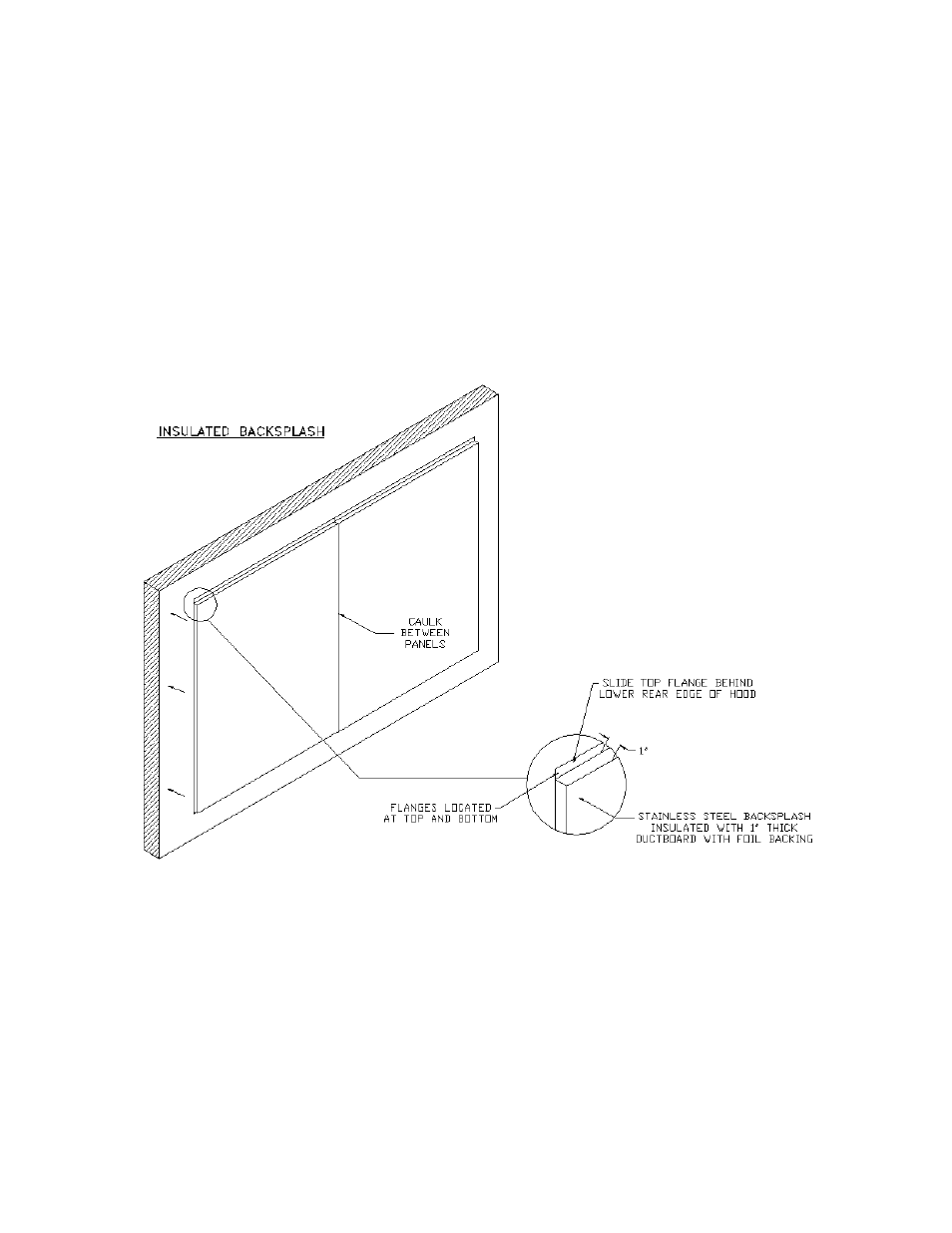

Insulated Backsplash
Figure 22
