Hollywood Racks HR1000 SportRider 2 bike version 2 User Manual
Page 4

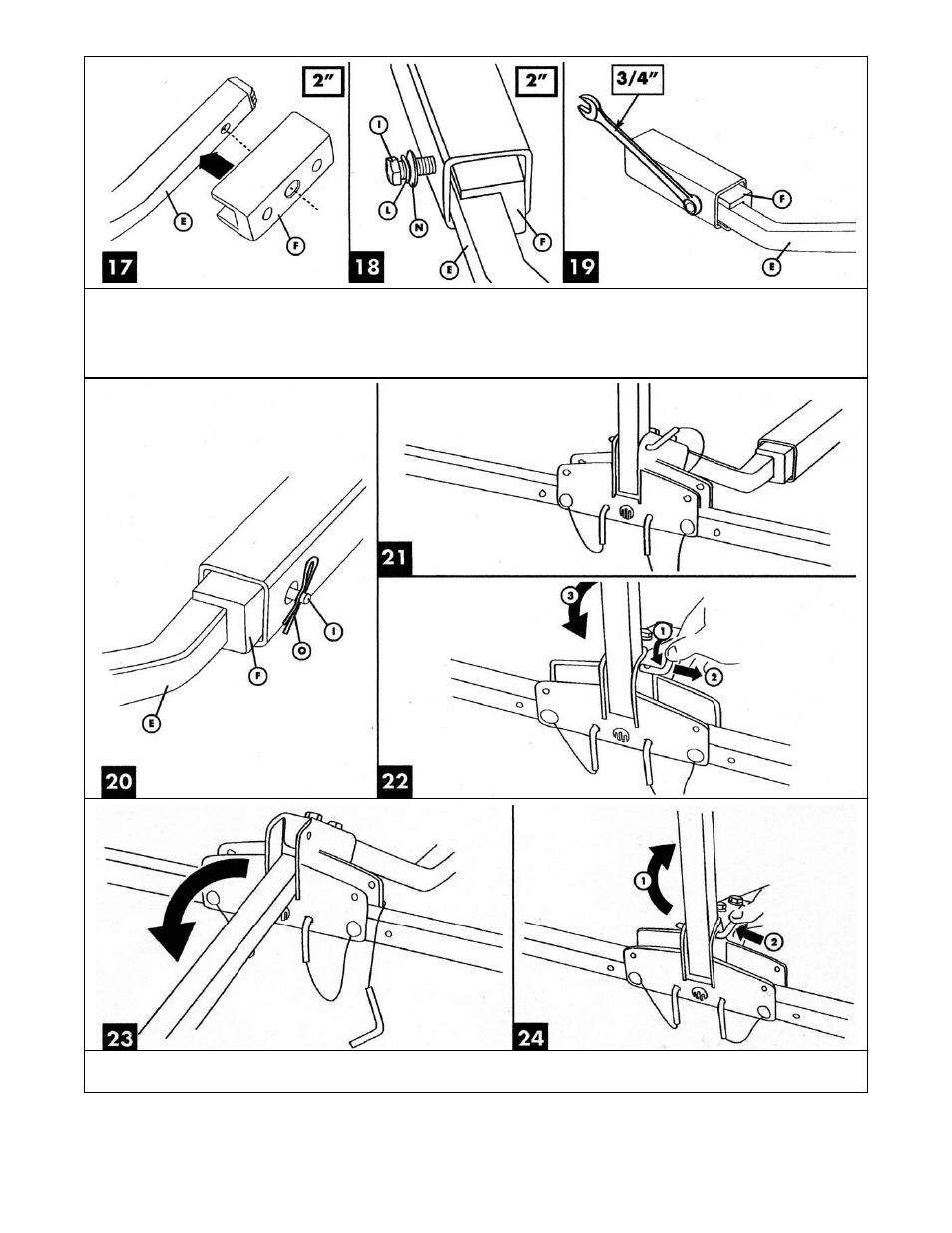

If your vehicle has a 2” receiver, you will need to attach the black “U’ shaped adapter F. Line up center hole
of the adapter with the hole on the rack’s insert tube E. Place lock washer L and washer N onto hitch pin bolt
I.
Align the holes, insert the bolt and tighten securely using a ¾” wrench.
IMPORTANT!! After tightening the
hitch pin bolt, insert clip O through
the hole on the end of the bolt.
To fold down the vertical post, rotate and remove the side-retaining pin as shown.
4
