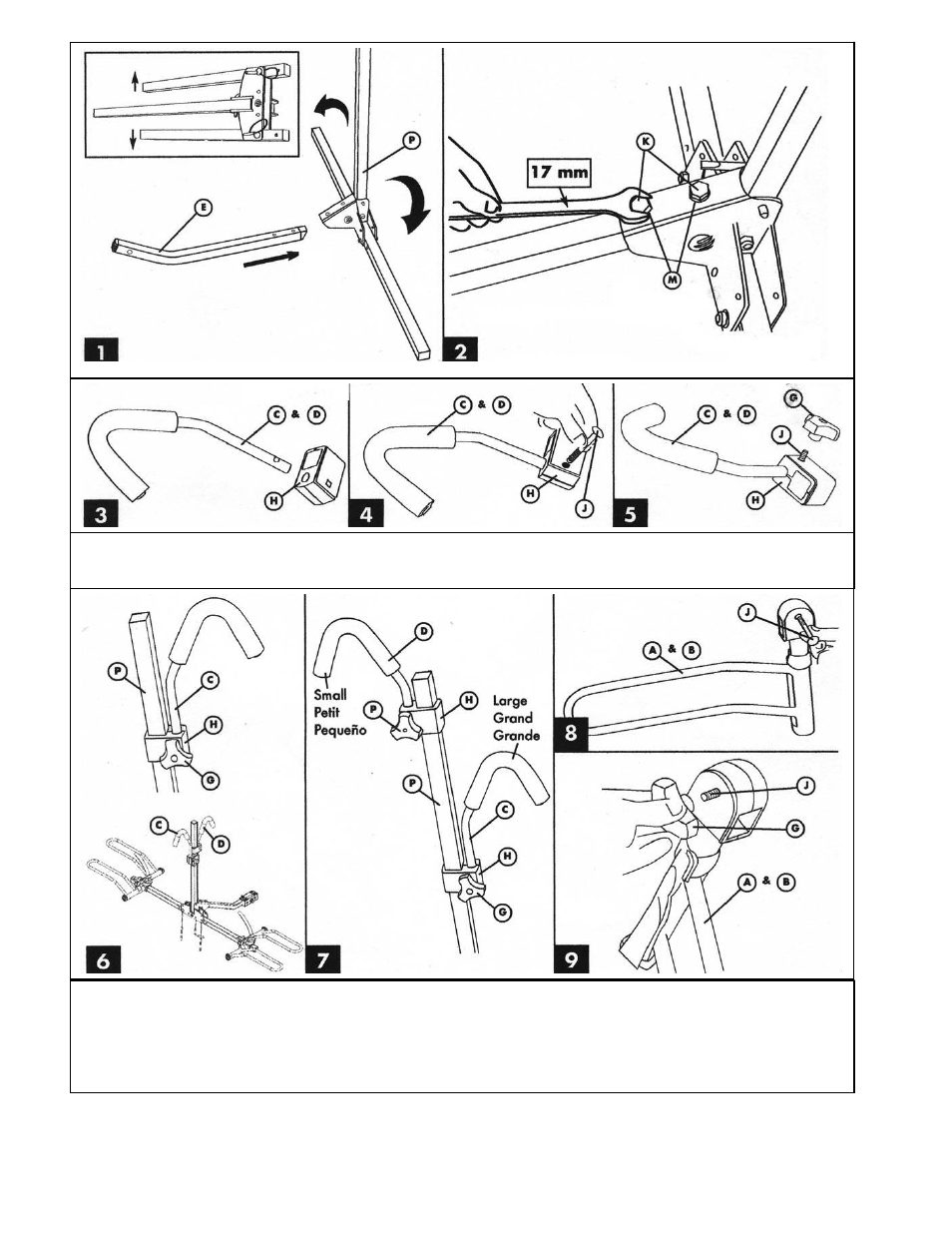

Remove retaining pins, rotate
wheel tray support tubes down,
reinsert retaining pins. Install insert
tube E into bracket. Align holes on
insert tube with holes on bracket.

Place washers M onto
bolts K, install with 17mm
or adjustable wrench.
Tighten bolts securely.

Assemble frame hooks C & D to frame hook clamp H using carriage bolts J and knobs G.
Be sure hooks are positioned per drawing.

Place LONG hook assembly C onto the vertical post, facing the front of the rack. Then place the SHORT hook
assembly D on the insert tube side of the rack.

Assemble the carriage bolts J and knobs G to the wheel holders A and B. Be sure that the knob is on the
“strap side” of the wheel holder.

2
