Craftsman 917.254611 - Manual (Page 33)

12 HP 38” RIDING LAWN TRACTOR - - MODEL NUMBER 9.17.254611
DRIVE
REPAIR PARTS
KEV PART DESCRIPTION
W NO.
1 126126X
*
Engine, 12 HP, Tecumseh, Model
Number 143,408152
2 10S731X Pulley, Eneine
3 13200300 Elbow' STD 90 3/8 -18 NPT
4 STD551143 * Washer, Lock, Hvy Helical Spring
5 74770720 Bolt. Нек 7/16 20 к М/4
6 12S907X V Belt. Drive
7 12298ЭХ Muffler
8 2949R Gasket
9 101326L Deflector, Muffler
10 12352вХ Screw, Hex Head Cap
11 STD551131 •Washer- Lock 5/16
12 12121BX Keeper, Belt, Engine
13 STD551031 Washer 11/32x11/16x16Ga.
14 17490620 Screw, Hex Washer Thd Rolling
3/8x 16xM/2
15 STD5S1125 • Washer,Lock, Hvy. Helical Spring
16 122372X
Transaxle, Tecumseh 5 Speed,
143,920037 (See pages 40 and 41)
17 STD523727 • Bolt. Нек 3/8 16 X 2 3/4
18 STD541437 •Nut, Crownlock 3/8 16
19 73680500 Nut, Crownlock 5/16 X 18
20 123666X Pulley, Transaxle
21 12000028 Ring, Retainer
22 109167X Bracket Transaxie
23 STD523710 • Boil Hex 3/8 16 X 1
24 17490512 Screw. Hex Washer Thread Rolling
5/16-18 X 3/4
25 108171X Support. Battery
26 123662X Keeper 8eit. L H
27 4921H Retainer Spring
28 10ei90X Clamp
29 STD523107 * Soil- Hex 5/16 18 X 3/4
30 STD541437 • Nut, Crownlock 5/16 X 16
31 123770X Strap Locator
32 123663X Keeper Belt. R H
33 STD523707 • Boll, Hex 3/8-16 X 3/4
34 121748X Washer 25/32 x 1 5/8 x 16 Ga
35 Ш6933Х Knob Shift
36 124379X Rod Shift
37 71040412 Bolt Hex 1/4-28 X 3/4
38 105701X Washer Shift Plate
39 STD561210 * Cotter Pin, 1/8x1
40 19151216 Washer 15/32 x 3/4 x 16 Ga
41 104777X Retainer Belt
42 17490612 Screw, Hex Washer Thd Rolling 3/B
16x3/4
43 19131312 Washer 13/32 x 13/16 x 12 Ga
44 105730X Keeper, Bell. Engine
45 10Э070Х Retainer Belt
46 4470J Spacer
47 123674X Idler Flat
A В C D E F
KEY PART DESCRIPTION
NO. NO
48 123766X Pulley, Idler
49 123789X Arm, Idler
50 STD523715 ' Bolt. Hex 3/B 16x11.2
51 105709X Spring, Return. Clutch
52 110B12X Washer Hardened
53 12000039 Ring Klip '
54 105710X Link, Clutch
55 STD561210 . Pin Cotter 1/8x34
56 123102X Bracket. Clutch
57 110437X Rod Brake
58 106888X Spring, Rod, Brake
59 73350600 Nut Jam 3/8 16
60 19131316 Washer 13/32 x 13 16 x 16 Ga
61 12563BX Rod Brake, Parking
62 1242Э6Х Cap Plunger
63 122424X Shaft Foot Pedal
64 8883R Cover Pedal
66 121749X Washer 25/32 x 1 1 4 x 16 Ga
66 STD571810 ’ ■ Pm. Roll 3/16 X 1
67 120183X Bearing, Nylon
68 123583X Key, Square, 2.5 x ,1845/. 1865
69 13280324 Nipple. Pipe 3/8 NPT 3"
70 59192 Cap Valve
71 65139 Stem, Valve
72 3588R Tire, Rear
73 106108X Rim Assembly, B", Rear
74 109501X Spacer
75 2751R Clip, Fuel Line
76 12000001 E Ring
77 121520X Strap, Torque Transaxle
78 STD533707 ’ Bolt. Carnage 3/8 16 x 3/4
79 110422X Spring Brake
80 105706X Bearing
81 123205X Retainer Beh
82 17030808 Screw Spider Lock No 8-18
X 1/2 ABTPS
83 105700X Spring
84 108843X Plate. Shift
85 19091210 Washer 9/32 x 3/4 x 10 Ga
86 11050600 Washer Lock Ext Tooth 3/8
87 7152J Tube Tire (not lurmshed with tractor)
88 121851X Spark Arrester
89 STD551062 • Washer 21/32 x 1 x 16 Ga.
90 74760540 Boh, Hex 5/16x16x2-1/2
91 104757X Cap, Hub
92 STD58002S • Key, Woodruff #9 3/16x3/4
93 126629X Decal, Craftsman/Teoumseh 12 HP
94 STD541437 * Nut, Lock Hex w/wsh ins 3/8-16
95 *— See Key No. 72, Page 43

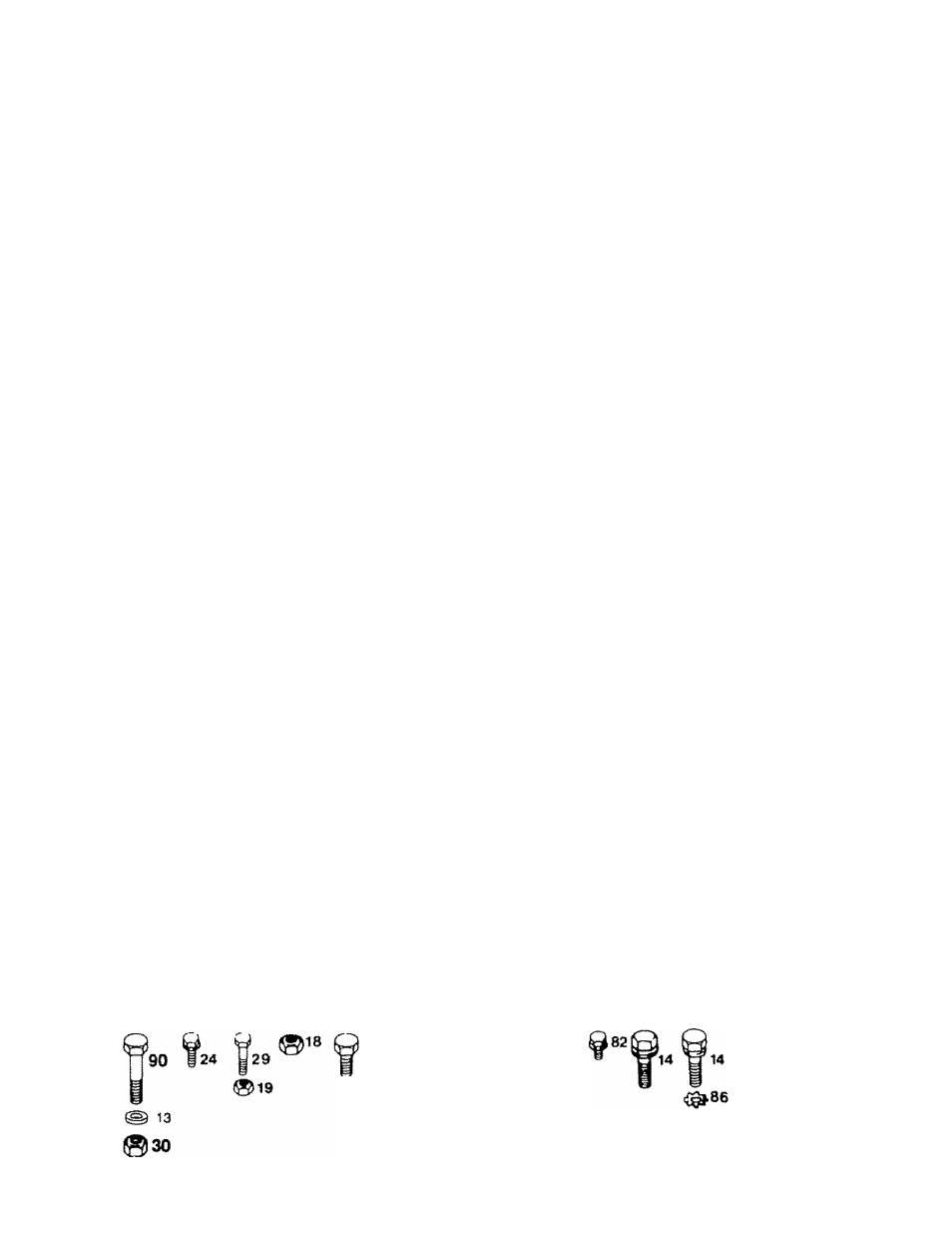

•STANDARD HARDWARE PURCHASE LOCALLY
NOTE: All component dimensions given in U S inches
1 inch = 25.4 mm.
H a к L M
