REPAIR PARTS
12 HP 38” RIDING LAWN TRACTOR - - MODEL NUMBER 917.254611
ELECTRICAL
IS9
iO

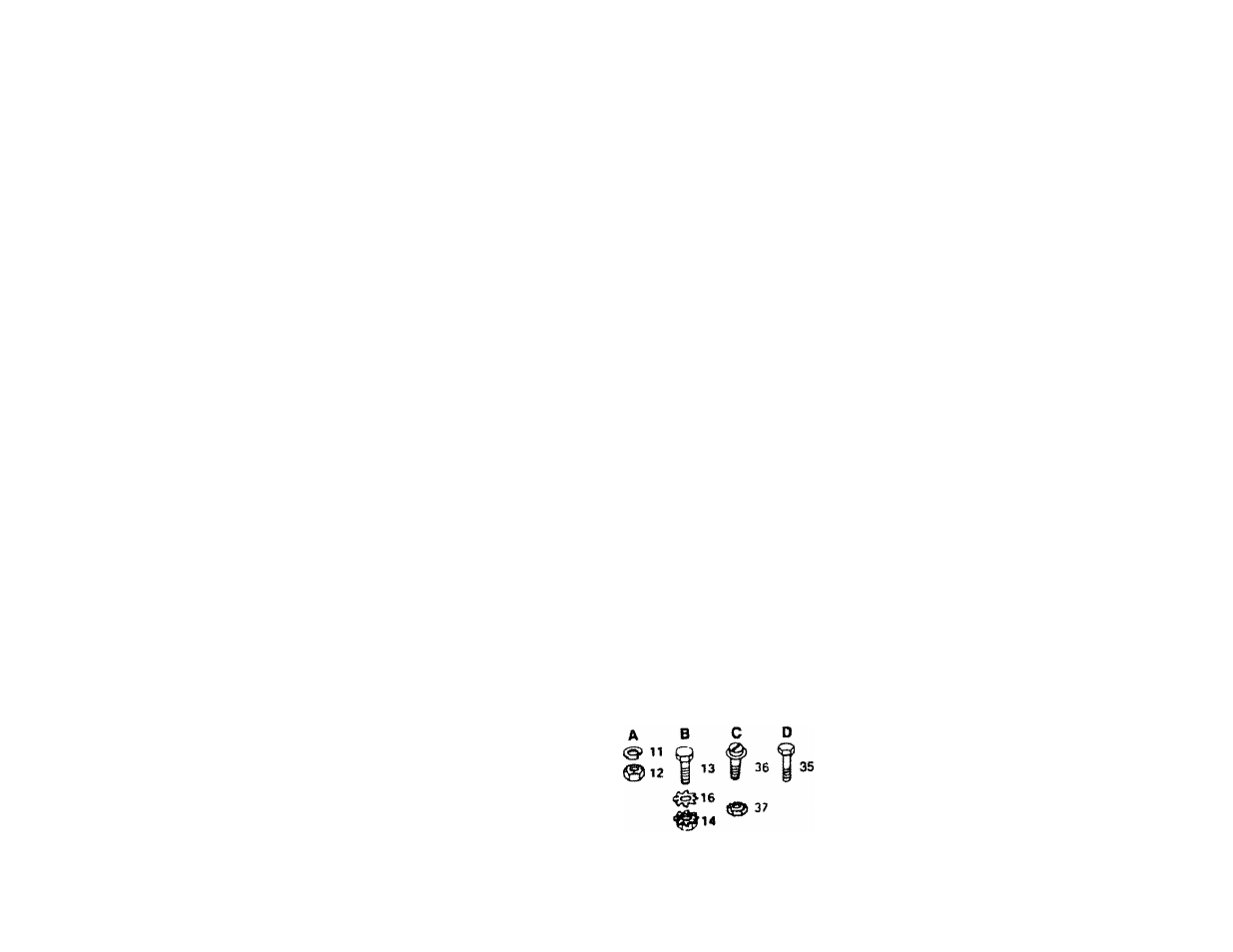

KEY PART DESCRIPTION
NO. NO.
1 7662J Bulb, Light
2
124108X Harness, Light Socket
3 126399X Harness, Wiring
4 10931OX Key. Molded
5 110712X Switch, Light
6 104446X Switch, Interlock
7 7603J Tray, Battery
8 109596X Clamp, Hose
9 STD365402 • Switch, Ignition
10 108824X Fuse. 30 Amp
11 STDS51125 * Washer, Lock, 1/4
12 STD541225 • Nut. Hex Jam 1/4 20
13 STD5^50S . Bolt, Hex, 1/4 20 X 1/2 Gr, 5
14 STD541425 • Nut. Keps 1/4 20
15 108423X Cable Assembly
16 11050400 Washer Lock. Ext. Tooth, 1/4
17 719J Cover, Terminal
18 5114J Cable, Battery
19 109553X Switch, interlock
20 4207J Cable, Batterv
21 STD522507 • Bolt, Hex. 1/4 20 X 3/4
22 STDS51025 • Washer 9/32 x 5/8 x 16 Ga.
23 STD541025 • Nut, Hex 1/4-20
24 121265X Battery, 12V„ 25 Amp
25 102476X Terminal Guard
26 123198X Wing Nut 1/4-20
27 STD551125 • Washer, Lock Hvy Helical Spring
KEY
NO. PART
NO. DESCRIPTION
28 72240460 Bolt Rd. Hd. Sq. Nk. 1/4 20 x
7-1/12
29 10908IX Solenoid
30 109787X Bezel ' ignition
31 109788X Nut, Ignition
32 7192J Cable Tie
33 105687X Tube, Plastic
34 121305X Switch, Plunger
35 STD601005 • Screw,Tap Hex Hd. #10 x 24 UNO
36 74641008 Screw - Slotted Pan Hd. No, 10-32 x
1/2
37 73951000 Nut Keps No. 10-32 x 1/2
38 4171H Clip Insulated
39 121264X Battery Caps Set
41 11150400 Lockwasher 1/4 Internal Tooth
— 101539X Sheet, Instruction, Tractor, 15®
— 126795X Owner’s Manual
NOTE: All component dimensions given in U.S. inches,
1 inch » 25.4 mm.
•STANDARD HARDWARE -PURCHASE LOCALLY
