Craftsman 917.276310 - Manual (Page 43)

TFiACTOR - - MODEL NUMBER 917.276310

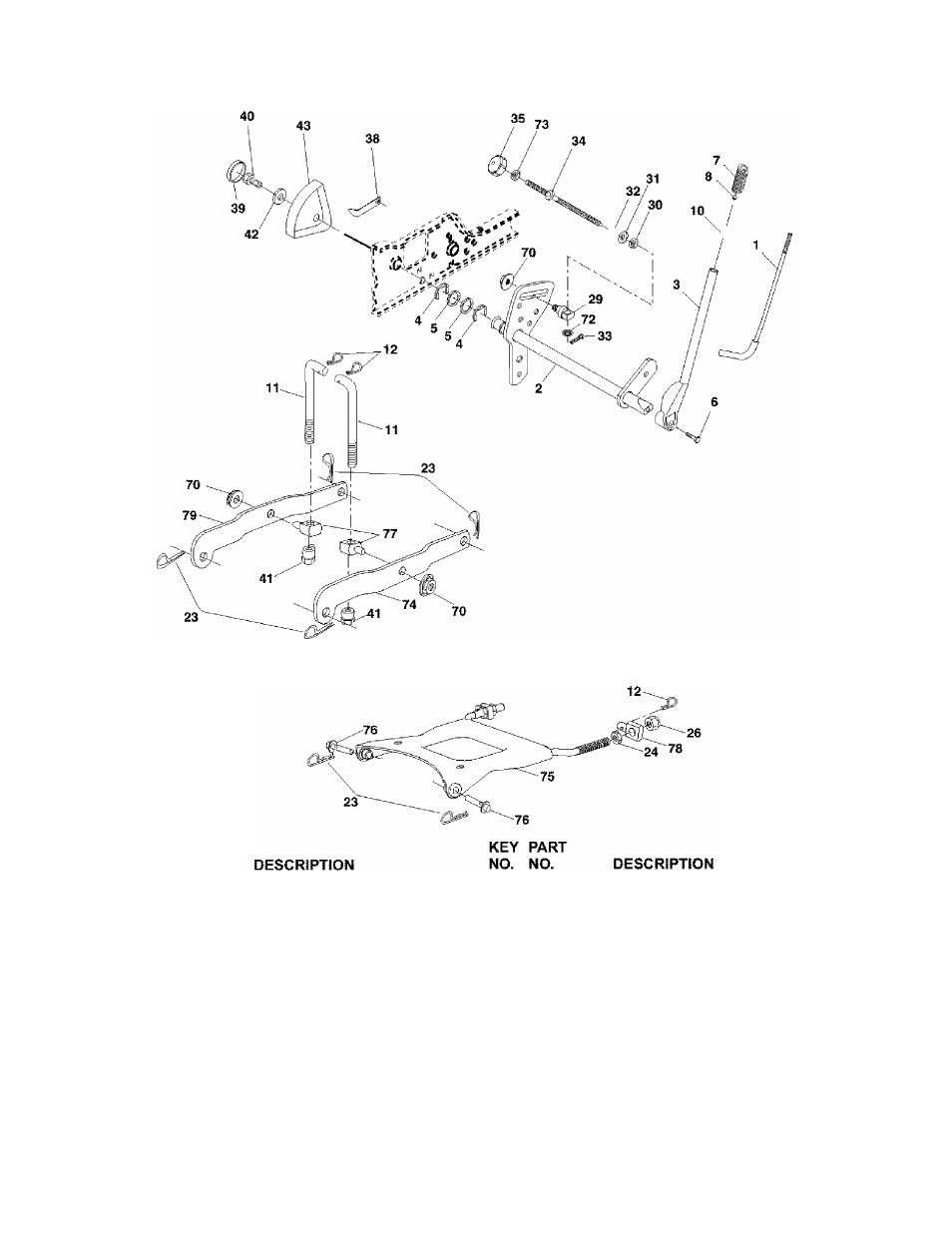

LIFT ASSEMBLY
KEY PART
NO. NO.
1
2
3
4
5
6
8
10
11
12
23
24
26
29
30
31
32
33
121006X
180045
159189
12000022
19292016
71110624
175830
175831X505
183894
175375
STD624008
73350800
73680800
150233
110807X
19131016
137150
STD560907
Rod Asm., Lever
Shaft Asm., Lift Vgt
Lever Asm., Lift Rh
E-Ring Truarc #5133-87
Washer 29/32 x 1-1/4 x 16 Ga.
Bolt, Fin Hex 3/8-16 unc x1-1/2
Grip, Handle Fluted
Button, Plunger
Spring 0.62 00x2.125
Link Lift
Retainer Spring
Retainer, Spring
Nut, Jam Hex 1/2-13 unc
Nut, Crownlock 1/2-13 unc
Trunnion, Infin Height
Nut, Special
Washer 13/32 x 5/8 x 16 Ga.
Spring, Compression inf Hgt
Pin, Cotter 3/32 X 1/2
43
34 137167 Rod, Adj Lift
35 138057 Knob, Inf 3/8-16 unc
38 155097 Pointer, Height Indicator
39 123935X Plug, Hole
40 17060516 Screw 5/16-18 X 1
41 175994 Nut, Lift Link 7/16-20
42 19112410 Washer 11/32 X 1-1/2 X 10 Ga.
43 123934X Scale, indicator Height
70 145212 Nut Hex Flange Lock
72 110452X Nut Push Phos & Oil
73 73350600 Nut Hex Jam 3/8-16 unc
74 175802 Arm Susp. RR. RH
75 175805 Plate Asm Susp. Front
76 175560 Pin Flange
77 176205 Trunnion Susp. Arm
78 175689 Trunnion Susp. Front
79 175378 Arm Susp. RR. LH
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
