4
.

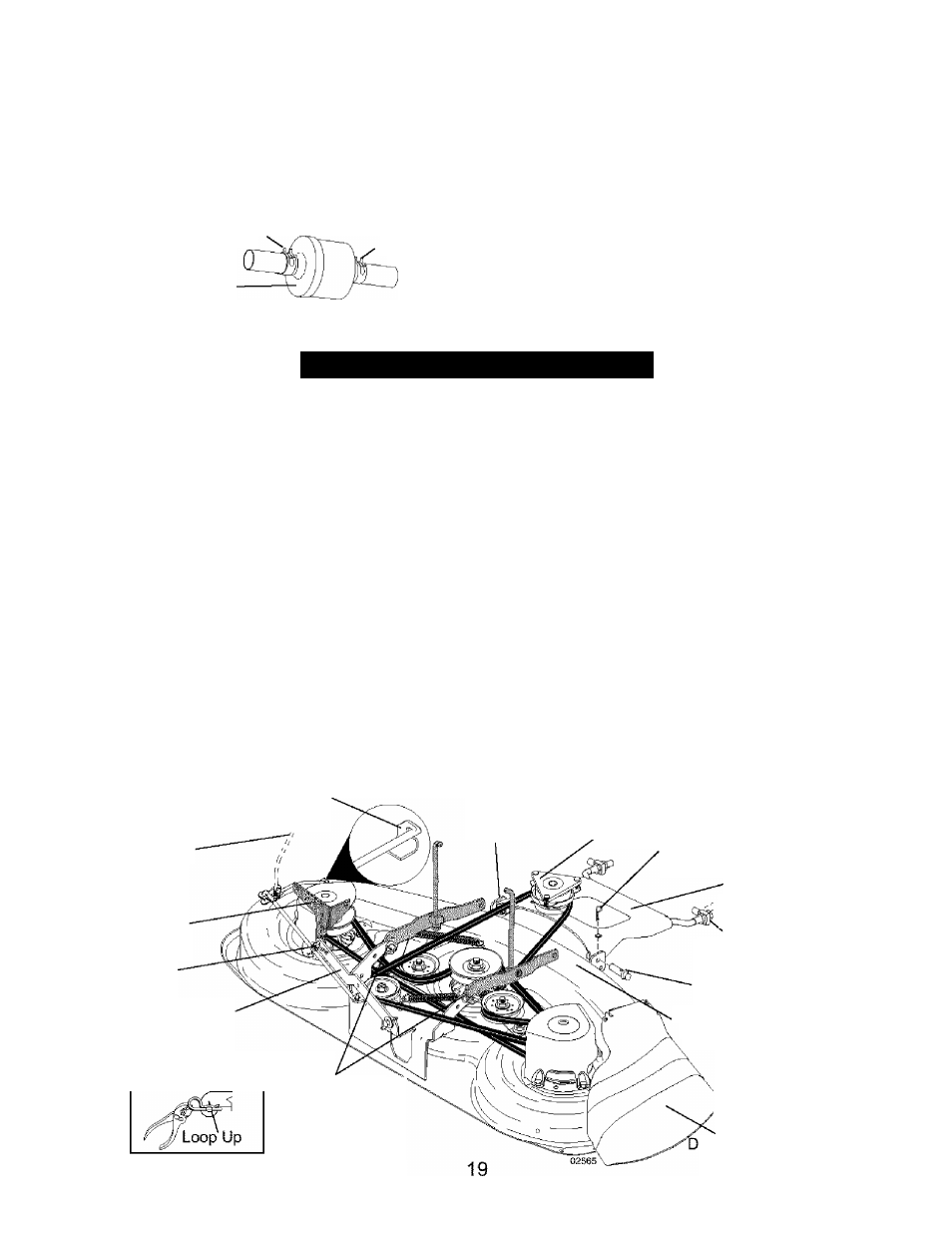

With engine cool, remove filter and
plug fuel line sections.
Place new fuel filter in position in fuel
line with arrow pointing towards carbu­
retor.
Be sure there are no fuel line leaks
and clamps are properly positioned,
immediately wipe up any spilled gaso­
line.
Clamp
Fuel Filter
Clamp
CLEANING
• Clean engine, battery, seat, finish, etc.
of all foreign matter.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
• Protect painted surfaces with auto­
motive type wax.
We do not recommend using a garden
hose or pressure washer to clean your
tractor unless the engine and transmis­
sion are covered to keep water out. Water
in engine or transmission will shorten the
useful life of your tractor. Use compressed
air or a leaf blower to remove grass,
leaves and trash from tractor and mower.
SERVICE AND ADJUSTMENTS
A
WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER­
VICE OR ADJUSTMENTS:
1. Depress clutch/brake pedal fully and set parking brake.
2. Place gearshift lever in neutral (N) position.
3. Place attachment clutch in “DISENGAGED” position.
4. Turn ignition key to “STOP” and remove key.
5. Make sure the blades and all moving parts have completely stopped.
6. Disconnect spark plug wire from spark plug and place wire where it cannot
come in contact with plug.
TRACTOR
JQ (y|Qyy^|!^
1. Place attachment clutch in “DISEN­
GAGED” position.
2. If equipped, turn height adjustment
knob to lowest setting.
3. Lower mower to its lowest position.
4. Disengage belt tension rod from lock
bracket.
Lock Bracket
Belt Tension Rod ,
(Disengaged
Position)
Chassis
Bracket
Retainer
Spring
^ CAUTION: Rod is spring loaded. Have
a tight grip on rod and release slowly.
5. Remove retainer spring holding
anti-swaybar to chassis bracket and
disengage anti-sway bar from bracket.
6. Remove four retainer springs from front
plate assembly and remove plate.
7. Remove retainer springs from suspen­
sion arms at deck and disengage arms
from deck.
Front Mower
Bracket Electric Clutch Pulley
’ Double Loop
Retainer Springs
Front Plate
Assembly
Single Loop
Retainer Springs
Flanged Pins
Anti-Sway Bar
USE PLIERS FOR
RETAINER SPRINGS
Front Mower
Bracket
Suspension Arms
Double Loop
Retainer Springs
(Outward pointing
deck pins)
eflector Shield
