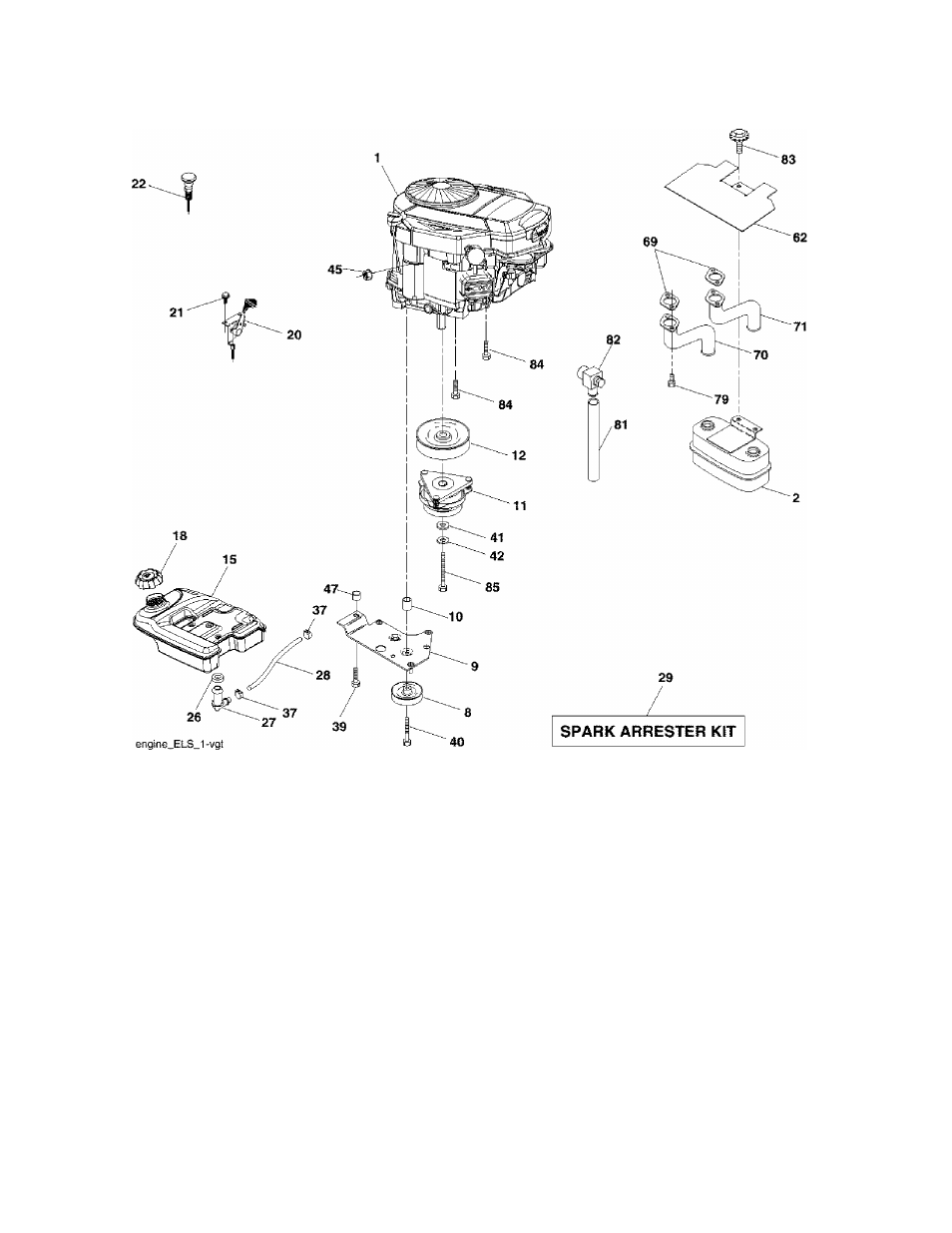

TFiACTOR - - MODEL NUMBER 917.276310
ENGINE
KEY
PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
Engine Briggs Model No.
40
17490664
Screw TT 3/8-16 x 4 unc
446677-0470-E1
41
126197X
Washer
2
149723
Muffler
1-1/2 OD
X
15/32 ID
X.
250
8
121361X
Pulley V-ldler
42
STD551143
Washer Lock 7/16
9
Keeper Asm. Belt Engine
45
73510400
Nut Keps Hex 1/4-20 unc
10
175287
Bushing
47
175288
Bushing
11
179335
Clutch Electric
62
146629
Shield Heat Muffler
12
143996
Pulley Engine VGT Elect Clutch
69
165391
Gasket
15
179115
Tank Fuel Rear 5.0 Yt/Gt
70
176069
Tube Exhaust LH
18
179124X428 Cap Asm
71
176070
Tube Exhaust RH
20
175437X428 Control Throttle
79
183906
Screw Socket Head
21
191611
Screw 10x3/4 Single Lead-Hex
81
188800
Tube Drain Oil Easy
22
187767X428 Control Choke
82
188799
Valve Oil Drain
26
3645J
Bushing
83
171877
Bolt 5/16-18 unc x 3/4 W/ Sems
27
139277
Stem Tank Fuel
84
17060624
Screw 3/8-16
X
1-1/2
28
188669
Fuel Line
85
179953
Bolt Hex 7/16-20x3.75 Gr. 5
29
137180
Spark Arrester Kit
37
123487X
Clamp Hose
NOTE: All component dimensions given in U-S. inch<
39
17490636
Screw TT 3/8-16
X
2-1/4 unc
1 inch = 25.4 mm
