Bolt On New Steering Arm Weldment
Refer to Figure 19
29. Make sure the larger diameter of the tapered hole
faces up and the smaller diameter of the hole faces
the ground. The tie rod will not fit if this is reversed.
Null4:
Refer to Figure 20
30. Slip new weldment over old caster arm lining up the
three holes. Using the 3 new sets of bolts, washers,
and nuts provided with kit, secure in place.
802-312C HHCS 3/4-10X3 1/4 GR5
804-025C WASHER FLAT 3/4 SAE PLT
804-023C WASHER LOCK SPRING 3/4 PLT
803-027C NUT HEX 3/4-10 PLT
Null4:

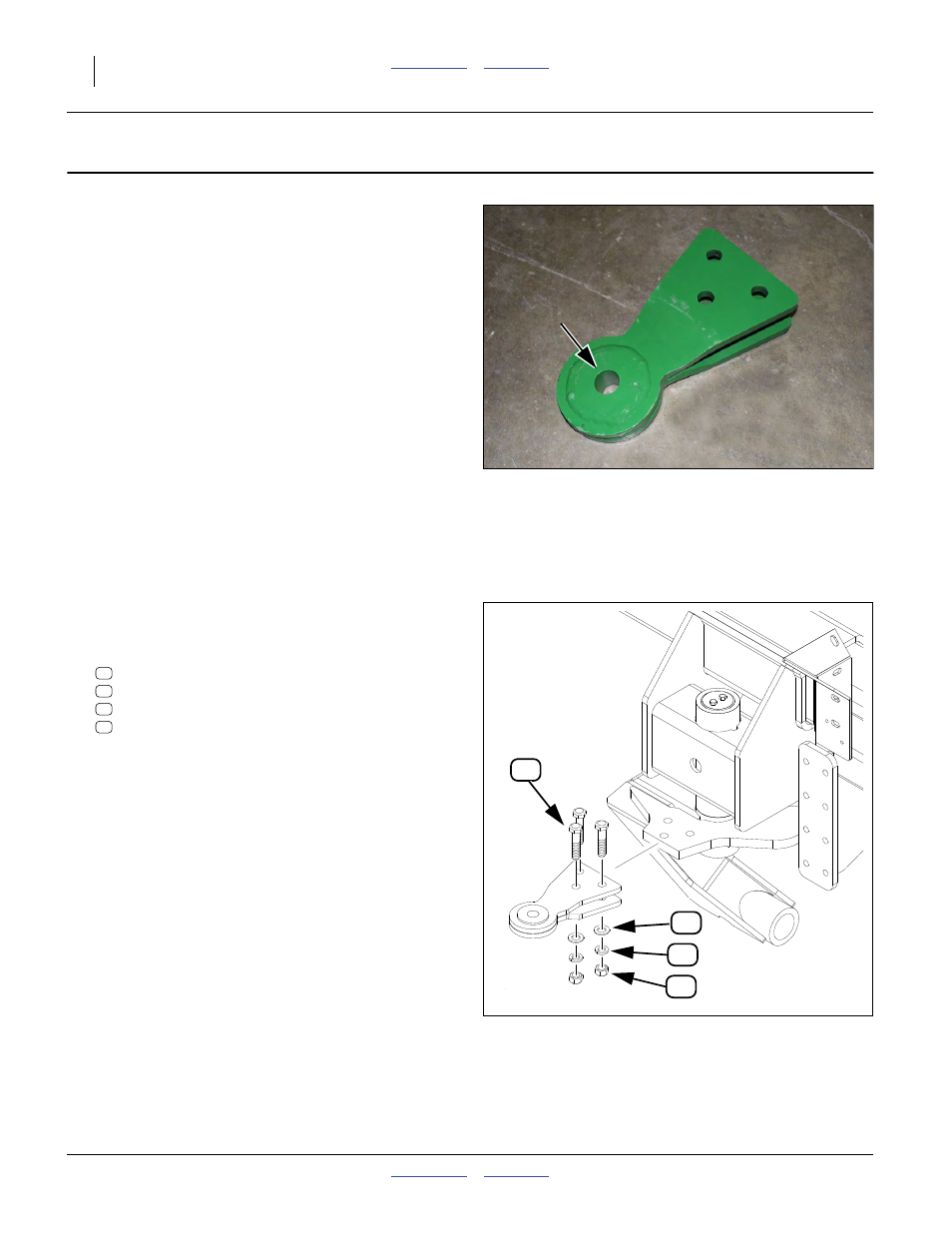

Figure 19
New Steering Arm Weldment Tapers
31908
Null4:
Figure 20
Bolt New Weldment on Caster Arm
31894
