1. I NTRODUCTION W HEATHEART - X13 S ERIES A UGERS
1.1. O VERVIEW X1374, X1384, X1394
8 30787 R1
1.1. OVERVIEW
X13 augers are equipped with standard features that include a hydraulically
controlled main auger tube lift, a low-profile grain hopper (left or right side
operation), service access doors, and a PTO driveline for auger power.
Available option kits include:
• Hydraulic Winch
• Hydraulic Power Swing for Hopper
• Electric Power Swing for Hopper
• Right Angle Drive
• 540 RPM PTO Reverser
• 1000 RPM PTO Drive and Reverser
1.1.1. A
UGER
P
OWER
S
OURCE
The power source for the auger is a standard 540 RPM tractor PTO (see Figure
1.1). An optional Right-Angle PTO Drive kit allows the auger to be powered by a
tractor positioned at a 90 degree angle to the auger (Figure 1.2).
An optional 1000 RPM PTO Drive kit provides a speed reducer that allows use
with 1000 RPM PTO tractors, as well as reverser capability that is used to rotate
the auger flightings in the reverse direction (transferring grain in the auger tube
back to the hopper).
An optional 540 RPM Reverser kit provides a similar reverser capability for

540 RPM PTO connections.

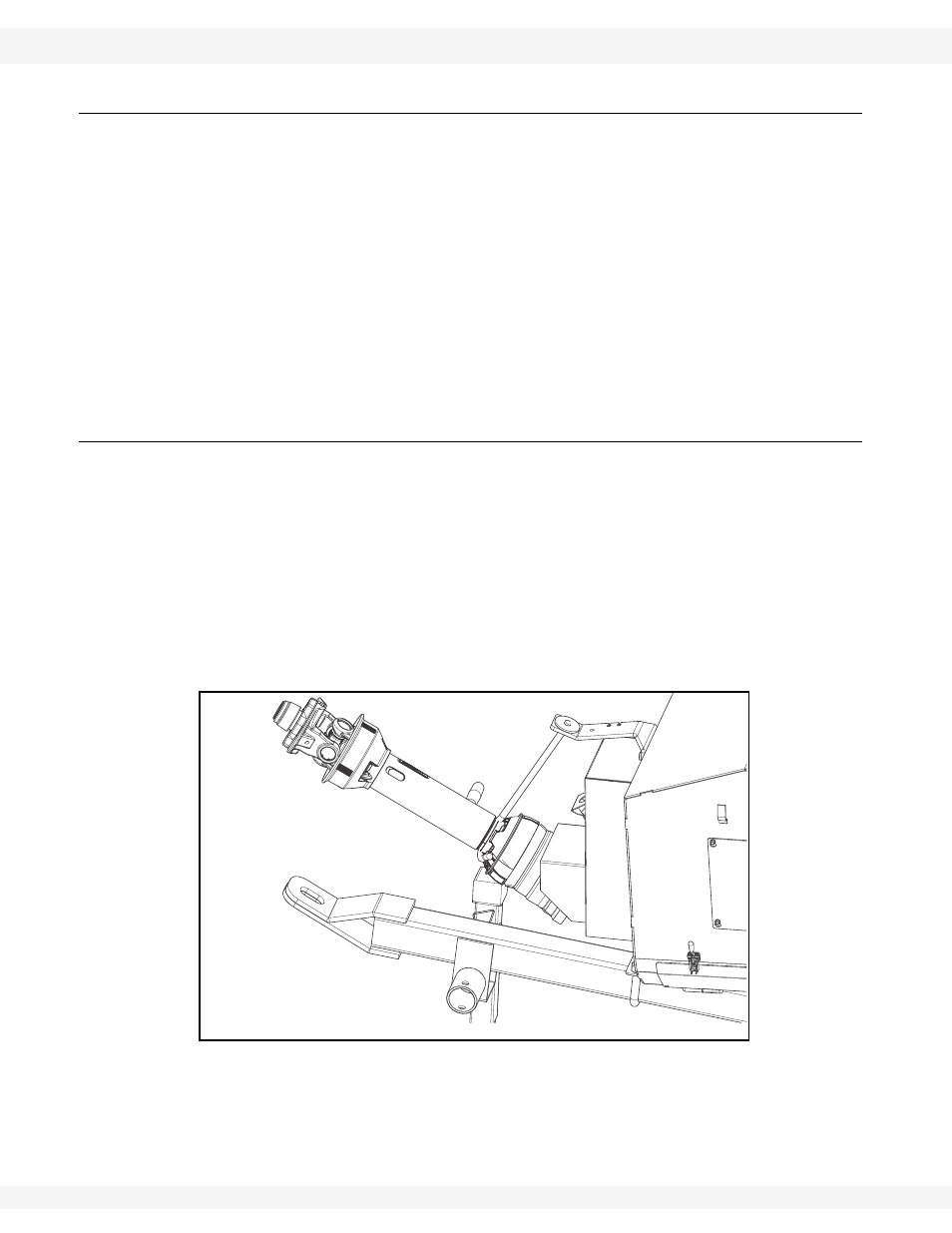

Figure 1.1 Standard PTO Driveline
