3.12. INSTALLING THE HYDRAULIC CYLINDERS
1. Position
the
cylinders on the cylinder lugs. The rod end of the cylinder must
be attached to the bowtie so that the rod extends towards the intake (Figure
3.31).
Note:
The cylinder ports must face each other.
2. Pin the cylinder in place using 1” x 3-3/8” cylinder pins and 1” external hitch
clips (see Figure 3.24).

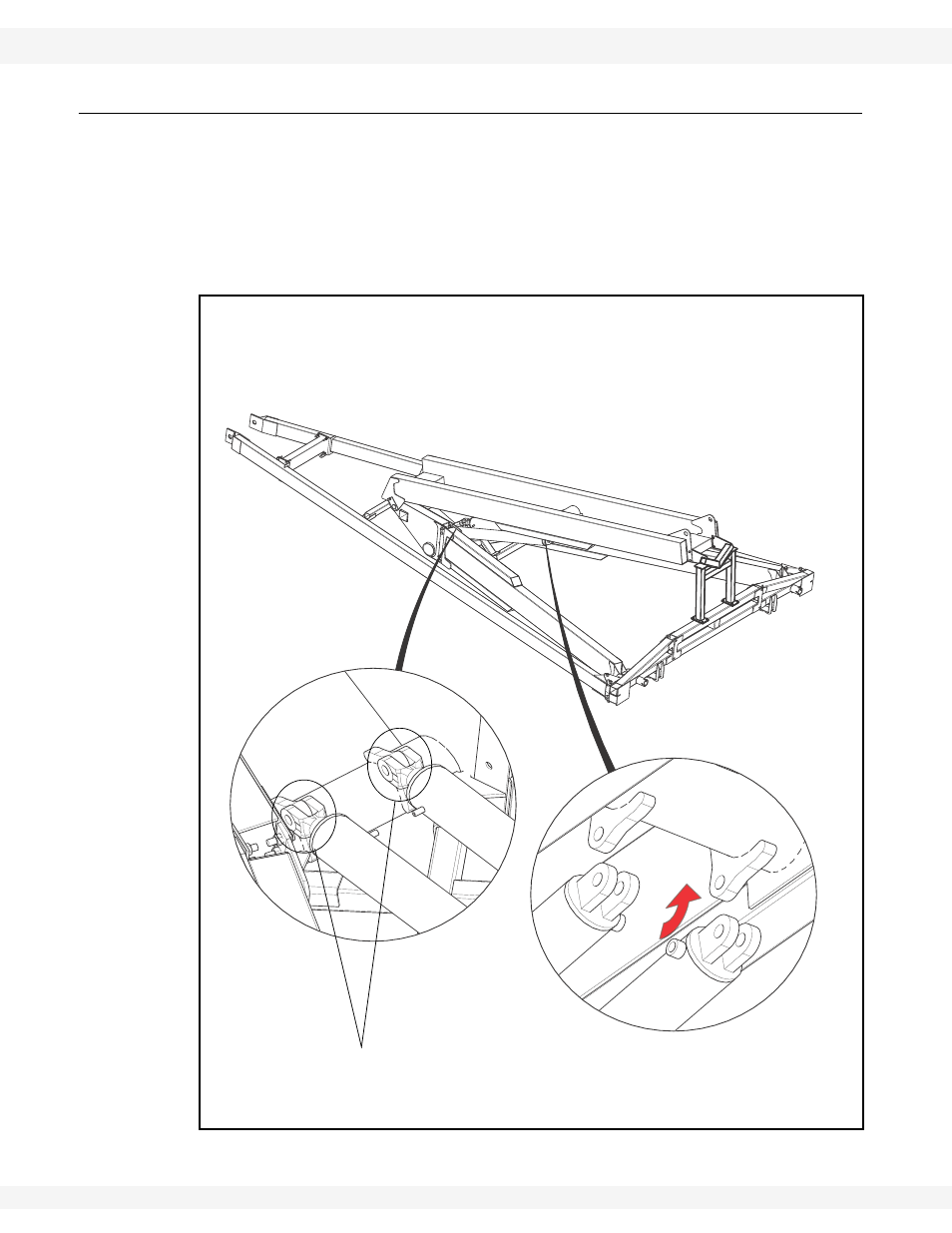

Figure 3.24 Installing Hydraulic Cylinders
SECURE WITH 1” X 3-3/8” CYLINDER PINS
AND 1” EXTERNAL HITCH CLIPS
