OPERATING FEATURES

Note: Components featured in the following instructions for assembling, operating or

maintaining the Counter-Balancer are underlined on their first appearance in each section.

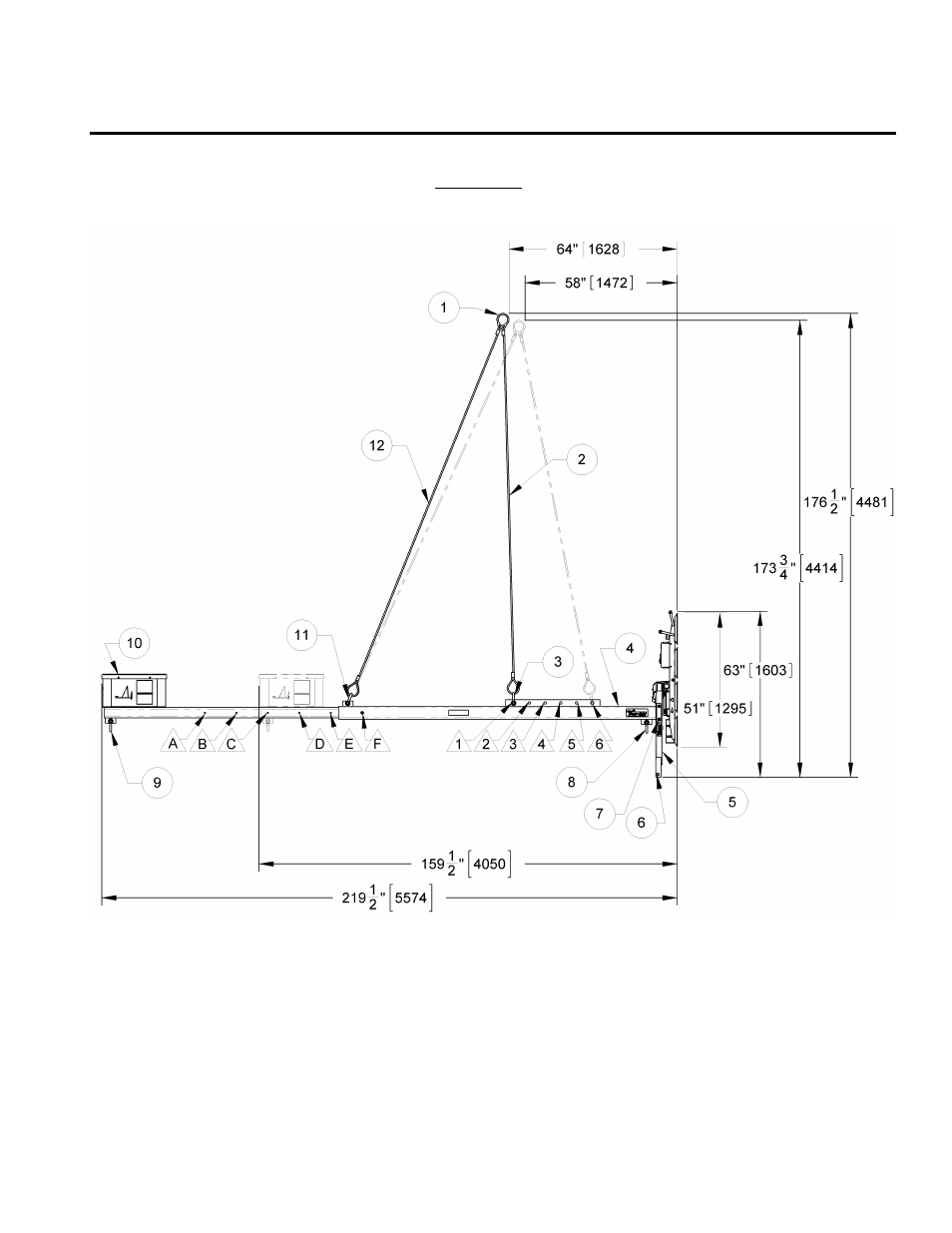

1 HOOK POINT

5 P2 CHANNEL LIFTER (inverted)

9 SHACKLE FOR CONTROL LINE #1

2 PRIMARY LIFT SLING (12 ft)

6 P2 LIFT SPOOL (alternate attachment

10 COUNTERWEIGHT ENCLOSURE on

3 PRIMARY LIFT SLING SHACKLE

point for CONTROL LINE #2)

ADJUSTABLE COUNTERWEIGHT ARM

4 MAIN SECTION

7 LIFTER ATTACHMENT BOLT (2x)

11 SECONDARY LIFT SLING SHACKLE

8 SHACKLE FOR CONTROL LINE #2

12 SECONDARY LIFT SLING (13 ft)
