Operating features – Wood’s Powr-Grip MRTALP6FS10TDC User Manual
Page 5
Rev 2.0/5-14
3
CF13CEO: #35178AFT
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, using or maintaining the
Pad Frame T-Arm Assemblies are underlined on their first appearance in each section.
Pad Frame T-Arm Assemblies

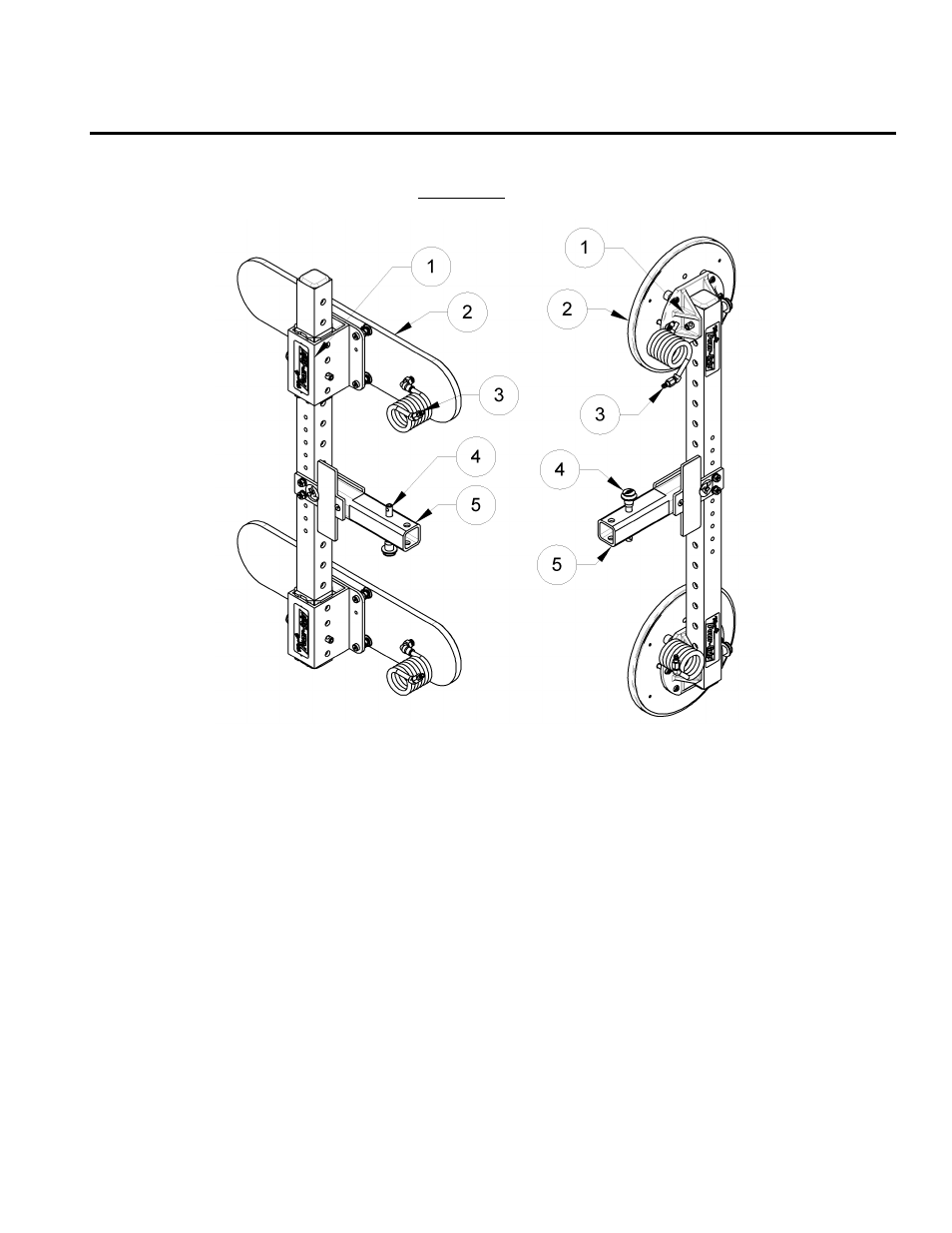

1 SLIDING / MOVABLE PAD MOUNT
3 MALE QUICK CONNECTOR
5 EXTENSION ARM
2 VACUUM PAD
4 COTTERLESS HITCH PIN
