Audio-Technica M3R - Manual (Page 15)

15 EN
) ) )
MIXER
Band Mix
Vocal 1
Vocal 2
Guitar
Left
(More Vocal 1)
M3R
Right
(More Band Mix)
SYSTEM 1
AMBIENT MICROPHONE
(optional)
Band + Vocal 1 Band + Vocal 1 ( ( ( ) ) ) ( ( (
Left
(More Guitar)
M3R
Right
(More Band Mix)
SYSTEM 3
AMBIENT MICROPHONE
(optional)
Band + Guitar ( ( ( Band + Guitar ) ) )
Left
(More Vocal 2)
M3R
Right
(More Band Mix)
SYSTEM 2
AMBIENT MICROPHONE
(optional)
M3T (SYSTEM 2)
M3T (SYSTEM 3)
M3T (SYSTEM 1)
Input L
/ 1
Input R
/ 2
Loop Out L
/ 1
Loop Out R
/ 2
Input L
/ 1
Input R
/ 2
Loop Out L
/ 1
Loop Out R
/ 2
Input L
/ 1
Input R
/ 2
Loop Out L
/ 1
Loop Out R
/ 2
Band + Vocal 2 Band + Vocal 2

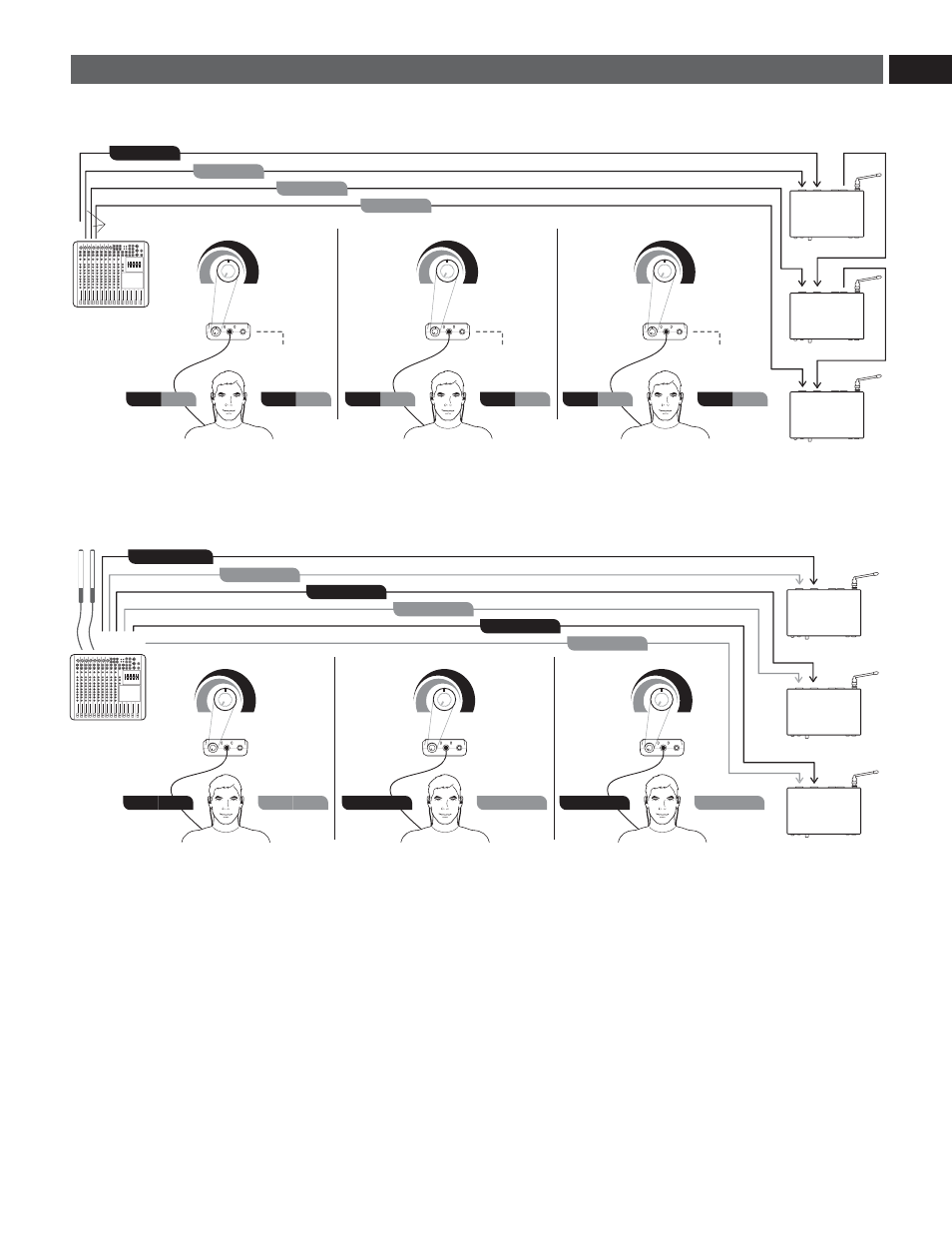

C. Advanced 2 Channel Set-up (Personal Mix Control Using Direct Outputs)
Aux
Direct Outputs
M3T CUSTOM MIX 2
(SYSTEM 2)
M3T CUSTOM MIX 3
(SYSTEM 3)
M3T CUSTOM MIX 1
(SYSTEM 1)
AMBIENT
MICROPHONES
) ) )
Input L
/1
Input R
/2
MIXER
Custom Mix 1 Right
Custom Mix 1 Left
Left
M3R
Right
SYSTEM 1
Custom Mix 1 Right Custom Mix 1 Left ( ( ( ) ) ) ( ( (
Left
M3R
Right
SYSTEM 3
( ( ( ) ) )
Left
M3R
Right
SYSTEM 2
Input L
/ 1
Input R
/ 2
Input L
/ 1
Input R
/ 2
Input L
/ 1
Input R
/ 2
D. Advanced 2 Channel Stereo Set-up Multiple Aux Sends and Ambient Audience Mics
Custom Mix 2 Right Custom Mix 2 Left Custom Mix 3 Right Custom Mix 3 Left
Custom Mix 2 Right
Custom Mix 2 Left
Custom Mix 3 Right
Custom Mix 3 Left
Aux 1 Aux 2 Aux 3 Aux 4 Aux 5 Aux 6
